Mitsubishi Multi-Zone 40500 BTU R-454B 20 SEER2 4-Zone Wall-Mounted Mini Split Heat Pump System - 9K+9K+15K+15K

Description

This comprehensive Mitsubishi Electric bundle is designed to provide optimal climate control for both residential and light commercial spaces. The MXZ-5D42NL outdoor condenser serves as the powerhouse, capable of supporting up to five zones, while the MSZ-GX09NL and MSZ-GX15NL wall-mounted air handlers ensure efficient heating and cooling in individual rooms. With advanced features such as built-in Wi-Fi, Econo Cool mode, and superior filtration systems, this bundle not only enhances comfort but also promotes energy efficiency and air quality.

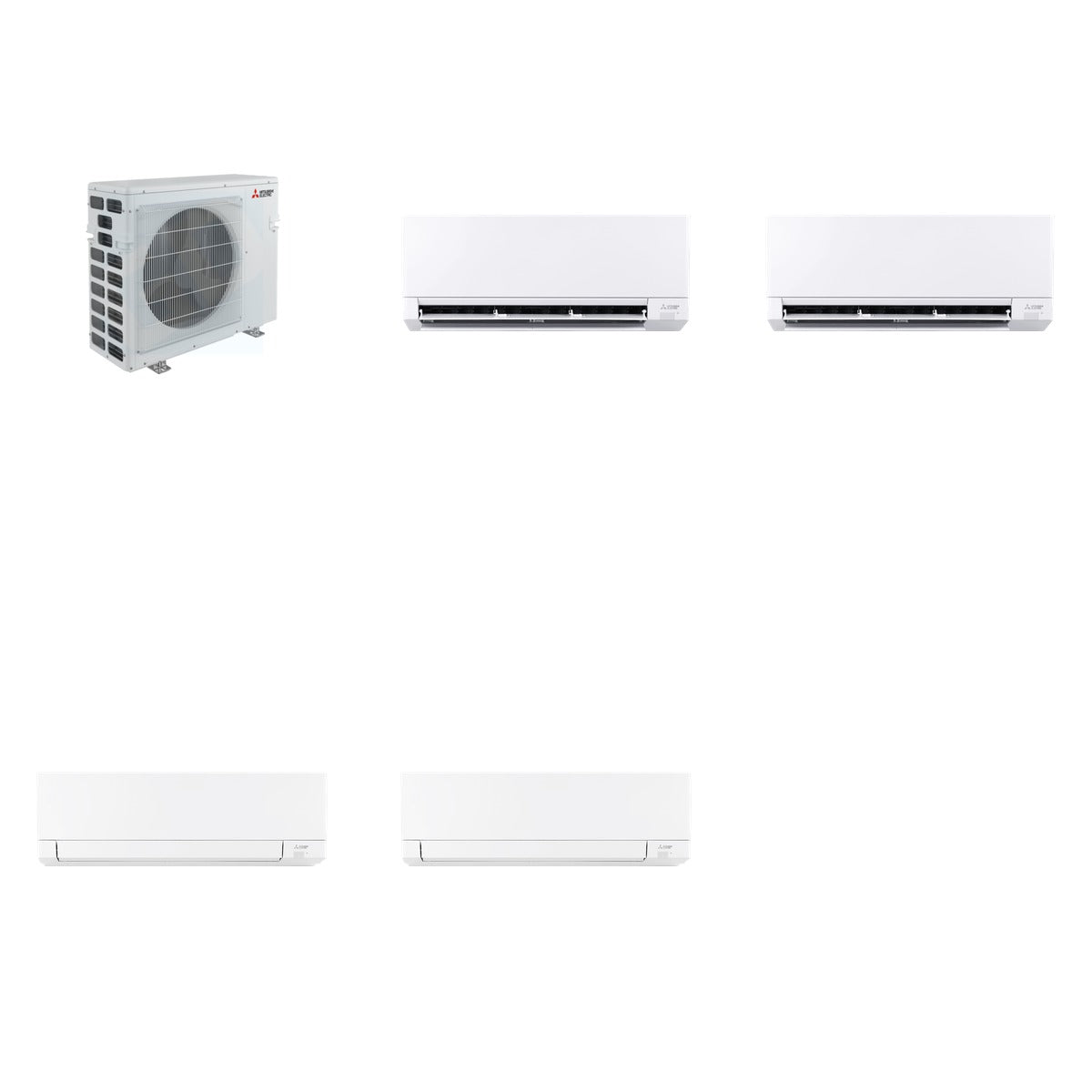

What's Included

• MITSUBISHI ELECTRIC MXZ-5D42NL - Mitsubishi Electric MXZ-5D42NL 42k BTU (3.5 Ton) M-Series Outdoor Condenser (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX09NL - Mitsubishi Electric MSZ-GX09NL R454B 9k BTU Heat Pump Wall Mount Air Handler (Qty x2)
• MITSUBISHI ELECTRIC MSZ-GX15NL - Mitsubishi Electric MSZ-GX15NL R454B 15k BTU Heat Pump Wall Mount Air Handler (Qty x2)

Key Details

• Weight of Bundle: 282 lb (Mitsubishi 194 lb + Mitsubishi 44 lb + Mitsubishi 44 lb)
• Cooling BTU: 43000
• Heating BTU: 53600
• SEER2: 19.3
• Voltage: 208/230V
• Max Breaker Size: 67 Amps
• Min Breaker Size: 39 Amps
• Sound Level: 19 dB to 59 dB
• Refrigerant Type: R-454B
• Zone Compatibility: Multi Zone
• Dimensions (H x W x D): 31.43 x 37.45 x 13 inches

Use & Compatibility

This bundle is ideal for multi-zone heating and cooling applications, providing efficient climate control for various spaces. It is compatible with Mitsubishi Electric's mini-split systems, making it an excellent choice for both new installations and upgrades.
