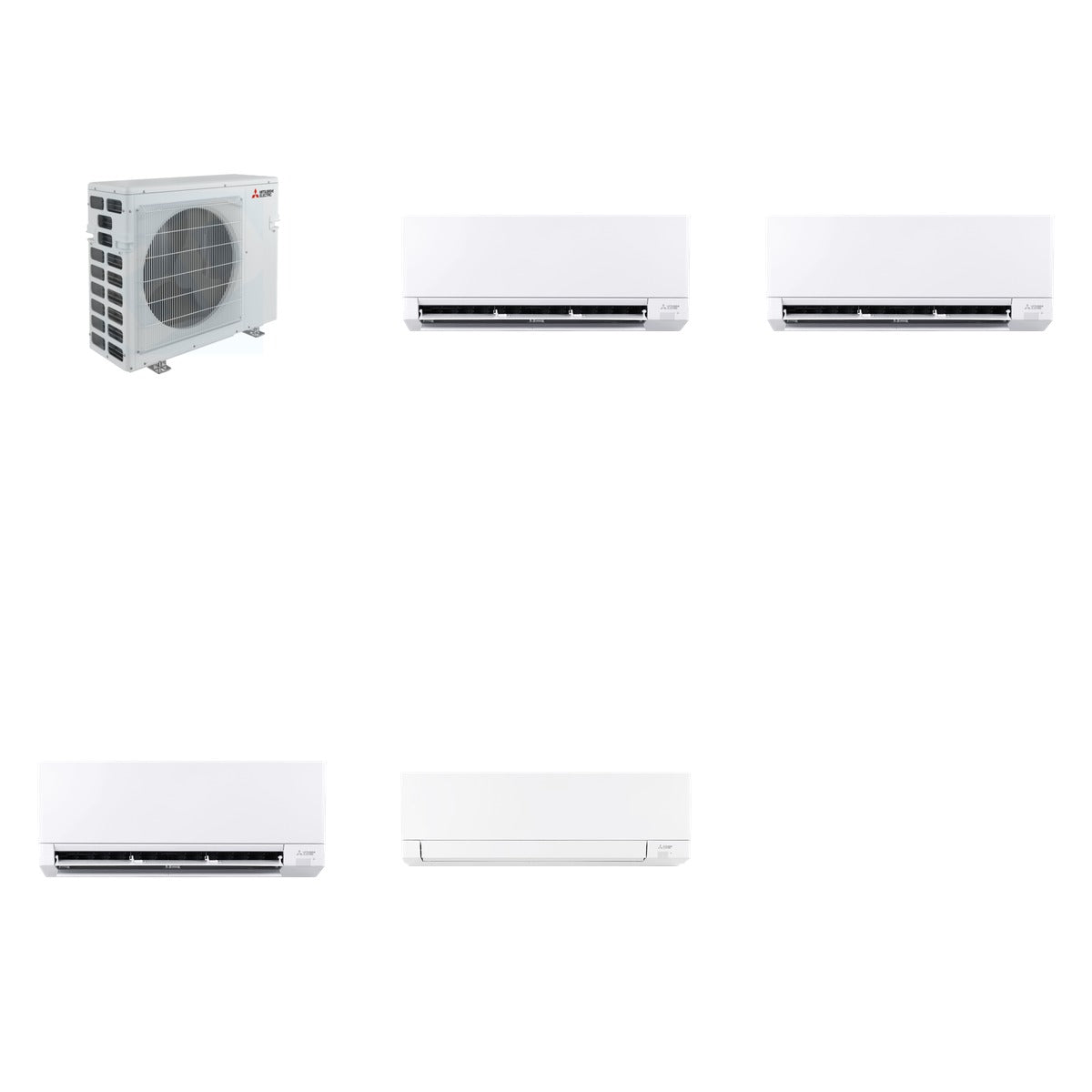

Mitsubishi Multi-Zone 40500 BTU R-454B 20 SEER2 4-Zone Wall-Mounted Mini Split Heat Pump System - 9K+9K+12K+15K

Description

This comprehensive HVAC bundle is designed to provide efficient climate control for both residential and light commercial spaces. Featuring the Mitsubishi Electric MXZ-5D42NL outdoor condenser, this system is capable of supporting up to five zones, ensuring optimal comfort tailored to different areas. The included MSZ-GX09NL, MSZ-GX12NL, and MSZ-GX15NL wall-mounted air handlers are equipped with advanced features such as built-in Wi-Fi, Econo Cool mode, and superior filtration systems to enhance air quality and energy efficiency. Together, these components create a powerful and versatile multi-zone heating and cooling solution.

What's Included

• MITSUBISHI ELECTRIC MXZ-5D42NL - Mitsubishi Electric MXZ-5D42NL 42k BTU (3.5 Ton) M-Series Outdoor Condenser (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX09NL - Mitsubishi Electric MSZ-GX09NL R454B 9k BTU Heat Pump Wall Mount Air Handler (Qty x2)
• MITSUBISHI ELECTRIC MSZ-GX12NL - Mitsubishi Electric MSZ-GX12NL R454B 12k BTU Heat Pump Wall Mount Air Handler (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX15NL - Mitsubishi Electric MSZ-GX15NL R454B 15k BTU Heat Pump Wall Mount Air Handler (Qty x1)

Key Details

• Weight of Bundle: 282 lb (Mitsubishi 194 lb + Mitsubishi 44 lb + Mitsubishi 22 lb + Mitsubishi 22 lb)
• Cooling BTU: 43000 (MXZ-5D42NL), 9000 (MSZ-GX09NL), 12000 (MSZ-GX12NL), 15000 (MSZ-GX15NL)
• Heating BTU: 53600 (MXZ-5D42NL), 10900 (MSZ-GX09NL), 14400 (MSZ-GX12NL), 18000 (MSZ-GX15NL)
• SEER2: 19.3 (MXZ-5D42NL), Up to 28.4 (MSZ-GX09NL, MSZ-GX12NL, MSZ-GX15NL)
• Refrigerant Type: R-454B
• Voltage: 208/230V
• Sound Level: 19 dB (MSZ-GX09NL), 19 dB (MSZ-GX12NL), 26 dB (MSZ-GX15NL)
• Dimensions: MXZ-5D42NL (31.43" x 37.45" x 13"), MSZ-GX09NL (11.77" x 31.39" x 9.65"), MSZ-GX12NL (11.77" x 31.39" x 9.65"), MSZ-GX15NL (11.77" x 31.40" x 9.65")

Use & Compatibility

This bundle is ideal for multi-zone heating and cooling applications, making it suitable for both residential and light commercial use. The outdoor condenser is compatible with the included wall-mounted air handlers, allowing for flexible installation and efficient temperature control across multiple zones.
