Mitsubishi Multi-Zone 40500 BTU R-454B 20 SEER2 4-Zone 2'x2' Ceiling Cassette Mini Split Heat Pump System - 9K+9K+9K+9K

Description

This comprehensive bundle features essential components for an efficient multi-zone heating and cooling system. The Mitsubishi Electric MXZ-5D42NL outdoor condenser serves as the powerhouse, delivering 42,000 BTU of cooling and 53,600 BTU of heating, making it ideal for both residential and light commercial applications. Paired with four SLZ-AF09NL indoor units, this setup allows for customizable climate control across different zones, ensuring comfort in every corner of your space. Each indoor unit is designed for ceiling installation and includes adjustable vents for optimal airflow, while the SLP-18FAU grille complements the indoor units for seamless integration. Together, these components create a robust and efficient HVAC solution.

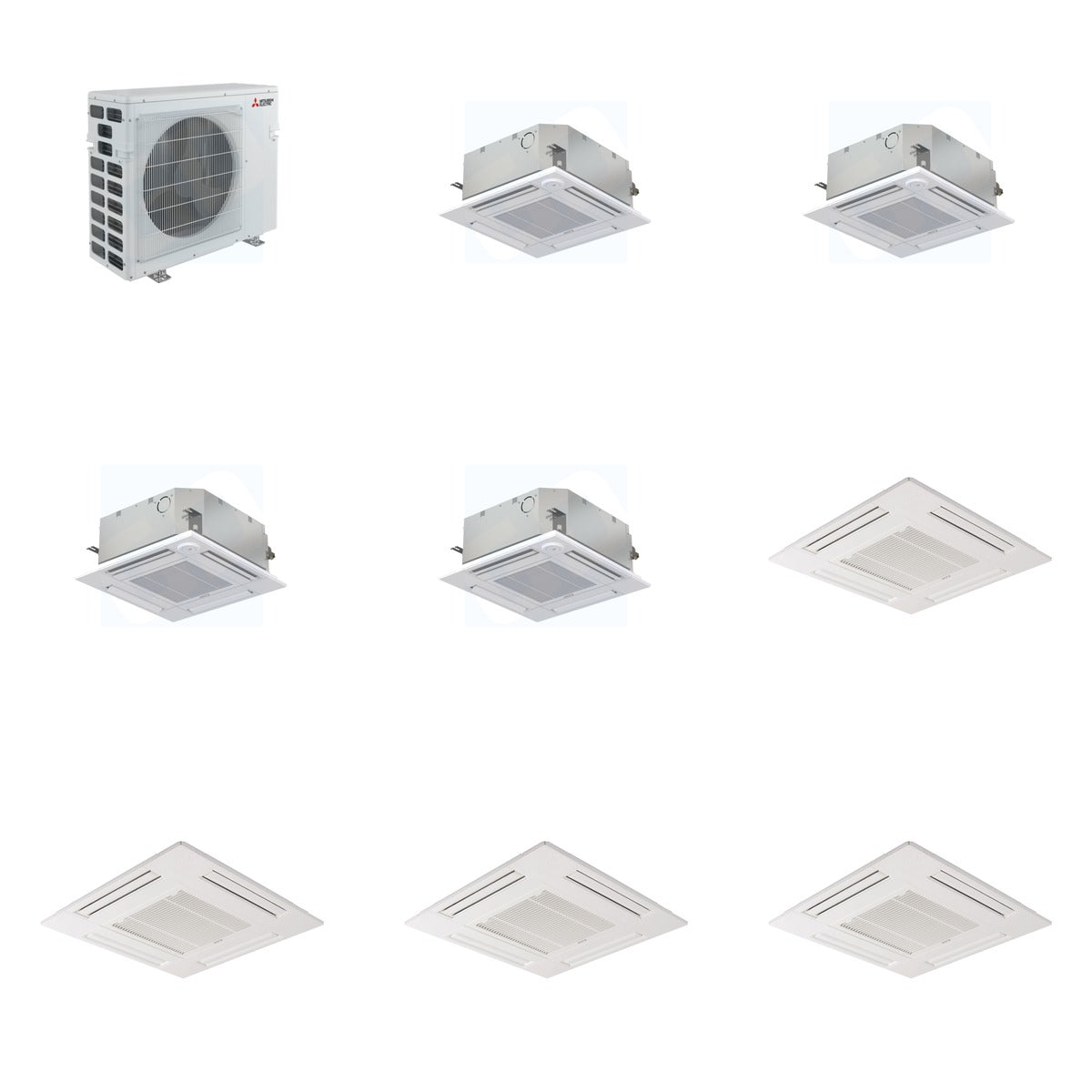

What's Included

• MITSUBISHI ELECTRIC MXZ-5D42NL - Mitsubishi Electric MXZ-5D42NL 42k BTU (3.5 Ton) M-Series Outdoor Condenser (Qty x1)
• MITSUBISHI ELECTRIC SLZ-AF09NL - Mitsubishi Electric SLZ-AF09NL M-Series - Multi or Single-Zone - 9k BTU - R-454B (Qty x4)

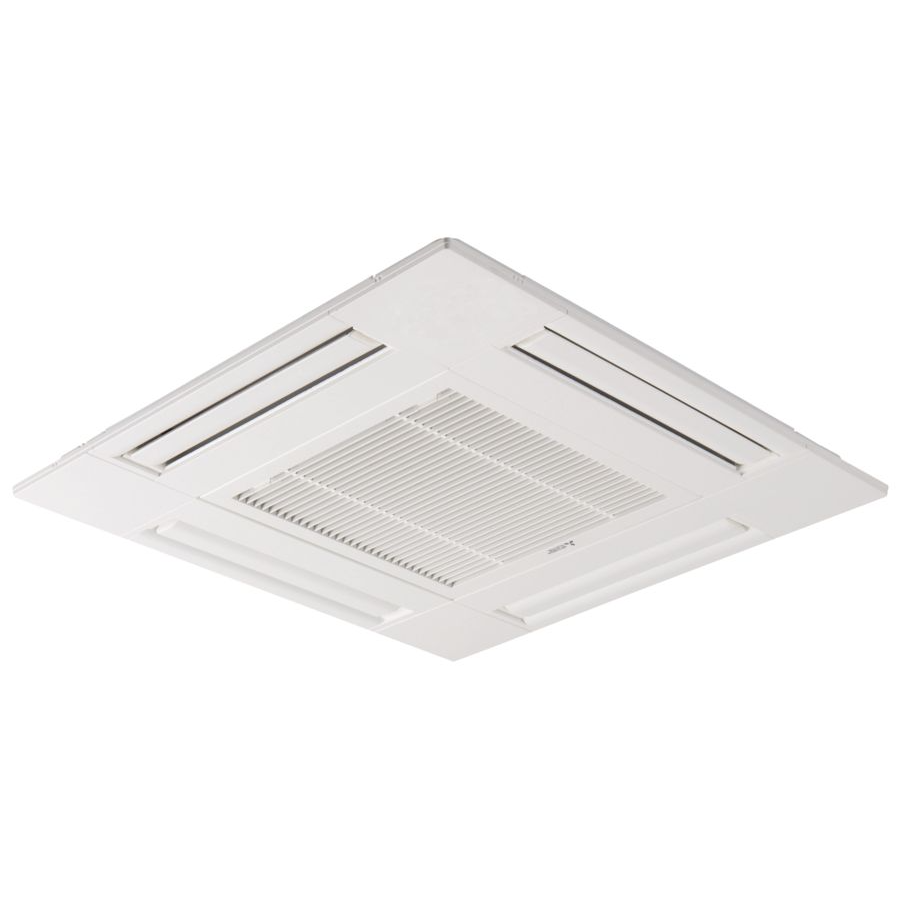

• MITSUBISHI ELECTRIC SLP-18FAU - Mitsubishi Electric SLP-18FAU - (Grille for SLZ-AF Series) (Qty x4)

Key Details

• Weight of Bundle: 354 lb (Mitsubishi 194 lb + Mitsubishi 132 lb + Mitsubishi 28 lb)
• Cooling BTU: 43000
• Heating BTU: 53600
• SEER2: 19.3
• Voltage: 208/230V
• Compressor Type: Twin Rotary
• Indoor Unit Cooling Capacity: 9000 BTU
• Indoor Unit Heating Capacity: 12000 BTU
• Sound Level: 25 dB (minimum)
• Dimensions (Outdoor Unit): 31.43" H x 37.45" W x 13" D
• Dimensions (Indoor Unit): 8.19" H x 22.44" W x 22.44" D

Use & Compatibility

This bundle is designed for efficient heating and cooling in multi-zone applications. The outdoor condenser is compatible with up to five indoor units, making it suitable for both residential and light commercial systems. The indoor units can be installed in standard ceiling grids, providing a discreet and effective climate control solution.
