Mitsubishi Multi-Zone 40500 BTU R-454B 20 SEER2 4-Zone 2'x2' Ceiling Cassette Mini Split Heat Pump System - 9K+9K+9K+15K

Description

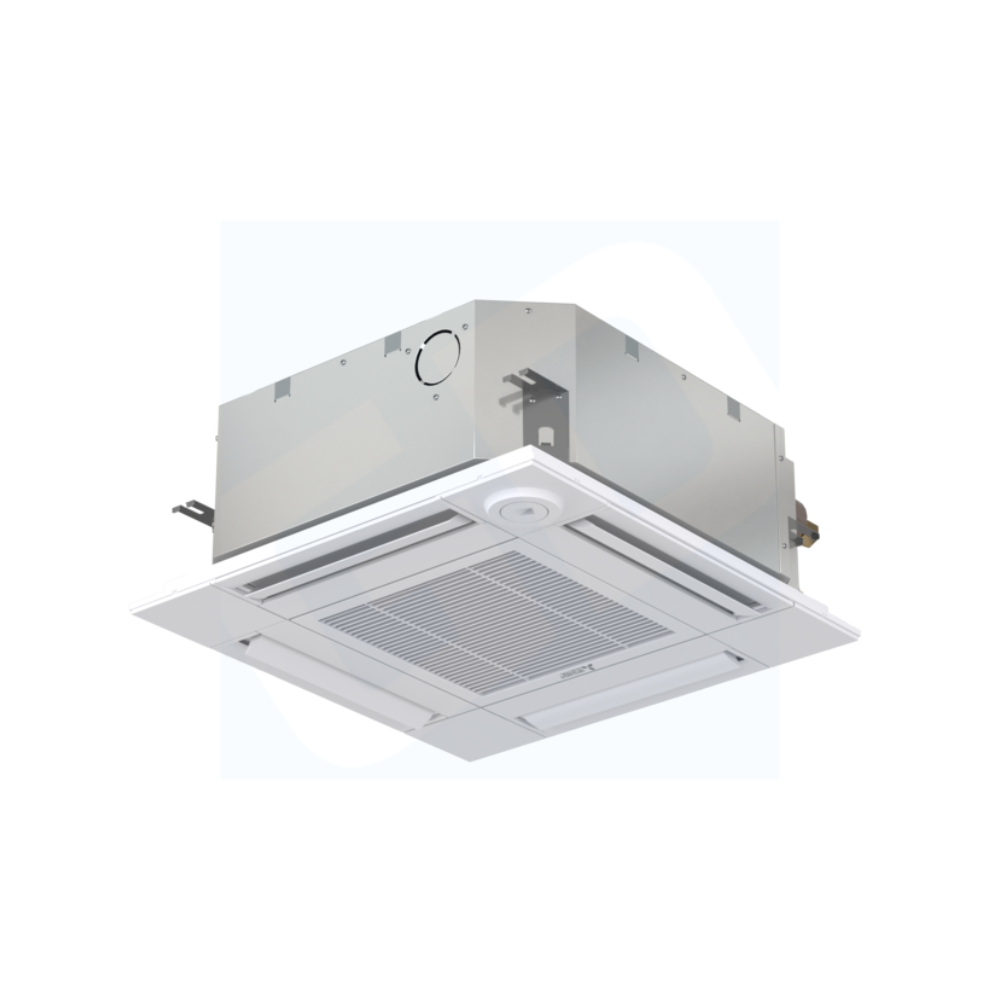

This comprehensive Mitsubishi Electric bundle is designed to provide efficient heating and cooling solutions for both residential and light commercial spaces. Featuring the MXZ-5D42NL outdoor condenser, which supports up to five indoor units, this package includes a combination of ceiling cassette units (SLZ-AF09NL and SLZ-AF15NL) that fit seamlessly into standard ceiling grids. With adjustable airflow patterns and built-in condensate lift mechanisms, these units ensure optimal climate control tailored to your needs. The included SLP-18FAU grilles complete the installation, allowing for effective air distribution and enhancing the overall performance of the system.

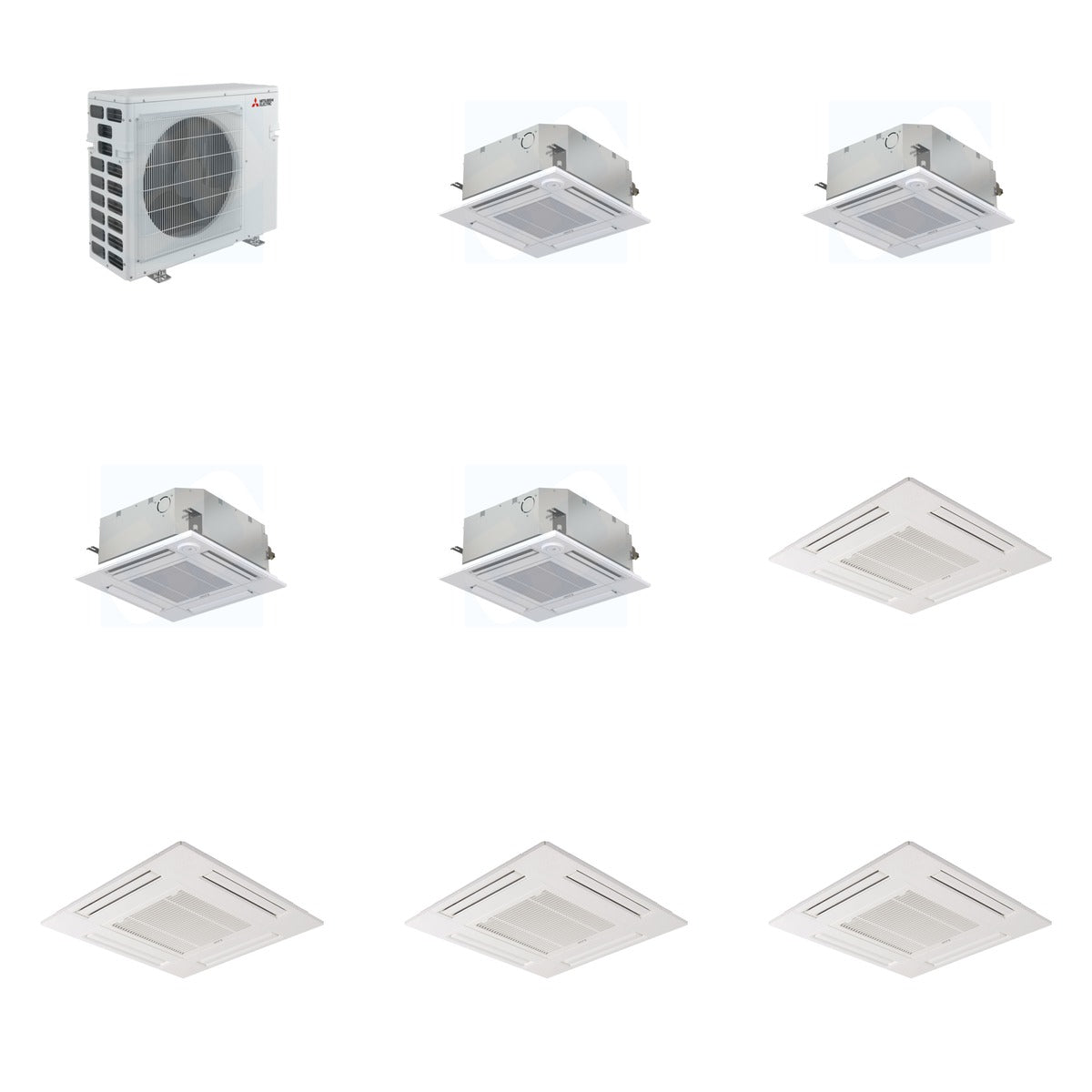

What's Included

• MITSUBISHI ELECTRIC MXZ-5D42NL - 42k BTU M-Series Outdoor Condenser (Qty x1)
• MITSUBISHI ELECTRIC SLZ-AF09NL - 9k BTU Indoor Unit (Qty x3)
• MITSUBISHI ELECTRIC SLZ-AF15NL - 15k BTU Indoor Unit (Qty x1)
• MITSUBISHI ELECTRIC SLP-18FAU - Grille for SLZ-AF Series (Qty x4)

Key Details

• Weight of Bundle: 354 lb (Mitsubishi 194 lb + Mitsubishi 99 lb + Mitsubishi 33 lb + Mitsubishi 28 lb)
• Cooling BTU: 43000
• Heating BTU: 53600
• SEER2: 19.3
• Voltage: 208/230V
• Max Breaker Size: 67 Amps
• Min Breaker Size: 39 Amps
• Indoor Unit Sound Levels: 25 dB - 39 dB
• Dimensions (MXZ-5D42NL): 31.43" H x 37.45" W x 13" D
• Dimensions (SLZ-AF09NL & SLZ-AF15NL): 8 3/16" H x 22 7/16" W x 22 7/16" D

Use & Compatibility

This bundle is ideal for multi-zone heating and cooling applications, providing flexibility and comfort across different spaces. The outdoor condenser is compatible with the included indoor units, making it a perfect choice for both residential and light commercial installations.
