Mitsubishi Multi-Zone 40500 BTU R-454B 20 SEER2 4-Zone 2'x2' Ceiling Cassette Mini Split Heat Pump System - 9K+12K+12K+15K

Description

This comprehensive Mitsubishi Electric bundle is designed to provide efficient heating and cooling solutions for both residential and light commercial applications. The MXZ-5D42NL outdoor condenser works seamlessly with multiple indoor units, allowing for customized climate control across five zones. The included SLZ-AF09NL, SLZ-AF12NL, and SLZ-AF15NL indoor units are perfect for ceiling installation, offering versatile airflow options and built-in condensate lift mechanisms. Together, these components ensure optimal comfort and energy efficiency, making them an ideal choice for any space requiring reliable climate management.

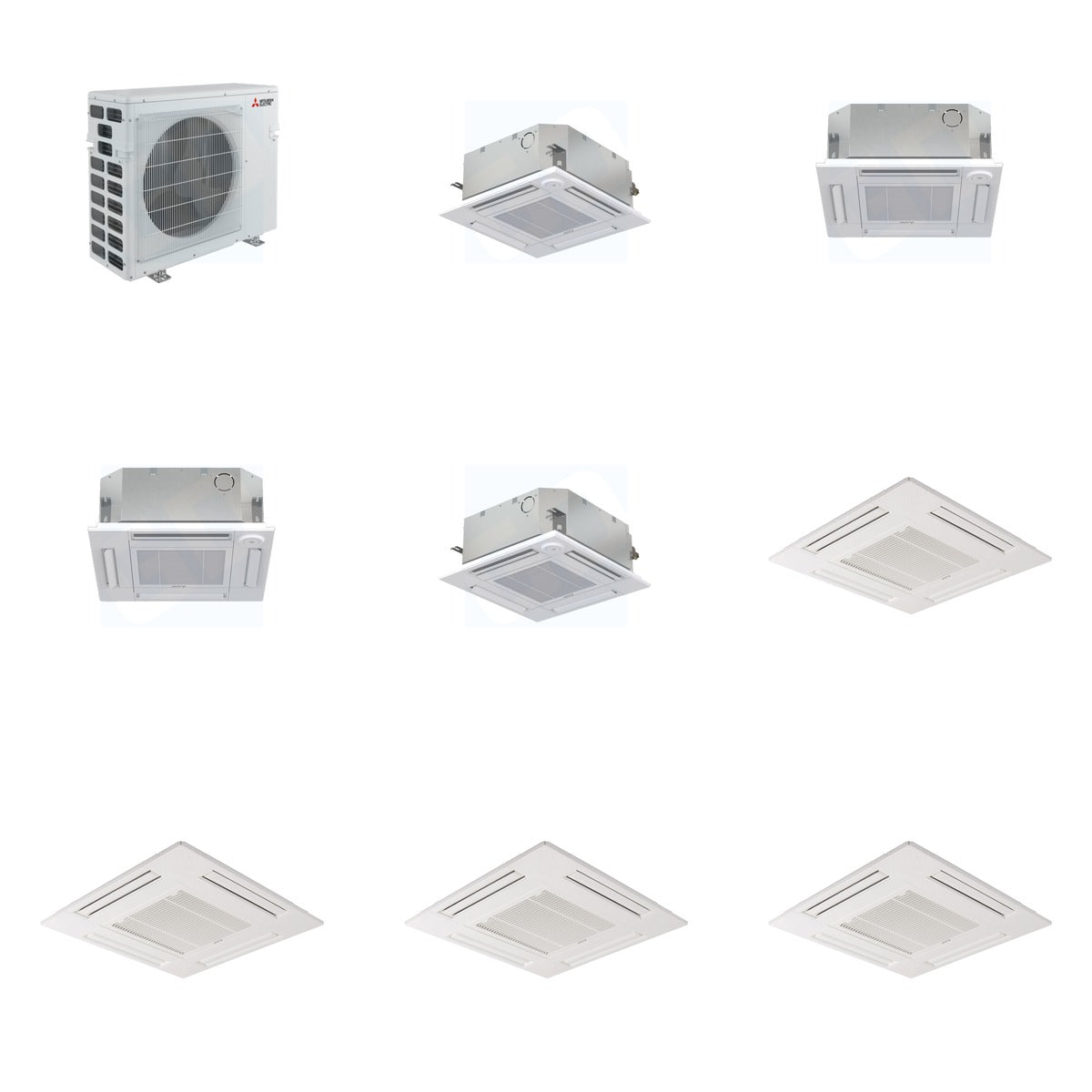

What's Included

• MITSUBISHI ELECTRIC MXZ-5D42NL - Mitsubishi Electric MXZ-5D42NL 42k BTU (3.5 Ton) M-Series Outdoor Condenser up to 5 Zones (Qty x1)
• MITSUBISHI ELECTRIC SLZ-AF09NL - Mitsubishi Electric SLZ-AF09NL M-Series - Multi or Single-Zone - 9k BTU - R-454B (Qty x1)
• MITSUBISHI ELECTRIC SLZ-AF12NL - Mitsubishi Electric SLZ-AF12NL M-Series - Multi or Single-Zone - 12k BTU - R-454B (Qty x2)
• MITSUBISHI ELECTRIC SLZ-AF15NL - Mitsubishi Electric SLZ-AF15NL M-Series - Multi or Single-Zone - 15k BTU - R-454B (Qty x1)
• MITSUBISHI ELECTRIC SLP-18FAU - Mitsubishi Electric SLP-18FAU - (Grille for SLZ-AF Series) (Qty x4)

Key Details

• Weight of Bundle: 354 lb (Mitsubishi 194 lb + Mitsubishi 33 lb + Mitsubishi 66 lb + Mitsubishi 33 lb + Mitsubishi 28 lb)
• Cooling Capacity: 42,000 BTU (MXZ-5D42NL), 9,000 BTU (SLZ-AF09NL), 12,000 BTU (SLZ-AF12NL), 15,000 BTU (SLZ-AF15NL)
• Heating Capacity: 53,600 BTU (MXZ-5D42NL), 12,000 BTU (SLZ-AF09NL), 15,000 BTU (SLZ-AF12NL), 18,000 BTU (SLZ-AF15NL)
• SEER2: 19.3 (MXZ-5D42NL)
• Refrigerant Type: R-454B
• Voltage: 208/230V
• Sound Level: 25 dB (SLZ-AF09NL) to 59 dB (MXZ-5D42NL)
• Dimensions: MXZ-5D42NL (31.43 x 37.45 x 13 inches), SLZ-AF09NL (8.19 x 22.44 x 22.44 inches), SLZ-AF12NL (8.25 x 22.44 x 22.44 inches), SLZ-AF15NL (8.19 x 22.44 x 22.44 inches)

Use & Compatibility

This bundle is designed for multi-zone heating and cooling applications, making it suitable for various residential and light commercial environments. The outdoor condenser is compatible with up to five indoor units, allowing for tailored comfort in different areas. The indoor units are ideal for ceiling installation and can be used in conjunction with standard two by two ceiling grids.
