Mitsubishi Multi-Zone 40500 BTU R-454B 20 SEER2 3-Zone Wall-Mounted Mini Split Heat Pump System - 9K+15K+24K

Description

The Mitsubishi Electric HVAC bundle is designed to provide optimal climate control for both residential and light commercial spaces. This comprehensive set includes a powerful 42k BTU outdoor condenser and three efficient wall-mounted air handlers, ensuring seamless heating and cooling across multiple zones. With advanced features such as built-in Wi-Fi, Econo Cool mode, and superior filtration systems, this bundle not only enhances comfort but also promotes energy efficiency. The combination of these high-performance units makes it an ideal choice for those looking to upgrade their HVAC systems while enjoying modern conveniences.

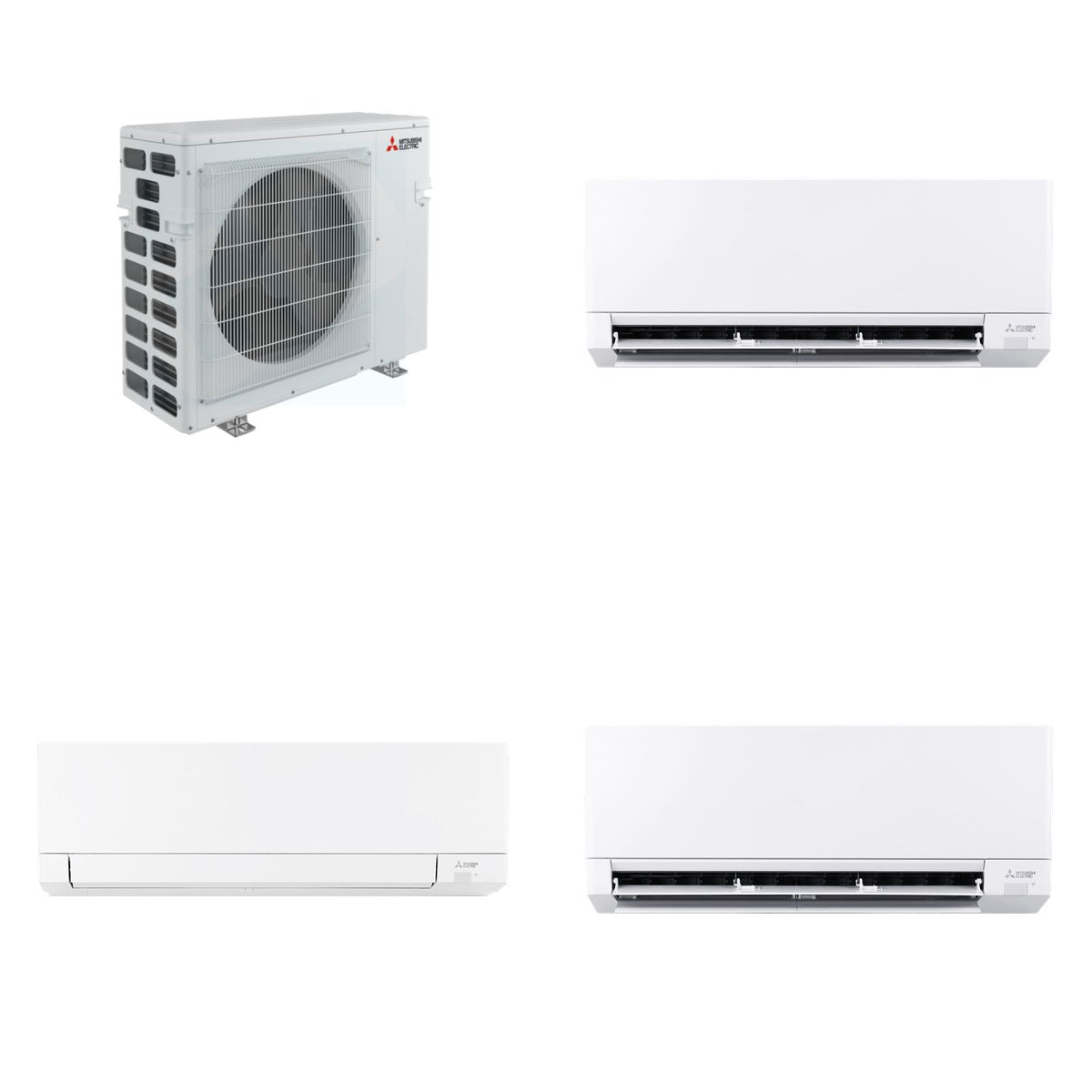

What's Included

• MITSUBISHI ELECTRIC MXZ-5D42NL - Mitsubishi Electric MXZ-5D42NL 42k BTU (3.5 Ton) M-Series Outdoor Condenser (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX09NL - Mitsubishi Electric MSZ-GX09NL R454B 9k BTU Heat Pump Wall Mount Air Handler (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX15NL - Mitsubishi Electric MSZ-GX15NL R454B 15k BTU Heat Pump Wall Mount Air Handler (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX24NL - Mitsubishi Electric MSZ-GX24NL R454B 24k BTU Heat Pump Wall Mount Air Handler (Qty x1)

Key Details

• Weight of Bundle: 266 lb (Mitsubishi 194 lb + Mitsubishi 22 lb + Mitsubishi 22 lb + Mitsubishi 28 lb)
• Cooling Capacity: 42,000 BTU (MXZ-5D42NL), 9,000 BTU (MSZ-GX09NL), 15,000 BTU (MSZ-GX15NL), 24,000 BTU (MSZ-GX24NL)
• Heating Capacity: 53,600 BTU (MXZ-5D42NL), 10,900 BTU (MSZ-GX09NL), 18,000 BTU (MSZ-GX15NL), 27,600 BTU (MSZ-GX24NL)
• SEER2: Up to 28.4 (MSZ-GX09NL, MSZ-GX15NL, MSZ-GX24NL)
• Refrigerant Type: R-454B
• Voltage: 208/230V
• Sound Level: As low as 19 dB (MSZ-GX09NL)
• Dimensions: Vary by unit, with outdoor condenser measuring 31.43 x 37.45 x 13 inches

Use & Compatibility

This bundle is intended for multi-zone heating and cooling applications, making it suitable for homes and light commercial spaces. The outdoor condenser can support up to five indoor units, allowing for customized climate control in different areas. Each wall-mounted air handler is compatible with the Mitsubishi Electric mini-split systems, ensuring seamless integration and optimal performance.
