Mitsubishi Multi-Zone 40500 BTU R-454B 20 SEER2 3-Zone Wall-Mounted Hyper Heat Mini Split Heat Pump System - 6K+6K+15K

Description

This comprehensive HVAC bundle features top-of-the-line Mitsubishi Electric products, designed to provide efficient heating and cooling solutions for both residential and light commercial applications. The MXZ-5D42NL outdoor condenser serves as the powerhouse, supporting up to five indoor units for customizable climate control across multiple zones. Complementing this unit are two wall-mounted air handlers, the MSZ-FX06NL and MSZ-FX15NL, which deliver exceptional performance and advanced features such as built-in Wi-Fi, advanced filtration, and whisper-quiet operation. Together, these components create a robust and versatile system that ensures optimal comfort in any environment.

What's Included

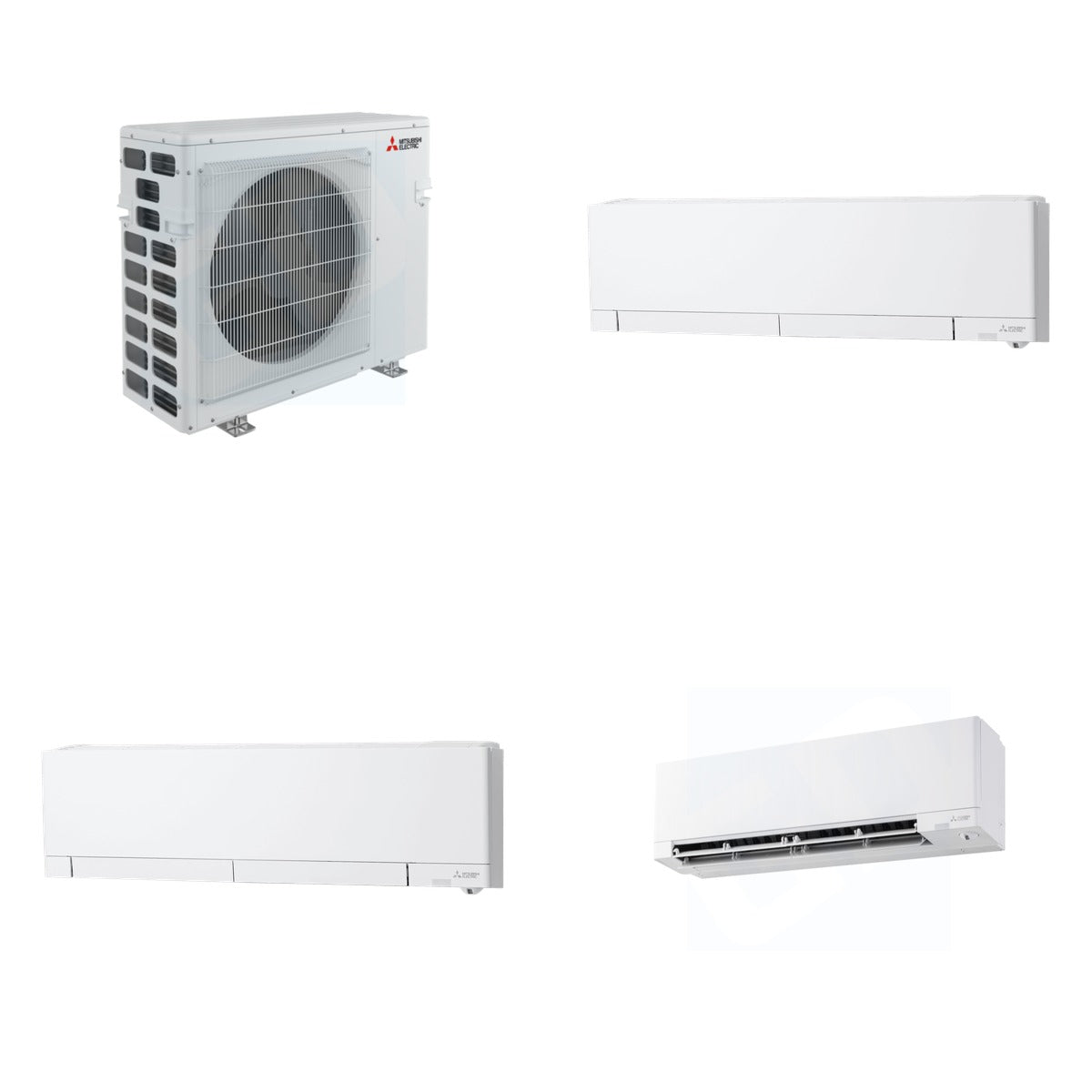

• MITSUBISHI ELECTRIC MXZ-5D42NL - Mitsubishi Electric MXZ-5D42NL 42k BTU (3.5 Ton) M-Series Outdoor Condenser up to 5 Zones (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX06NL - Mitsubishi Electric MSZ-FX06NL FX-Series Wall Mounted Unit 6k BTU Hyper Heat Air Handler (Qty x2)
• MITSUBISHI ELECTRIC MSZ-FX15NL - Mitsubishi Electric MSZ-FX15NL FX-Series Wall Mounted Unit 15k BTU Hyper Heat Air Handler (Qty x1)

Key Details

• Weight of Bundle: 288.4 lb (Mitsubishi 194 lb + Mitsubishi 58 lb + Mitsubishi 36.4 lb)
• Cooling Capacity: 42,000 BTU (MXZ-5D42NL), 6,000 BTU (MSZ-FX06NL), 15,000 BTU (MSZ-FX15NL)
• Heating Capacity: 53,600 BTU (MXZ-5D42NL), 9,000 BTU (MSZ-FX06NL), 18,000 BTU (MSZ-FX15NL)
• SEER2 Rating: 19.3 (MXZ-5D42NL), Up to 35 (MSZ-FX06NL), Up to 20.0 (MSZ-FX15NL)
• Refrigerant Type: R-454B
• Voltage: 208/230V
• Sound Level: 20-59 dB(A)
• Dimensions: MXZ-5D42NL (31.43" H x 37.45" W x 13" D), MSZ-FX06NL (12" H x 39.27" W x 9.75" D), MSZ-FX15NL (12" H x 39-9/32" W x 9-3/4" D)

Use & Compatibility

This bundle is ideal for creating a multi-zone heating and cooling system in residential or light commercial spaces. The MXZ-5D42NL outdoor condenser is compatible with the MSZ-FX06NL and MSZ-FX15NL indoor units, allowing for tailored climate control in various rooms. The advanced features of each unit, including Wi-Fi connectivity and efficient operation, make them suitable for modern living environments.
