Mitsubishi Multi-Zone 40500 BTU R-454B 20 SEER2 3-Zone 2'x2' Ceiling Cassette Mini Split Heat Pump System - 9K+12K+12K

Description

The Mitsubishi Electric HVAC bundle offers a comprehensive solution for multi-zone heating and cooling needs. This package includes a powerful outdoor condenser, efficient indoor air handlers, and necessary grille components, all designed to work seamlessly together. The MXZ-5D42NL outdoor unit can support up to five zones, while the SLZ-AF09NL and SLZ-AF12NL indoor units provide flexible installation options and customizable airflow. With advanced features like variable speed compressors and built-in condensate lift mechanisms, this bundle ensures optimal comfort and energy efficiency for both residential and light commercial applications.

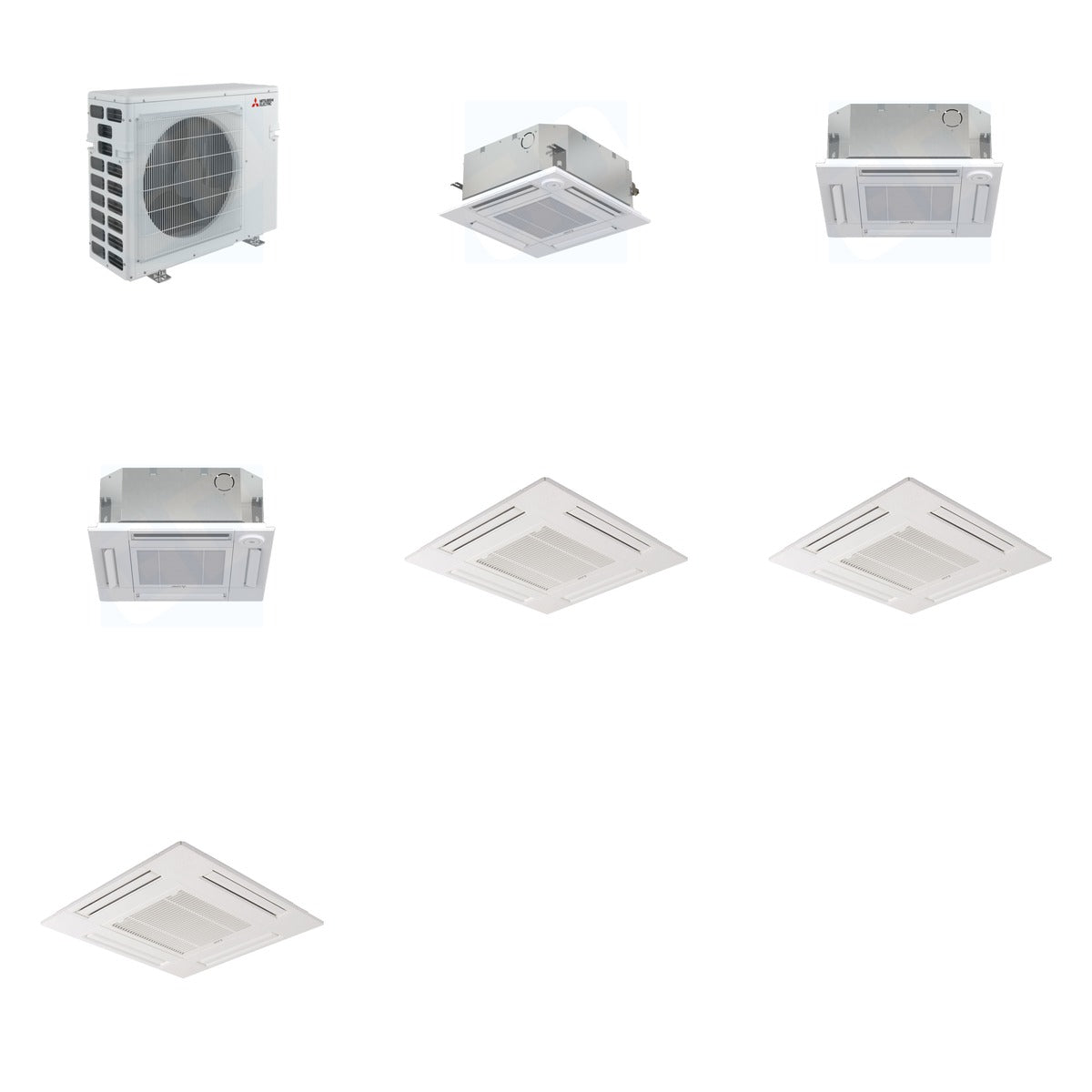

What's Included

• MITSUBISHI ELECTRIC MXZ-5D42NL - Mitsubishi Electric MXZ-5D42NL 42k BTU (3.5 Ton) M-Series Outdoor Condenser up to 5 Zones (Qty x1)
• MITSUBISHI ELECTRIC SLZ-AF09NL - Mitsubishi Electric SLZ-AF09NL M-Series - Multi or Single-Zone - 9k BTU - R-454B (Grille not included - SLP-18FAU) (Qty x1)
• MITSUBISHI ELECTRIC SLZ-AF12NL - Mitsubishi Electric SLZ-AF12NL M-Series - Multi or Single-Zone - 12k BTU - R-454B (Grille not included - SLP-18FAU) (Qty x2)
• MITSUBISHI ELECTRIC SLP-18FAU - Mitsubishi Electric SLP-18FAU - (Grille for SLZ-AF Series) (Qty x3)

Key Details

• Weight of Bundle: 314 lb (Mitsubishi 194 lb + Mitsubishi 33 lb + Mitsubishi 66 lb + Mitsubishi 21 lb)
• Cooling BTU: 43000
• Heating BTU: 53600
• SEER2: 19.3
• Refrigerant Type: R-454B
• Voltage: 208/230V
• Dimensions (Outdoor Unit): 31.43 x 37.45 x 13 inches
• Dimensions (Indoor Units): 22-7/16 x 22-7/16 x 8-4/16 inches
• Sound Level (Indoor Units): 25-31 dB

Use & Compatibility

This bundle is designed for efficient heating and cooling in multi-zone applications, making it ideal for both residential and light commercial spaces. The outdoor condenser is compatible with multiple indoor units, allowing for flexible installation and tailored climate control in various areas.
