Mitsubishi Multi-Zone 40500 BTU R-454B 20 SEER2 3-Zone 2'x2' Ceiling Cassette Mini Split Heat Pump System - 12K+12K+15K

Description

This comprehensive HVAC bundle includes essential components for efficient multi-zone heating and cooling. The Mitsubishi Electric MXZ-5D42NL outdoor condenser serves as the powerhouse, capable of supporting up to five indoor units, making it ideal for both residential and light commercial applications. Complementing this unit are two ceiling-mounted air handlers, the SLZ-AF12NL and SLZ-AF15NL, which provide versatile climate control options. The included SLP-18FAU grilles ensure optimal air distribution, enhancing comfort throughout the space. Together, these products create a cohesive system designed for energy efficiency and superior performance.

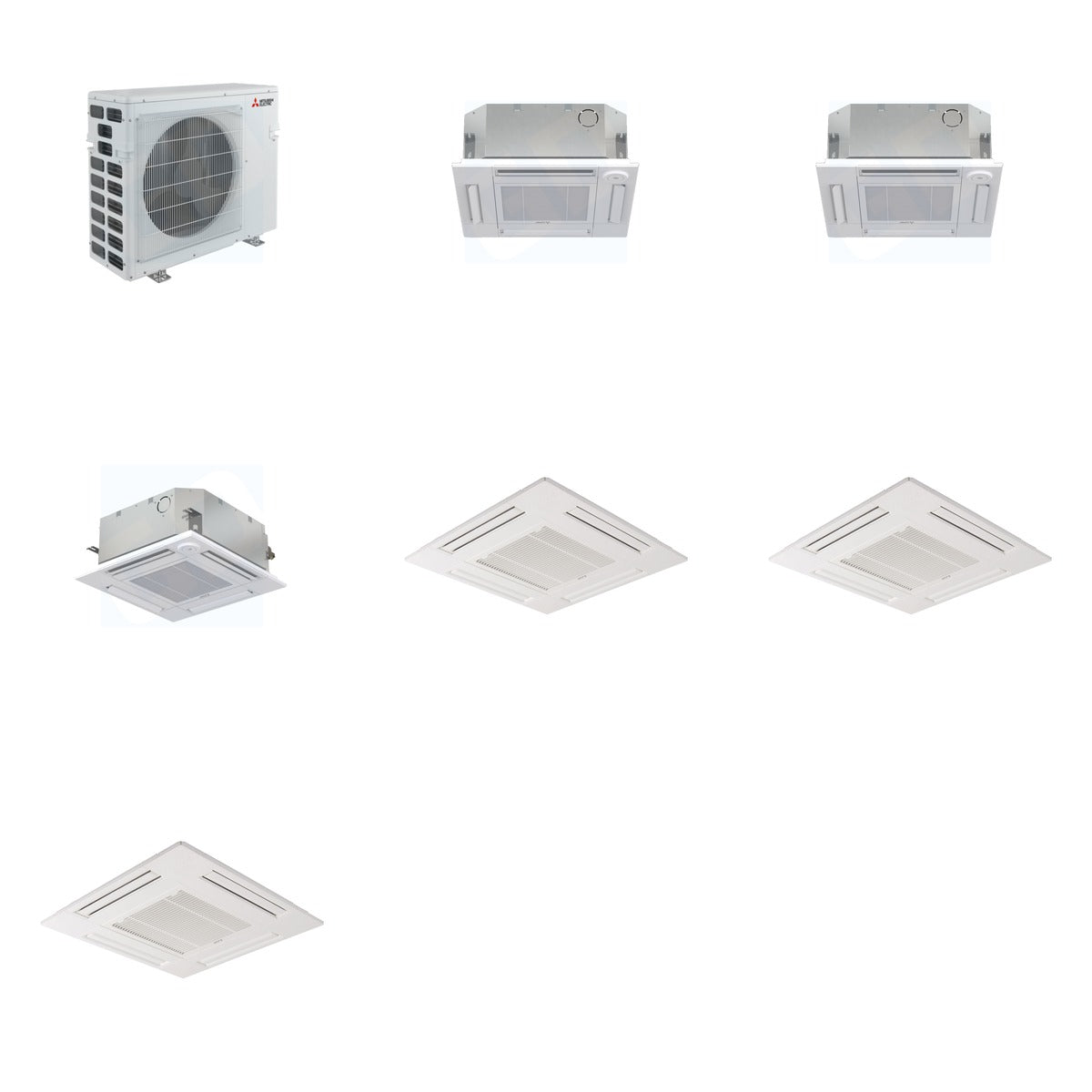

What's Included

• MITSUBISHI ELECTRIC MXZ-5D42NL - Mitsubishi Electric MXZ-5D42NL 42k BTU (3.5 Ton) M-Series Outdoor Condenser (Qty x1)
• MITSUBISHI ELECTRIC SLZ-AF12NL - Mitsubishi Electric SLZ-AF12NL M-Series - Multi or Single-Zone - 12k BTU - R-454B (Qty x2)
• MITSUBISHI ELECTRIC SLZ-AF15NL - Mitsubishi Electric SLZ-AF15NL M-Series - Multi or Single-Zone - 15k BTU - R-454B (Qty x1)
• MITSUBISHI ELECTRIC SLP-18FAU - Mitsubishi Electric SLP-18FAU - (Grille for SLZ-AF Series) (Qty x3)

Key Details

• Weight of Bundle: 314 lb (Mitsubishi 194 lb + Mitsubishi 66 lb + Mitsubishi 33 lb + Mitsubishi 21 lb)
• Cooling Capacity: 42,000 BTU (MXZ-5D42NL), 12,000 BTU (SLZ-AF12NL), 15,000 BTU (SLZ-AF15NL)
• Heating Capacity: 53,600 BTU (MXZ-5D42NL), 15,000 BTU (SLZ-AF12NL), 18,000 BTU (SLZ-AF15NL)
• SEER2: 19.3 (MXZ-5D42NL)
• Refrigerant: R-454B
• Voltage: 208/230V
• Dimensions: MXZ-5D42NL (31.43 x 37.45 x 13 inches), SLZ-AF12NL (22-7/16 x 22-7/16 x 8-4/16 inches), SLZ-AF15NL (22-7/16 x 22-7/16 x 8-3/16 inches)
• Noise Level: 59 dBA (MXZ-5D42NL), 27-39 dB (SLZ-AF12NL and SLZ-AF15NL)

Use & Compatibility

This bundle is designed for multi-zone heating and cooling applications, making it suitable for residential spaces and light commercial environments. The outdoor condenser is compatible with multiple indoor units, allowing for tailored climate control in different areas. The ceiling-mounted air handlers provide flexibility in installation and air management, ensuring optimal comfort throughout the space.
