Mitsubishi Multi-Zone 40500 BTU R-454B 18 SEER2 2-Zone Multi-Position Air Handler Heat Pump System - 24K+24K

Description

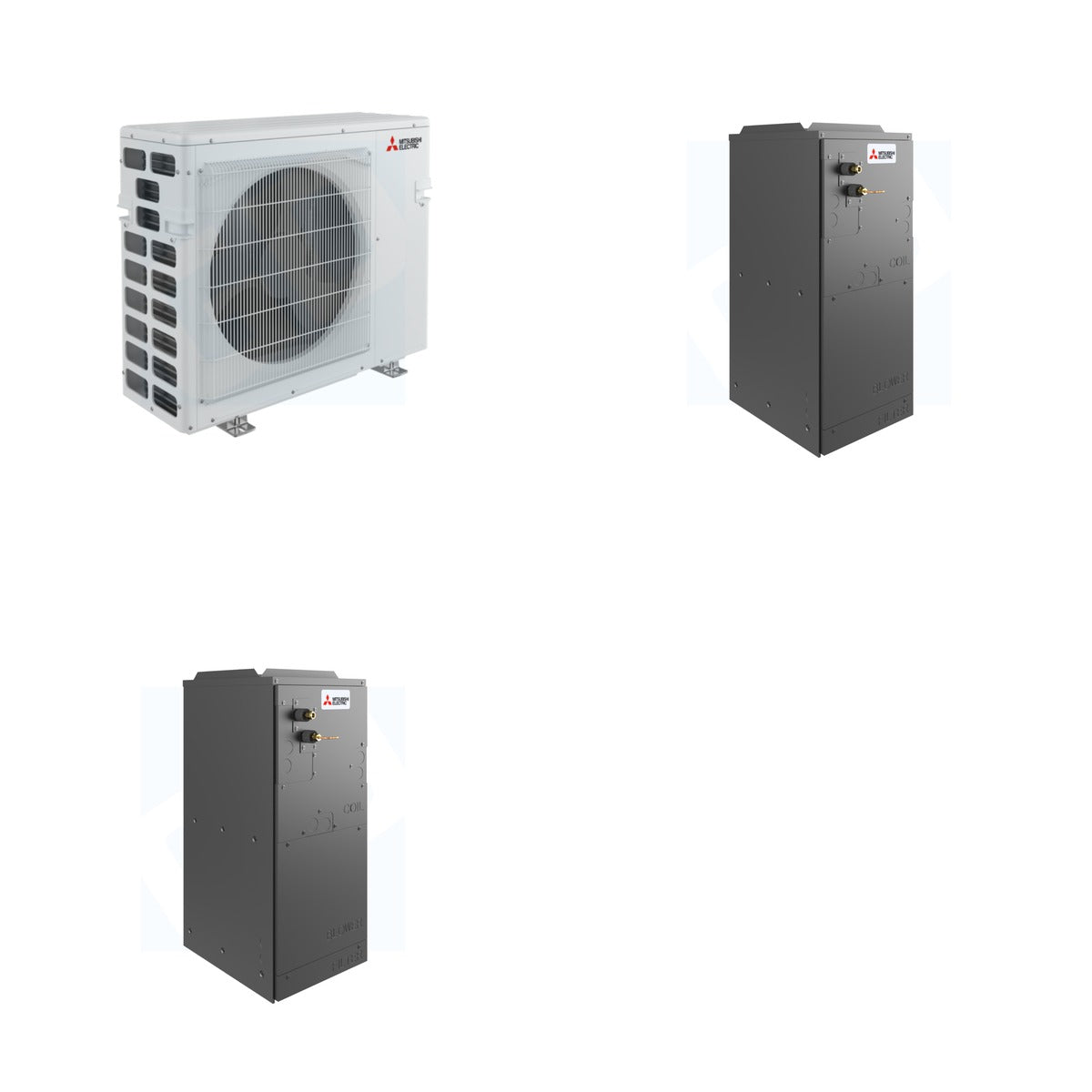

This bundle features the Mitsubishi Electric MXZ-5D42NL outdoor condenser and two SVZ-AP24NL ducted air handler indoor units, providing a comprehensive solution for multi-zone heating and cooling. The outdoor unit delivers powerful performance with a capacity of 42,000 BTU, while the two indoor units each offer 24,000 BTU, ensuring efficient climate control across various spaces. Designed for flexibility, the system accommodates up to five zones, making it ideal for both residential and light commercial applications. With advanced features like variable speed inverter technology and customizable installation options, this bundle is perfect for achieving optimal comfort year-round.

What's Included

• MITSUBISHI ELECTRIC MXZ-5D42NL - Mitsubishi Electric MXZ-5D42NL 42k BTU (1 x 1)

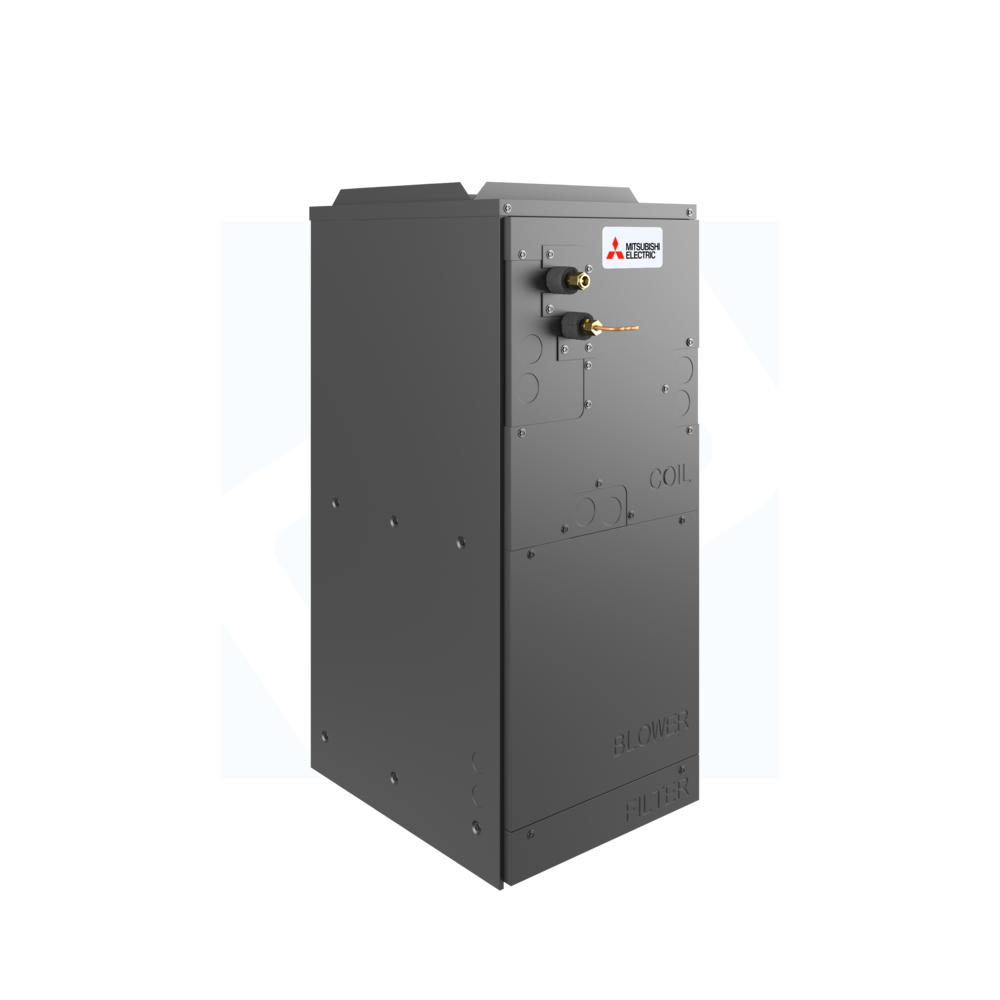

• MITSUBISHI ELECTRIC SVZ-AP24NL - Mitsubishi Electric SVZ-AP24NL AP-Series Ducted Air Handler Indoor Unit - 24k BTU (2 x 1)

Key Details

• Weight of Bundle: 402 lb (Mitsubishi 194 lb + Mitsubishi 208 lb)
• Cooling Capacity: 42,000 BTU
• Heating Capacity: 53,600 BTU
• SEER2: 19.3
• Operating Voltage: 208/230V
• Dimensions (Outdoor Unit): 31.43 x 37.45 x 13 inches
• Dimensions (Indoor Unit): 17 x 21-5/8 x 39-13/16 inches
• Noise Level: 36-59 dB(A)
• Refrigerant Type: R-454B
• Number of Zones: Up to 5

Use & Compatibility

This bundle is designed for multi-zone heating and cooling, making it suitable for both residential and light commercial environments. The outdoor condenser can connect with multiple indoor units, allowing for tailored climate control across different areas. The ducted air handlers can be installed in various orientations to fit the layout of your space, ensuring efficient air distribution and comfort.
