Mitsubishi Multi-Zone 40500 BTU R-454B 18 SEER2 2-Zone Multi-Position Air Handler Heat Pump System - 18K+24K

Description

This comprehensive HVAC bundle is designed to provide efficient heating and cooling solutions for both residential and light commercial applications. Featuring the Mitsubishi Electric MXZ-5D42NL outdoor condenser, this system can support up to five indoor units, ensuring optimal climate control across multiple zones. Paired with the SVZ-AP18NL and SVZ-AP24NL ducted air handlers, this bundle offers versatile installation options and advanced features like selectable external static pressure and WiFi compatibility for remote operation. Together, these components deliver a powerful and efficient climate control system tailored to meet diverse needs.

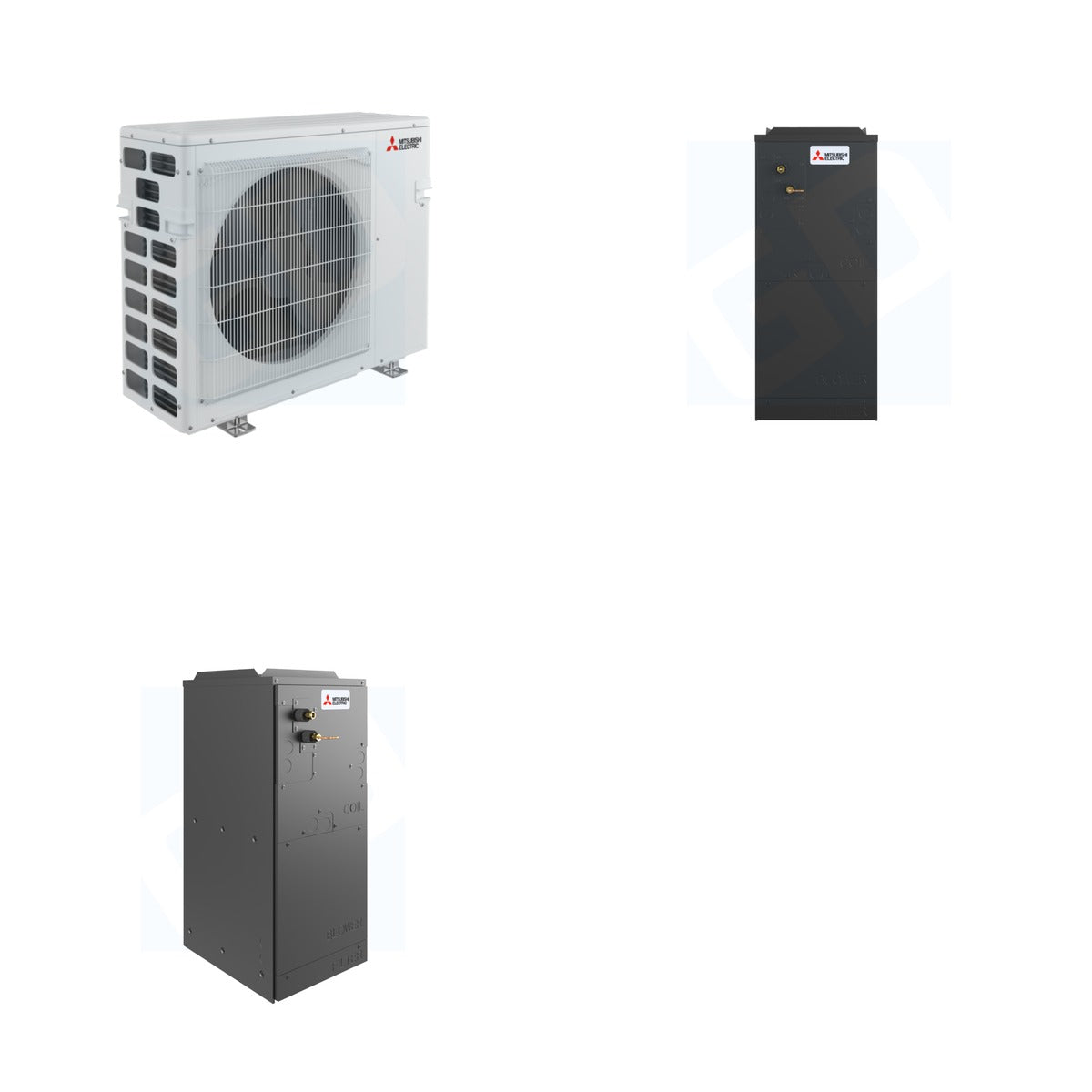

What's Included

• MITSUBISHI ELECTRIC MXZ-5D42NL - Mitsubishi Electric MXZ-5D42NL 42k BTU (3.5 Ton) M-Series Outdoor Condenser up to 5 Zones (Qty x1)

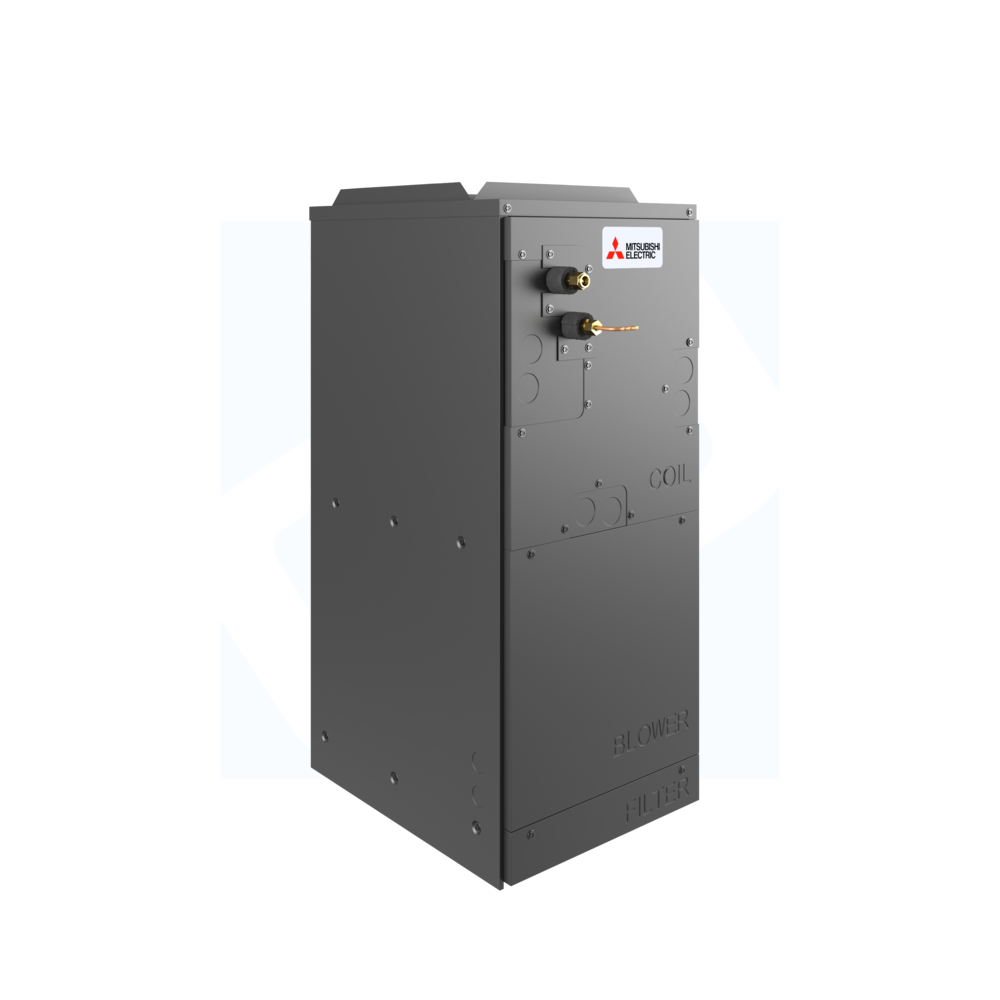

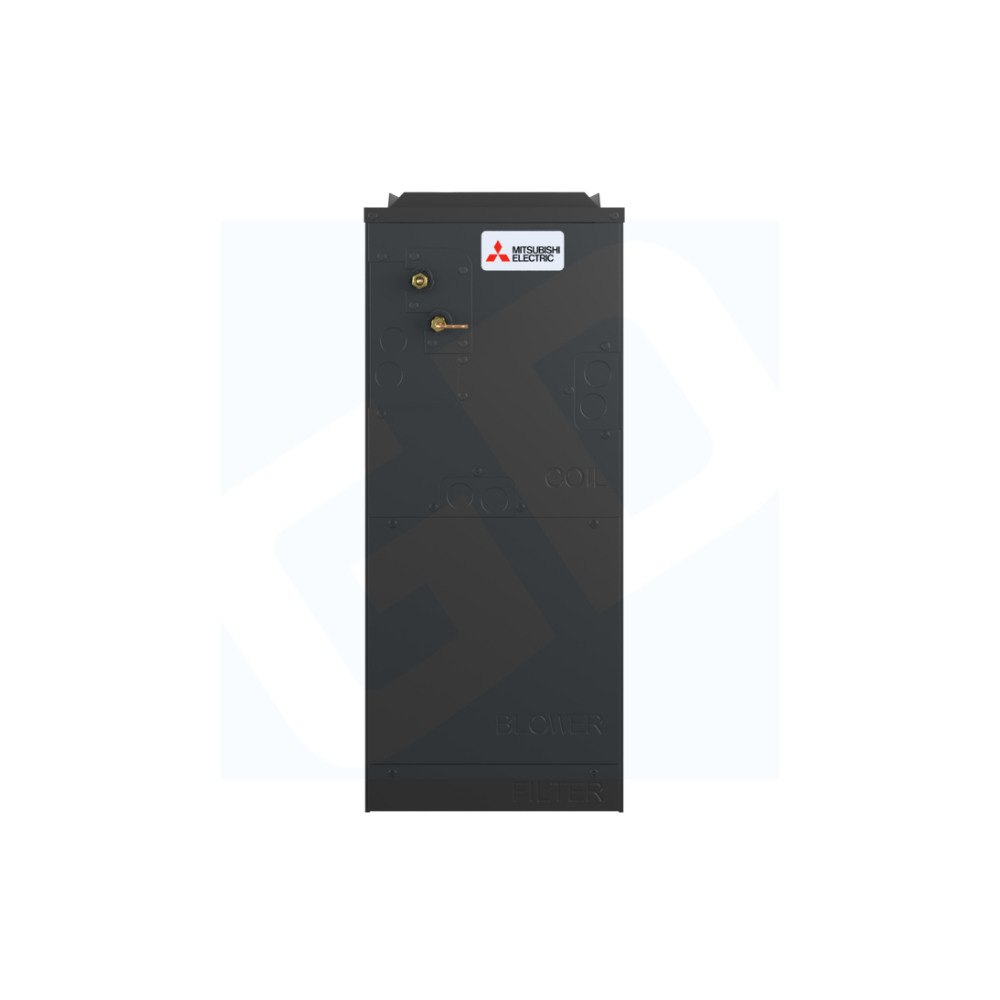

• MITSUBISHI ELECTRIC SVZ-AP18NL - Mitsubishi Electric SVZ-AP18NL AP-Series Ducted Air Handler Indoor Unit - Single-Zone - 18k BTU - R-454B (Qty x1)
• MITSUBISHI ELECTRIC SVZ-AP24NL - Mitsubishi Electric SVZ-AP24NL AP-Series Ducted Air Handler Indoor Unit - Single-Zone - 24k BTU - R-454B (Qty x1)

Key Details

• Weight of Bundle: 402 lb (Mitsubishi 194 lb + Mitsubishi 104 lb + Mitsubishi 104 lb)
• Cooling Capacity: 42,000 BTU (MXZ-5D42NL)
• Heating Capacity: 53,600 BTU (MXZ-5D42NL)
• SEER2: 19.3 (MXZ-5D42NL)
• AFUE: N/A
• Voltage: 208/230V (MXZ-5D42NL)
• Size: 31.43 x 37.45 x 13 inches (MXZ-5D42NL)
• Material: Durable construction with Blue Fin heat exchanger coating (MXZ-5D42NL)
• Airflow: 471-675 CFM (SVZ-AP18NL & SVZ-AP24NL)
• Noise Level: 36-45 dB(A) (SVZ-AP18NL & SVZ-AP24NL)

Use & Compatibility

This HVAC bundle is ideal for multi-zone heating and cooling in residential and light commercial settings. The MXZ-5D42NL outdoor condenser is compatible with both the SVZ-AP18NL and SVZ-AP24NL indoor air handlers, allowing for flexible installation and efficient climate management across various spaces.
