Mitsubishi Multi-Zone 40500 BTU R-454B 18 SEER2 2-Zone Multi-Position Air Handler Heat Pump System - 12K+24K

Description

The Mitsubishi Electric HVAC bundle includes a powerful outdoor condenser and two versatile indoor air handlers, designed to provide optimal climate control for residential and light commercial spaces. The MXZ-5D42NL outdoor unit delivers up to 42,000 BTU of cooling and 53,600 BTU of heating, supporting up to five indoor zones. Paired with the SVZ-AP12NL and SVZ-AP24NL ducted air handlers, this bundle ensures efficient heating and cooling tailored to your specific needs. With advanced features such as variable speed compressors and multi-position installation options, this system is engineered for energy efficiency and comfort.

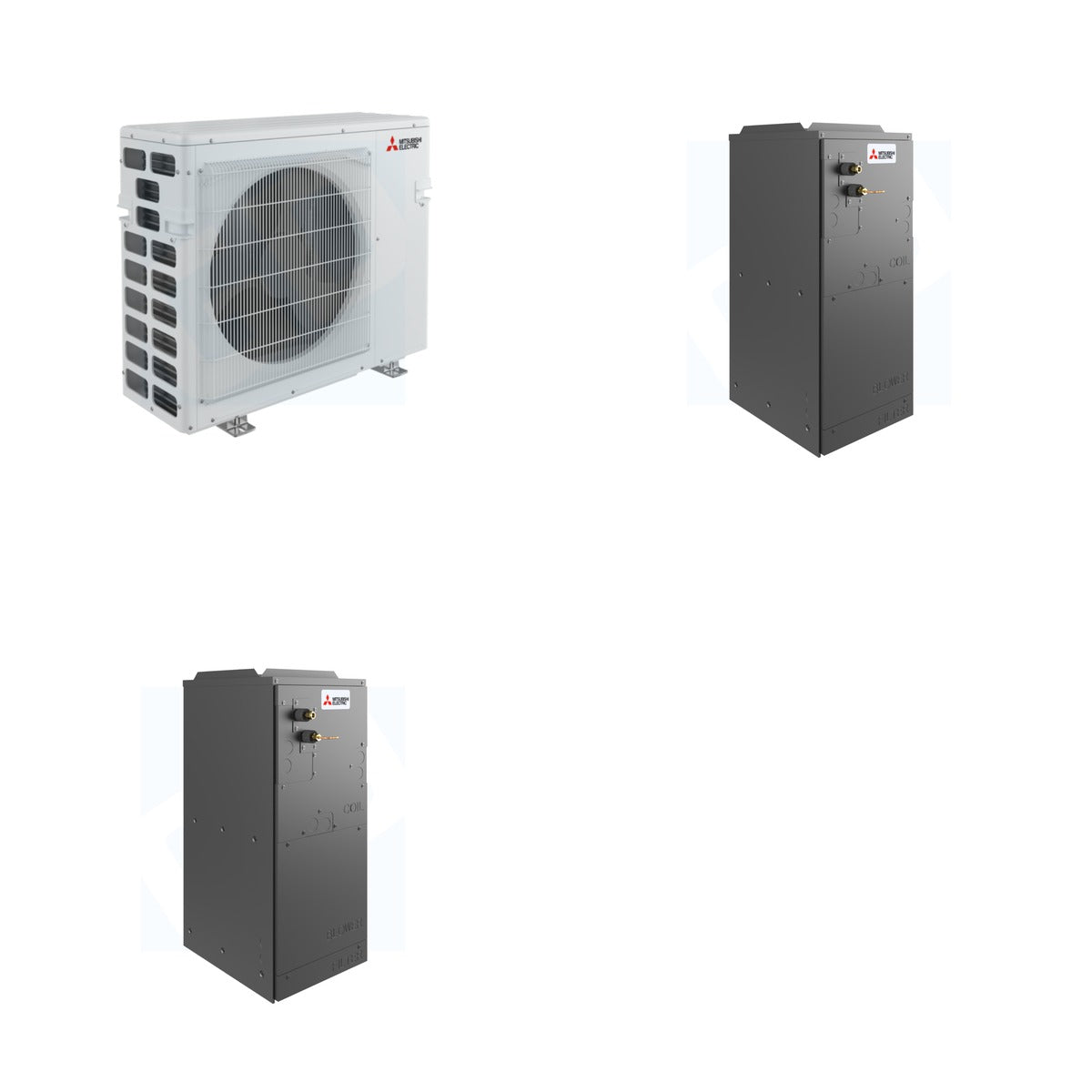

What's Included

• MITSUBISHI ELECTRIC MXZ-5D42NL - Mitsubishi Electric MXZ-5D42NL 42k BTU (3.5 Ton) M-Series Outdoor Condenser up to 5 Zones (Qty x1)

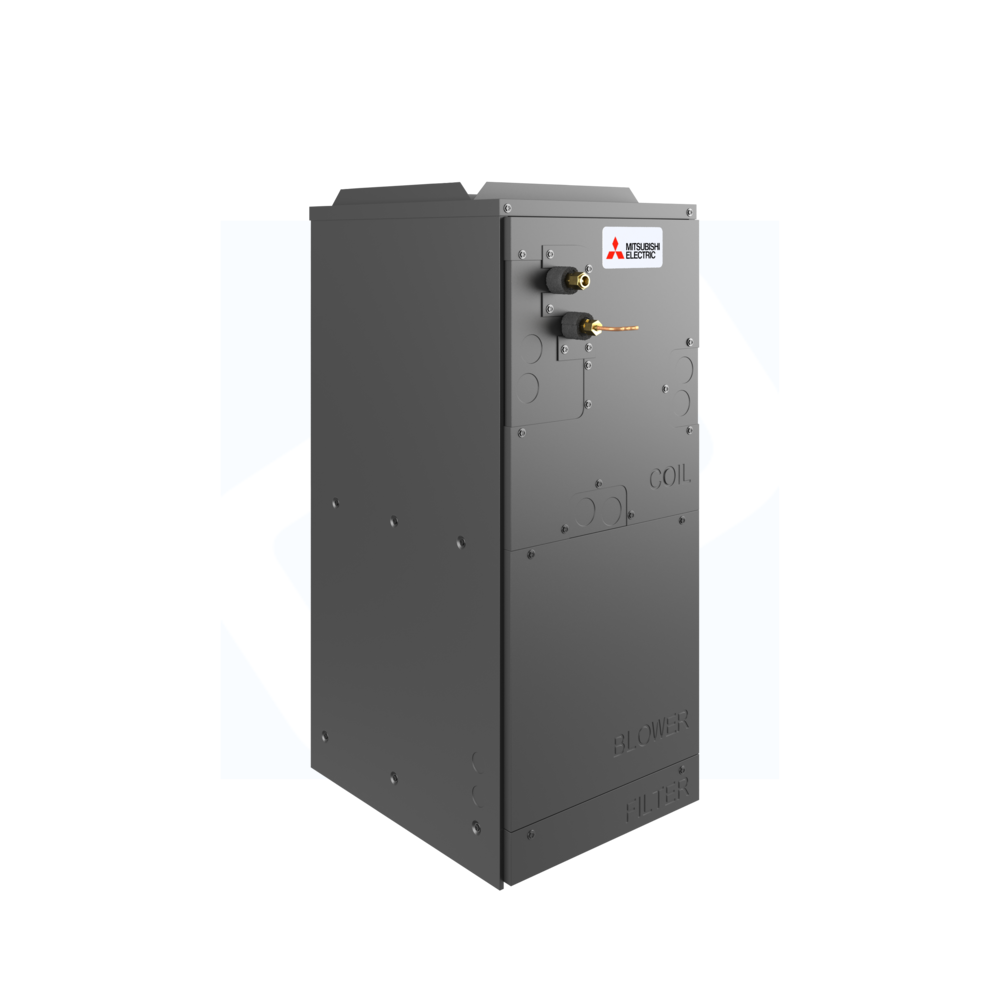

• MITSUBISHI ELECTRIC SVZ-AP12NL - Mitsubishi Electric SVZ-AP12NL AP-Series Ducted Air Handler Indoor Unit - Single-Zone - 12k BTU - R-454B (Qty x1)
• MITSUBISHI ELECTRIC SVZ-AP24NL - Mitsubishi Electric SVZ-AP24NL AP-Series Ducted Air Handler Indoor Unit - Single-Zone - 24k BTU - R-454B (Qty x1)

Key Details

• Weight of Bundle: 395 lb (Mitsubishi 194 lb + Mitsubishi 97 lb + Mitsubishi 104 lb)
• Cooling Capacity: 42,000 BTU
• Heating Capacity: 53,600 BTU
• SEER2: 19.3
• Voltage: 208/230V
• Noise Level: 36-45 dB(A)
• Dimensions (Outdoor Unit): 31.43 x 37.45 x 13 inches
• Dimensions (Indoor Units): 17 x 21-5/8 x 39-13/16 inches
• Refrigerant: R-454B
• Installation: Horizontal or Vertical

Use & Compatibility

This HVAC bundle is ideal for multi-zone heating and cooling applications in residential and light commercial settings. The outdoor condenser is compatible with both indoor air handlers, allowing for flexible installation and efficient climate control across multiple zones.
