Mitsubishi Multi-Zone 40500 BTU R-454B 16 SEER2 4-Zone Ducted Low-Static Mini Split Heat Pump System - 9K+12K+12K+18K

Description

The Mitsubishi Electric Multi-Zone HVAC Bundle is designed to provide comprehensive heating and cooling solutions for residential and light commercial spaces. This bundle includes a powerful outdoor condenser and three versatile indoor units, allowing for tailored climate control across multiple zones. The outdoor unit, with its high BTU capacity, pairs seamlessly with the concealed duct indoor units, which are ideal for discreet installation in tight spaces. Together, these components ensure efficient operation, quiet performance, and enhanced comfort for any environment.

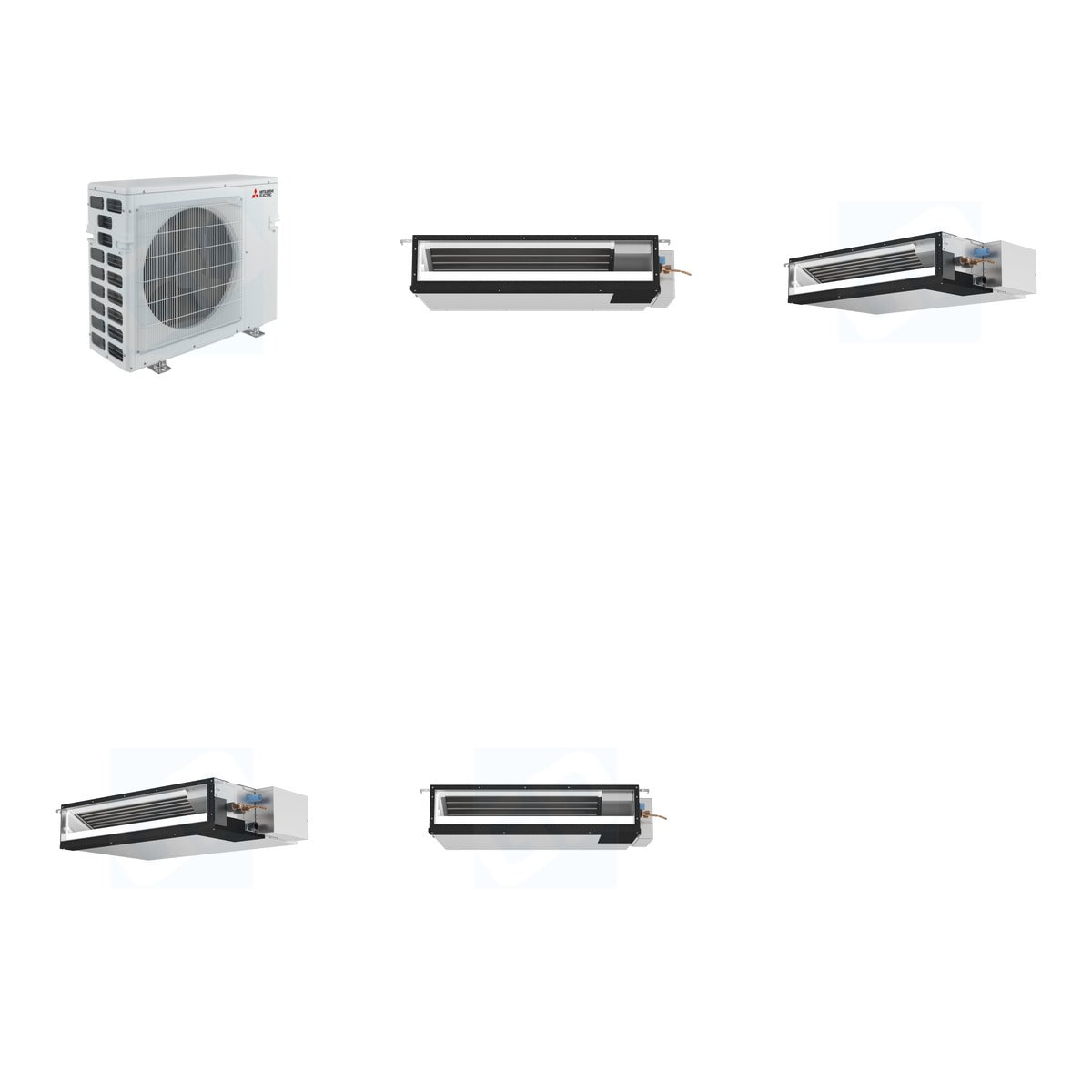

What's Included

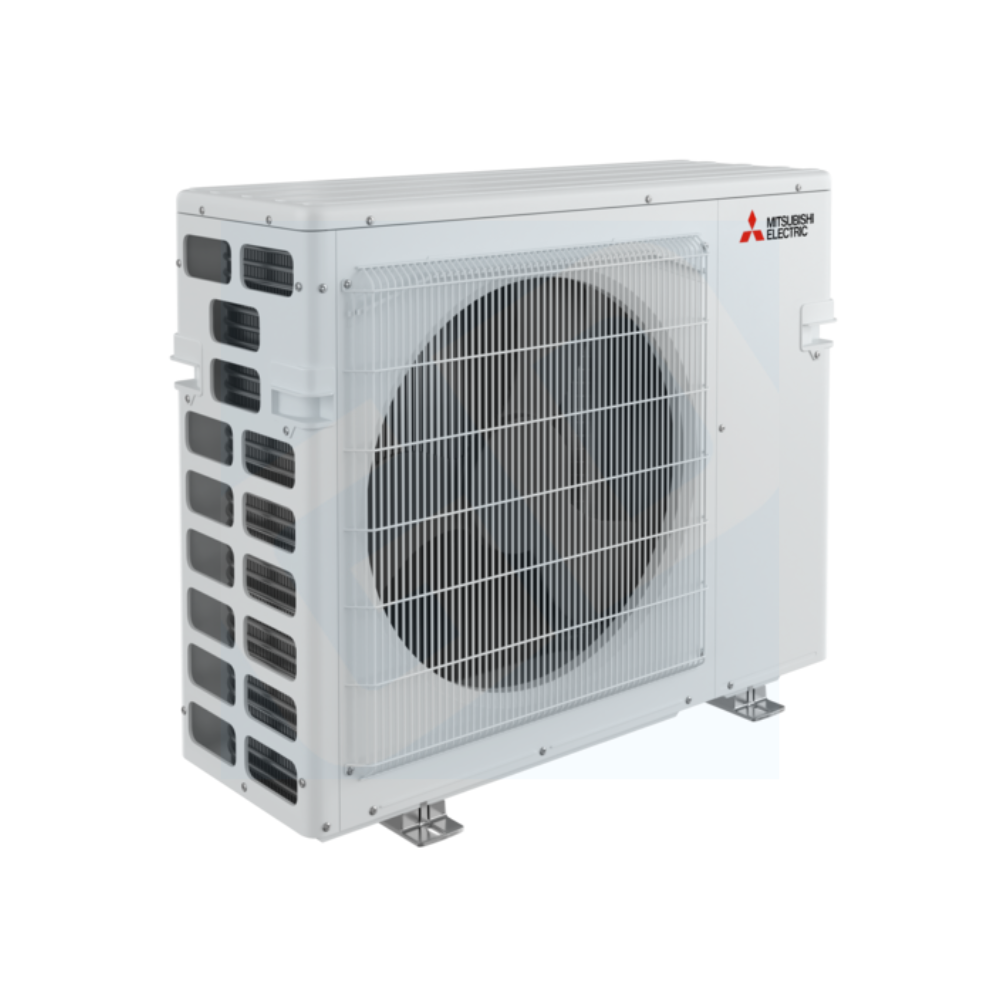

• MITSUBISHI ELECTRIC MXZ-5D42NL - Mitsubishi Electric MXZ-5D42NL 42k BTU (3.5 Ton) M-Series Outdoor Condenser up to 5 Zones (Qty x1)
• MITSUBISHI ELECTRIC SEZ-AD09NL - Mitsubishi Electric SEZ-AD09NL 9k BTU (0.75 Ton) 208/230V M-Series Concealed Duct AHU (R-454B) (Qty x1)
• MITSUBISHI ELECTRIC SEZ-AD12NL - Mitsubishi Electric SEZ-AD12NL 12k BTU (1.00 Ton) 208/230V M-Series Concealed Duct AHU (R-454B) (Qty x2)
• MITSUBISHI ELECTRIC SEZ-AD18NL - Mitsubishi Electric SEZ-AD18NL 18k BTU (1.50 Ton) 208/230V M-Series Concealed Duct AHU (R-454B) (Qty x1)

Key Details

• Weight of Bundle: 390 lb (Mitsubishi 194 lb + Mitsubishi 40 lb + Mitsubishi 98 lb + Mitsubishi 58 lb)
• Cooling Capacity: 42,000 BTU (MXZ-5D42NL), 9,000 BTU (SEZ-AD09NL), 12,000 BTU (SEZ-AD12NL), 18,000 BTU (SEZ-AD18NL)
• Heating Capacity: 53,600 BTU (MXZ-5D42NL), 10,900 BTU (SEZ-AD09NL), 13,600 BTU (SEZ-AD12NL), 18,000 BTU (SEZ-AD18NL)
• SEER2 Rating: 19.3 (MXZ-5D42NL)
• Voltage: 208/230V
• Sound Level: 30 dB (SEZ-AD09NL), 23-33 dB (SEZ-AD12NL), 30 dB (SEZ-AD18NL)
• Dimensions: Varies by unit, compact design for easy installation
• Refrigerant Type: R-454B

Use & Compatibility

This bundle is ideal for multi-zone heating and cooling applications, making it suitable for both residential and light commercial use. The outdoor condenser can support up to five indoor units, while the concealed duct units are perfect for discreet installations in attics, ceilings, or walls. Designed for compatibility with various configurations, this system ensures efficient temperature control in different areas of your space.
