Mitsubishi Multi-Zone 40500 BTU R-454B 16 SEER2 3-Zone Ducted Low-Static Mini Split Heat Pump System - 9K+15K+15K

Description

This comprehensive HVAC bundle includes essential components for efficient multi-zone climate control in residential and light commercial spaces. The Mitsubishi Electric MXZ-5D42NL outdoor condenser, with its impressive 42,000 BTU capacity, serves as the powerhouse, capable of supporting up to five indoor units. Complementing this are two concealed duct air handling units: the SEZ-AD09NL with a capacity of 9,000 BTU, perfect for smaller areas, and the SEZ-AD15NL with 15,000 BTU, ideal for larger spaces. Together, these units ensure optimal heating and cooling performance while maintaining a discreet aesthetic, making them perfect for various installation configurations.

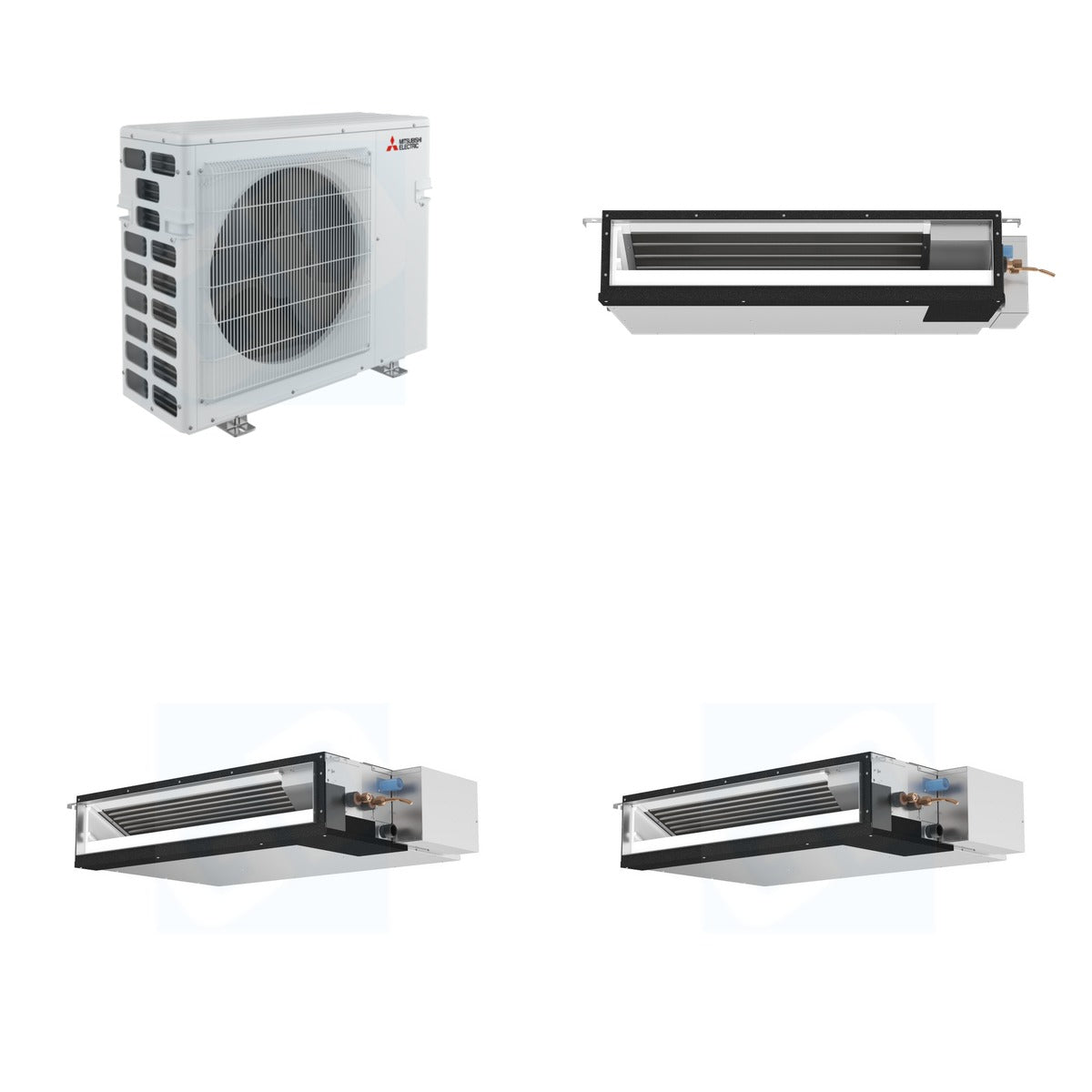

What's Included

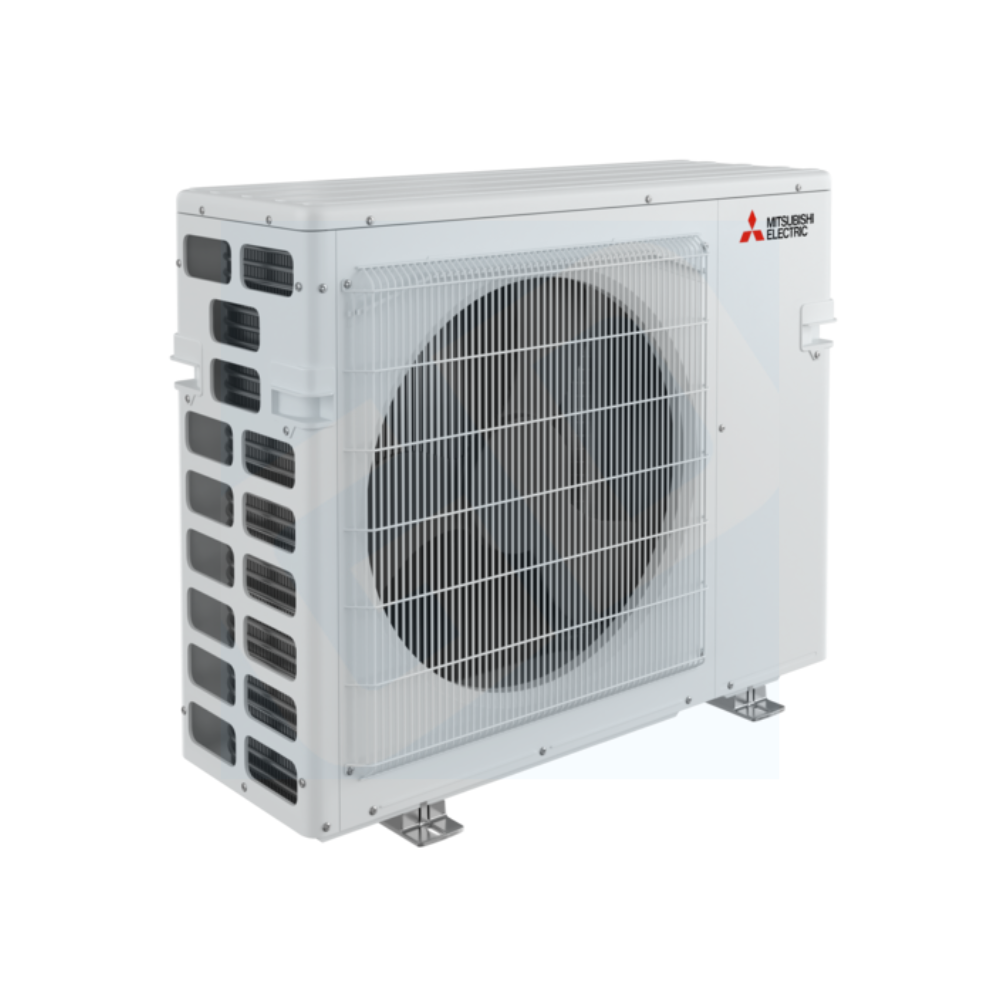

• MITSUBISHI ELECTRIC MXZ-5D42NL - Mitsubishi Electric MXZ-5D42NL 42k BTU (3.5 Ton) M-Series Outdoor Condenser up to 5 Zones (Qty x1)
• MITSUBISHI ELECTRIC SEZ-AD09NL - Mitsubishi Electric SEZ-AD09NL 9k BTU (0.75 Ton) 208/230V M-Series Concealed Duct AHU (R-454B) (Qty x1)
• MITSUBISHI ELECTRIC SEZ-AD15NL - Mitsubishi Electric SEZ-AD15NL 15k BTU (1.25 Ton) 208/230V M-Series Concealed Duct AHU (R-454B) (Qty x2)

Key Details

• Weight of Bundle: 332 lb (Mitsubishi 194 lb + Mitsubishi 40 lb + Mitsubishi 98 lb)
• Cooling Capacity: 42,000 BTU (MXZ-5D42NL), 9,000 BTU (SEZ-AD09NL), 15,000 BTU (SEZ-AD15NL)
• Heating Capacity: 53,600 BTU (MXZ-5D42NL), 10,900 BTU (SEZ-AD09NL), 15,000 BTU (SEZ-AD15NL)
• SEER2: 19.3 (MXZ-5D42NL)
• Refrigerant: R-454B (all units)
• Voltage: 208/230V (all units)
• Noise Level: 30 dB to 59 dB (varies by unit)
• Dimensions: Vary by unit (MXZ-5D42NL: 31.43" H x 37.45" W x 13" D; SEZ-AD09NL: 7.875" H x 31.125" W x 27.5625" D; SEZ-AD15NL: dimensions vary)

Use & Compatibility

This bundle is designed for multi-zone heating and cooling applications, making it suitable for both residential and light commercial environments. The outdoor condenser can connect to multiple indoor units, allowing for tailored climate control across different spaces. Ideal for installation in attics, ceilings, or wall structures, these units operate quietly and efficiently, ensuring comfort throughout your home or office.
