Mitsubishi Multi-Zone 40500 BTU R-454B 16 SEER2 3-Zone Ducted Low-Static Mini Split Heat Pump System - 12K+12K+18K

Description

This comprehensive HVAC bundle features top-of-the-line Mitsubishi Electric products designed for efficient multi-zone heating and cooling. The MXZ-5D42NL outdoor condenser serves as the powerhouse, capable of supporting up to five indoor units, making it ideal for both residential and light commercial applications. Complementing this unit are two concealed duct air handling units, the SEZ-AD12NL and SEZ-AD18NL, which provide unobtrusive comfort and can be easily integrated into existing ductwork. Together, these components ensure optimal climate control, energy efficiency, and quiet operation across multiple zones, meeting diverse heating and cooling needs.

What's Included

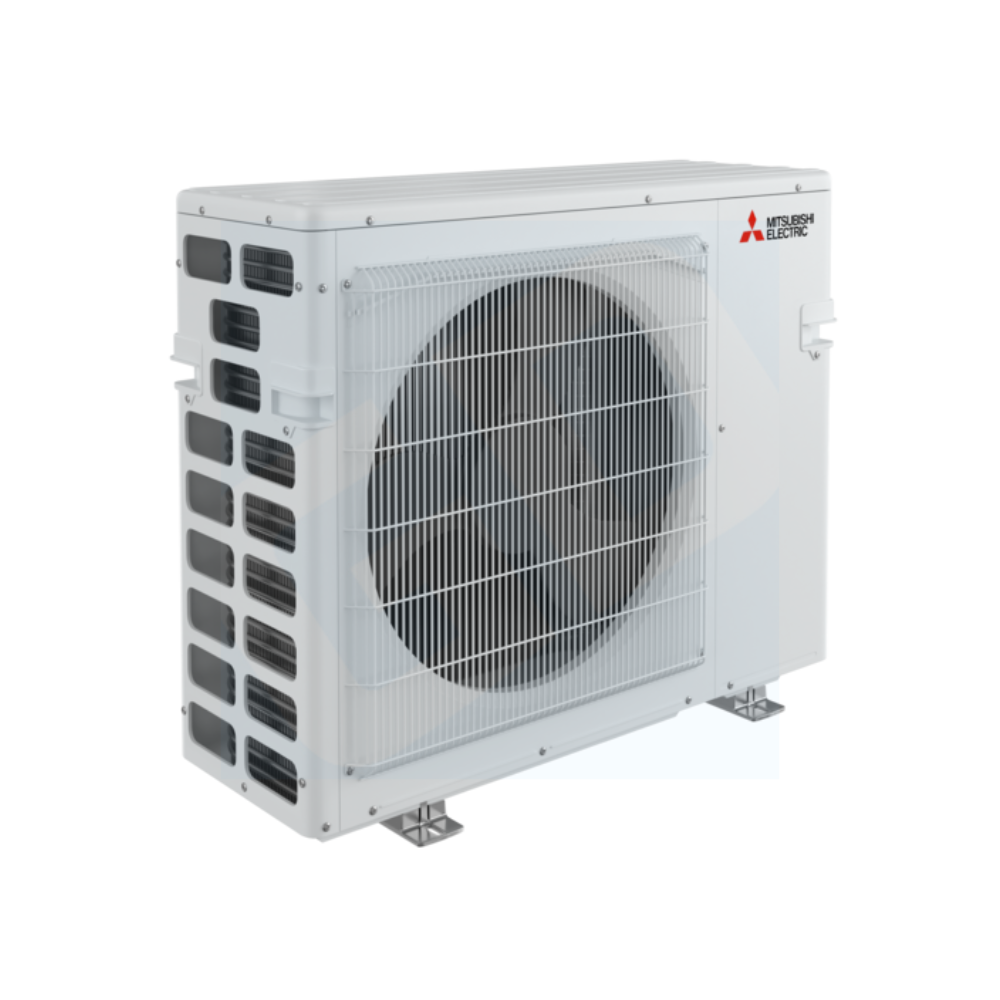

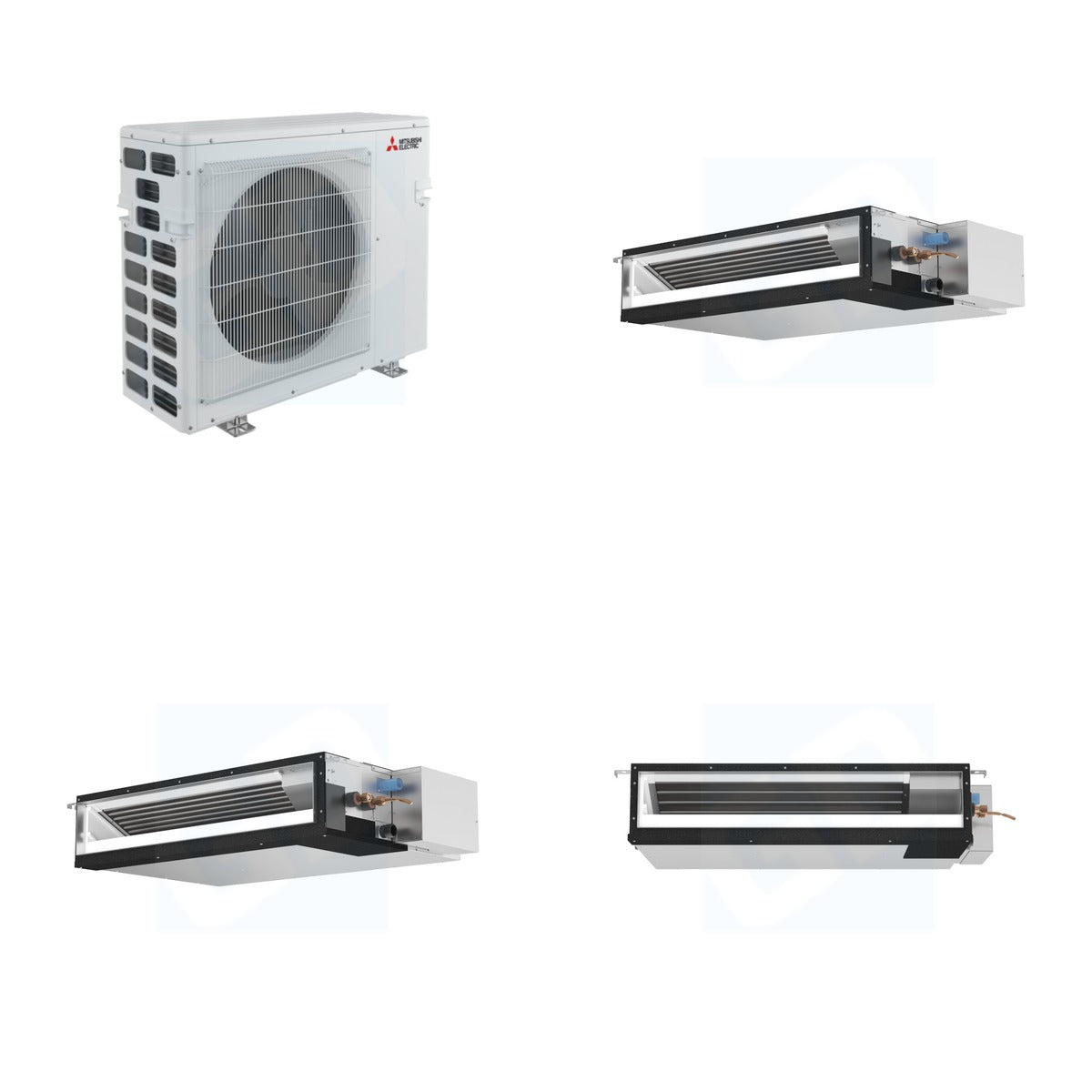

• MITSUBISHI ELECTRIC MXZ-5D42NL - Mitsubishi Electric MXZ-5D42NL 42k BTU (3.5 Ton) M-Series Outdoor Condenser up to 5 Zones (Qty x1)
• MITSUBISHI ELECTRIC SEZ-AD12NL - Mitsubishi Electric SEZ-AD12NL 12k BTU (1.00 Ton) 208/230V M-Series Concealed Duct AHU (R-454B) (Qty x2)
• MITSUBISHI ELECTRIC SEZ-AD18NL - Mitsubishi Electric SEZ-AD18NL 18k BTU (1.50 Ton) 208/230V M-Series Concealed Duct AHU (R-454B) (Qty x1)

Key Details

• Weight of Bundle: 350 lb (Mitsubishi 194 lb + Mitsubishi 98 lb + Mitsubishi 58 lb)
• Cooling Capacity: 42,000 BTU (MXZ-5D42NL), 12,000 BTU (SEZ-AD12NL), 18,000 BTU (SEZ-AD18NL)
• Heating Capacity: 53,600 BTU (MXZ-5D42NL), 13,600 BTU (SEZ-AD12NL), 18,000 BTU (SEZ-AD18NL)
• SEER2: 19.3 (MXZ-5D42NL)
• Voltage: 208/230V
• Noise Level: 23-59 dB(A)
• Dimensions: MXZ-5D42NL (31.43 x 37.45 x 13 in), SEZ-AD12NL (7.875 x 39 x 27.5625 in), SEZ-AD18NL (7.875 x 46.875 x 27.5625 in)
• Refrigerant Type: R-454B

Use & Compatibility

This bundle is designed for use in multi-zone heating and cooling systems, making it suitable for various residential and light commercial applications. The outdoor condenser connects seamlessly with the concealed duct air handling units, allowing for efficient climate control across multiple rooms or zones. Ideal for both new installations and upgrades to existing systems, this bundle offers flexibility and high performance.
