Mitsubishi Multi-Zone 40500 BTU R-454B 16 SEER2 2-Zone Ducted Medium-Static Mini Split Heat Pump System - 9K+24K

Description

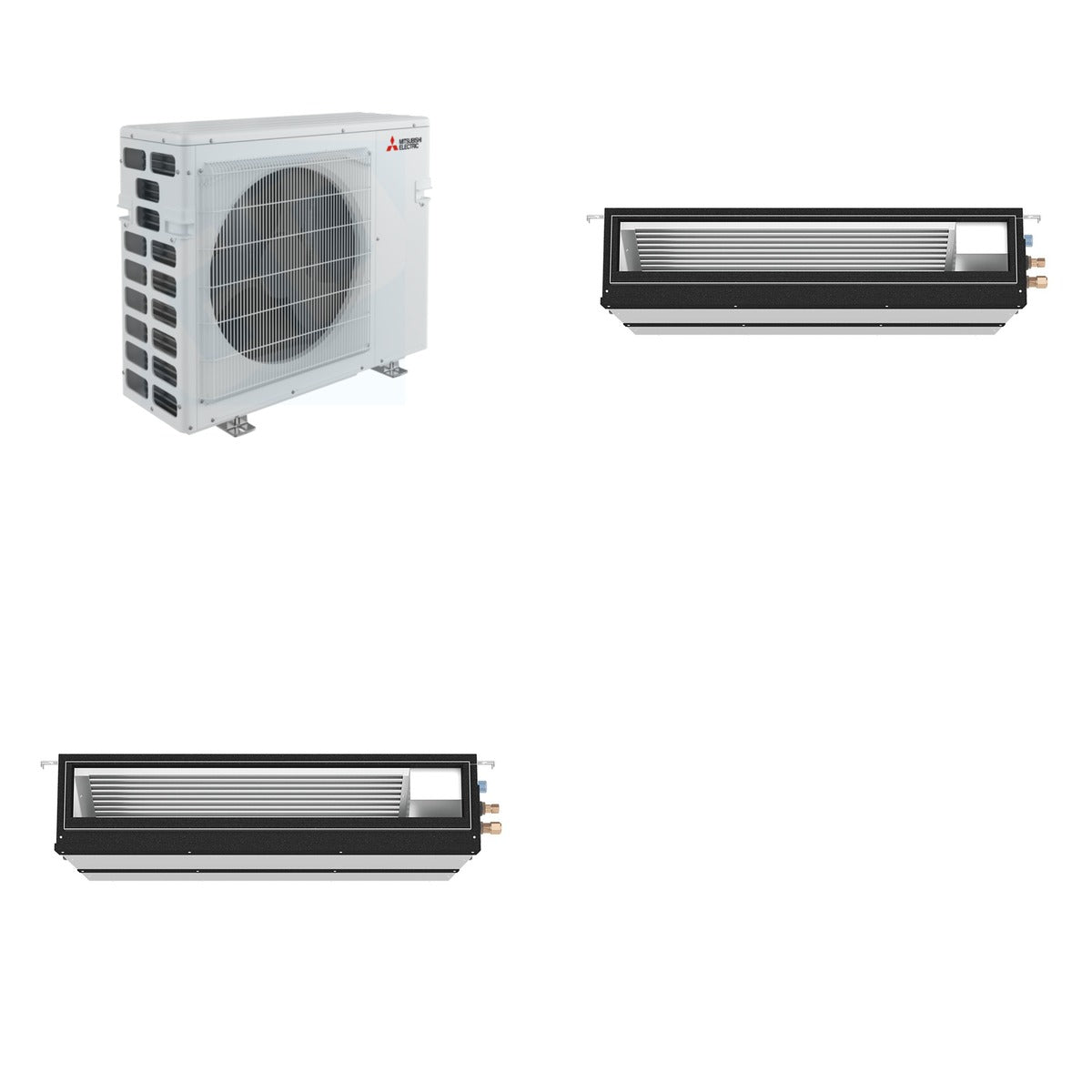

This comprehensive HVAC bundle features the Mitsubishi Electric MXZ-5D42NL outdoor condenser and two concealed duct indoor units, the PEAD-AA09NL and PEAD-AA24NL. Designed for multi-zone heating and cooling, this system provides efficient climate control for both residential and light commercial applications. The outdoor unit supports up to five zones, while the indoor units ensure discreet installation and optimal air distribution. With advanced features such as variable speed compressors and compatibility with R-454B refrigerant, this bundle is perfect for achieving year-round comfort and energy efficiency.

What's Included

• MITSUBISHI ELECTRIC MXZ-5D42NL - Mitsubishi Electric MXZ-5D42NL 42k BTU (3.5 Ton) M-Series Outdoor Condenser up to 5 Zones (Qty x1)
• MITSUBISHI ELECTRIC PEAD-AA09NL - Mitsubishi Electric PEAD-AA09NL R454B: 9k BTU P-Series Concealed Horizontal-Ducted Indoor Unit (Qty x1)
• MITSUBISHI ELECTRIC PEAD-AA24NL - Mitsubishi Electric PEAD-AA24NL R454B: 24k BTU P-Series Concealed Horizontal-Ducted Indoor Unit (Qty x1)

Key Details

• Weight of Bundle: 310 lb (Mitsubishi 194 lb + Mitsubishi 49 lb + Mitsubishi 67 lb)
• Cooling BTU: 43000
• Heating BTU: 53600
• SEER2: 19.3
• Voltage: 208/230V
• Dimensions (MXZ-5D42NL): 31.43 x 37.45 x 13 inches
• Dimensions (PEAD-AA09NL): 9 7/8 x 35 7/16 x 28 7/8 inches
• Dimensions (PEAD-AA24NL): 9 7/8 x 43 5/16 x 28 7/8 inches
• Refrigerant Type: R-454B
• Noise Level: 52 dBA (MXZ-5D42NL)

Use & Compatibility

This bundle is ideal for both residential and light commercial applications, providing efficient heating and cooling for multiple zones. The outdoor condenser is compatible with up to five indoor units, while the concealed duct indoor units are designed for unobtrusive installation in various settings, ensuring a seamless integration into your space.
