Mitsubishi Multi-Zone 40500 BTU R-454B 16 SEER2 2-Zone Ducted Medium-Static Mini Split Heat Pump System - 15K+24K

Description

This HVAC bundle features a powerful combination of Mitsubishi Electric units designed for efficient multi-zone climate control in residential and light commercial spaces. The MXZ-5D42NL outdoor condenser serves as the backbone of this system, providing up to 42,000 BTU of cooling and 53,600 BTU of heating, capable of supporting five indoor units. The PEAD-AA15NL and PEAD-AA24NL concealed horizontal-ducted indoor units offer flexible installation options while delivering 15,000 BTU and 24,000 BTU of cooling, respectively. Together, these units ensure optimal comfort, energy efficiency, and a clean aesthetic, making them ideal for various applications.

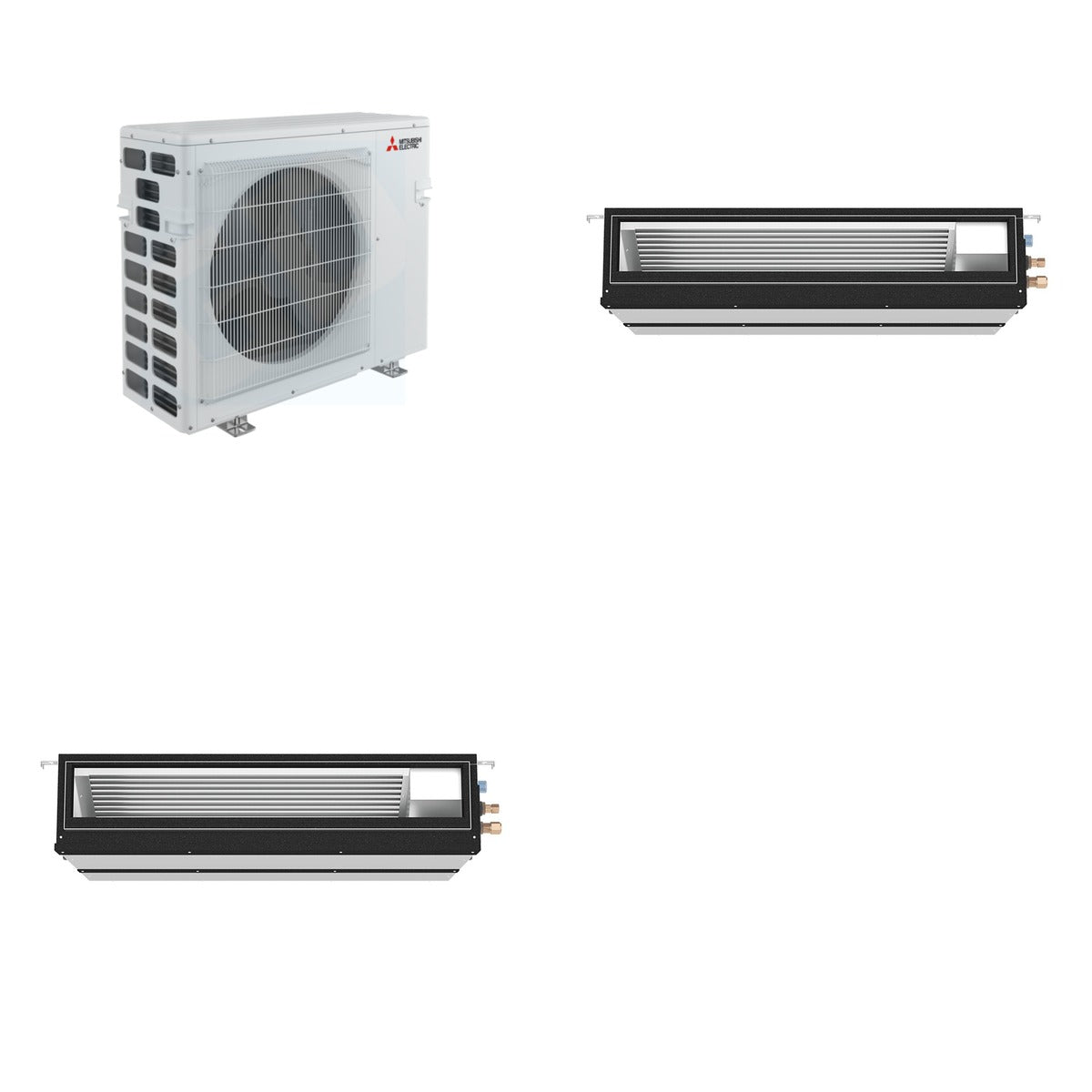

What's Included

• MITSUBISHI ELECTRIC MXZ-5D42NL - Mitsubishi Electric MXZ-5D42NL 42k BTU (3.5 Ton) M-Series Outdoor Condenser up to 5 Zones (Qty x1)
• MITSUBISHI ELECTRIC PEAD-AA15NL - Mitsubishi Electric PEAD-AA15NL R454B: 15k BTU P-Series Concealed Horizontal-Ducted Indoor Unit (Qty x1)
• MITSUBISHI ELECTRIC PEAD-AA24NL - Mitsubishi Electric PEAD-AA24NL R454B: 24k BTU P-Series Concealed Horizontal-Ducted Indoor Unit (Qty x1)

Key Details

• Weight of Bundle: 319 lb (Mitsubishi 194 lb + Mitsubishi 58 lb + Mitsubishi 67 lb)
• Cooling Capacity: 42,000 BTU (MXZ-5D42NL), 15,000 BTU (PEAD-AA15NL), 24,000 BTU (PEAD-AA24NL)
• Heating Capacity: 53,600 BTU (MXZ-5D42NL), 18,000 BTU (PEAD-AA15NL)
• SEER2: 19.3 (MXZ-5D42NL)
• Refrigerant Type: R-454B (all units)
• Voltage: 208/230V (all units)
• Dimensions: MXZ-5D42NL - 31.43" H x 37.45" W x 13" D; PEAD-AA15NL - 9-7/8" H x 35-7/16" W x 28-7/8" D; PEAD-AA24NL - 9-7/8" H x 43-5/16" W x 28-7/8" D
• Sound Level: 59 dB(A) (MXZ-5D42NL), 33/26 dB(A) (PEAD-AA15NL), 33 dB(A) (PEAD-AA24NL)

Use & Compatibility

This bundle is designed for efficient heating and cooling in multi-zone applications. The outdoor unit connects seamlessly with the indoor units, making it suitable for homes, offices, and other light commercial spaces. The concealed ducted indoor units provide a discreet solution for temperature control, ensuring comfort without compromising aesthetics.
