Mitsubishi Multi-Zone 40500 BTU R-454B 16 SEER2 2-Zone Ducted Low-Static Mini Split Heat Pump System - 12K+18K

Description

This comprehensive HVAC bundle includes everything you need for efficient multi-zone heating and cooling in residential or light commercial spaces. The Mitsubishi Electric MXZ-5D42NL outdoor condenser serves as the powerhouse, capable of connecting up to five indoor units, while the SEZ-AD12NL and SEZ-AD18NL concealed duct air handling units provide flexible installation options and quiet operation. Together, these components ensure optimal climate control tailored to your specific needs, utilizing advanced technology for energy efficiency and comfort.

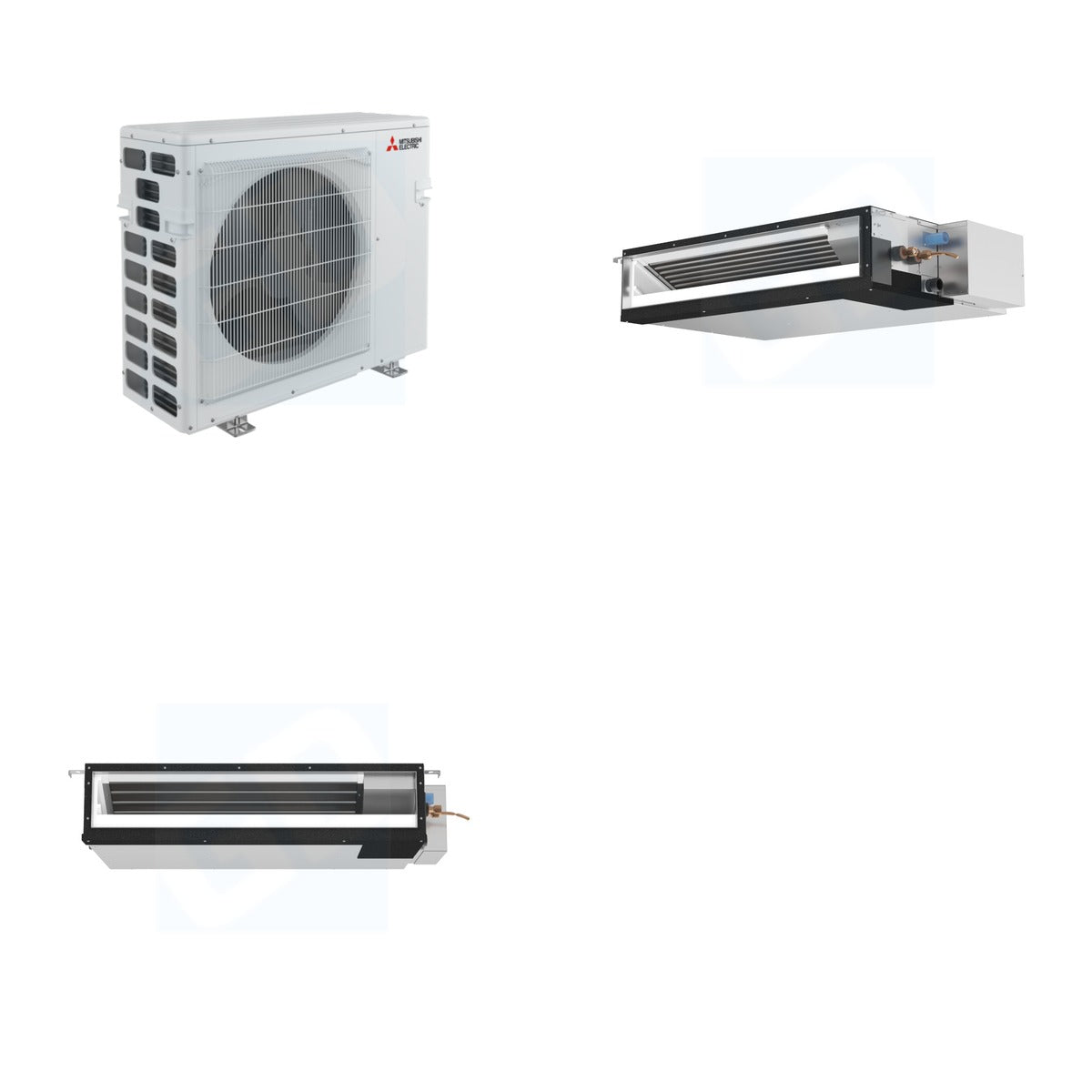

What's Included

• MITSUBISHI ELECTRIC MXZ-5D42NL - Mitsubishi Electric MXZ-5D42NL 42k BTU (3.5 Ton) M-Series Outdoor Condenser up to 5 Zones (Qty x1)

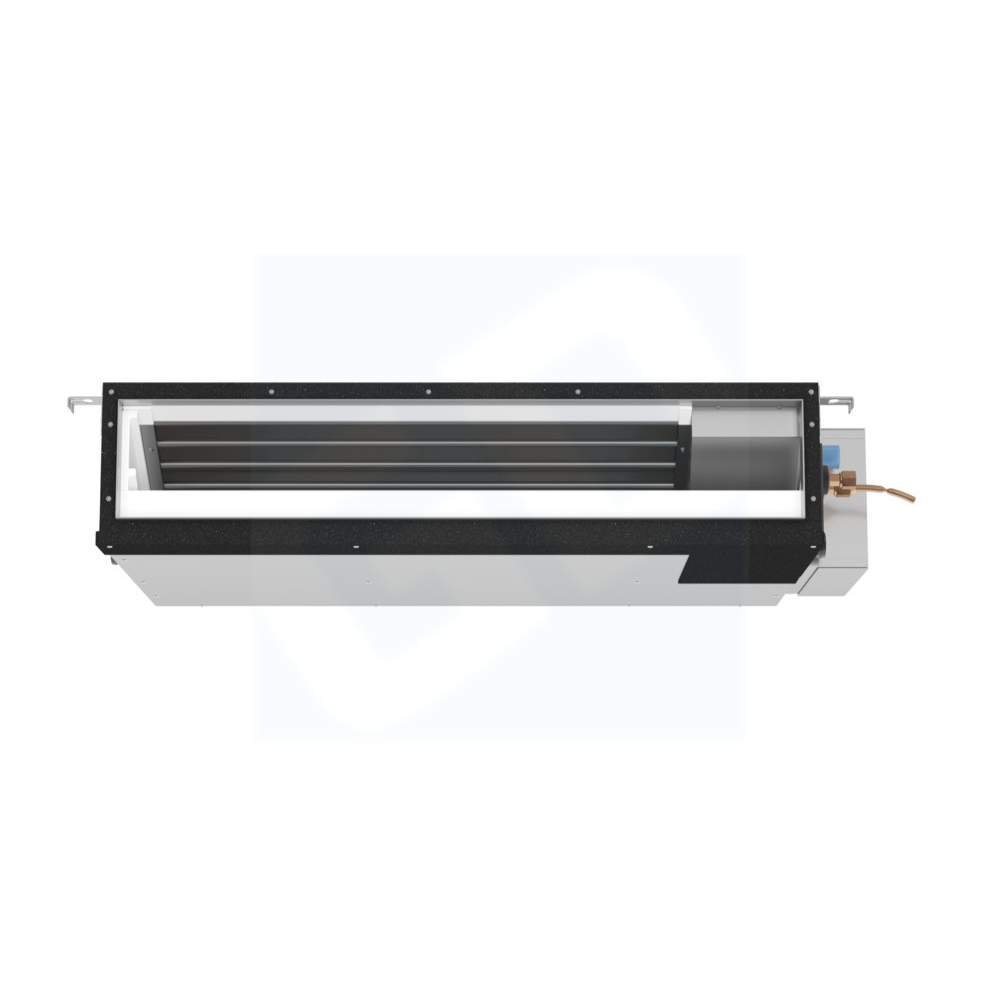

• MITSUBISHI ELECTRIC SEZ-AD12NL - Mitsubishi Electric SEZ-AD12NL 12k BTU (1.00 Ton) 208/230V M-Series Concealed Duct AHU (R-454B) (Qty x1)
• MITSUBISHI ELECTRIC SEZ-AD18NL - Mitsubishi Electric SEZ-AD18NL 18k BTU (1.50 Ton) 208/230V M-Series Concealed Duct AHU (R-454B) (Qty x1)

Key Details

• Weight of Bundle: 301 lb (Mitsubishi 194 lb + Mitsubishi 49 lb + Mitsubishi 58 lb)
• Cooling Capacity: 42,000 BTU (MXZ-5D42NL), 12,000 BTU (SEZ-AD12NL), 18,000 BTU (SEZ-AD18NL)
• Heating Capacity: 53,600 BTU (MXZ-5D42NL), 13,600 BTU (SEZ-AD12NL), 18,000 BTU (SEZ-AD18NL)
• SEER2: 19.3 (MXZ-5D42NL)
• Voltage: 208/230V
• Noise Level: 23-59 dBA
• Dimensions (W x D x H): MXZ-5D42NL 37.45 x 13 x 31.43 inches; SEZ-AD12NL 39 x 27.56 x 7.875 inches; SEZ-AD18NL 46.875 x 27.56 x 7.875 inches
• Refrigerant Type: R-454B

Use & Compatibility

This bundle is designed for multi-zone heating and cooling applications, making it ideal for both residential and light commercial use. The outdoor condenser can support up to five indoor units, providing flexibility in installation and comfort across various spaces. The concealed duct units are perfect for discreet integration into your existing ductwork, ensuring efficient climate control without compromising aesthetics.
