Mitsubishi Multi-Zone 36400 BTU R-454B 20 SEER2 5-Zone Wall-Mounted Mini Split Heat Pump System - 6K+6K+6K+6K+6K

Description

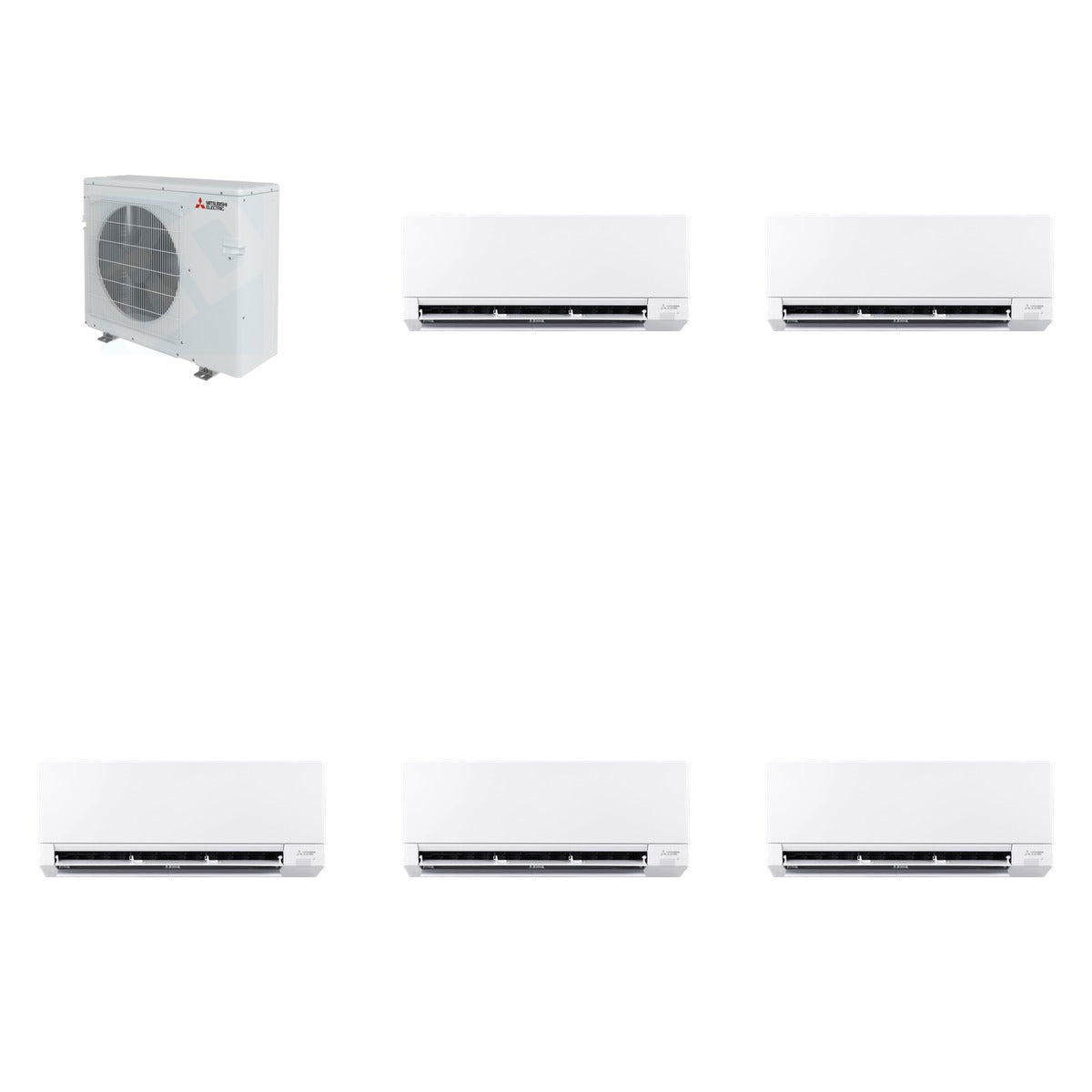

This comprehensive HVAC bundle features the Mitsubishi Electric MXZ-5D36NL outdoor condenser and five MSZ-GX06NL wall-mounted air handlers, providing an efficient solution for multi-zone climate control. The MXZ-5D36NL is designed to connect with up to five indoor units, making it ideal for both residential and commercial applications. With its variable speed inverter technology, this system ensures optimal energy efficiency while maintaining comfortable temperatures across different zones. The MSZ-GX06NL air handlers enhance this setup by delivering precise heating and cooling to individual spaces, equipped with advanced features like built-in Wi-Fi and a Dual Barrier Coating for improved air quality.

What's Included

• MITSUBISHI ELECTRIC MXZ-5D36NL - 36k BTU M-Series Outdoor Condenser (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX06NL - R454B 6k BTU Heat Pump Wall Mount Air Handler (Qty x5)

Key Details

• Weight of Bundle: 304 lb (Mitsubishi 194 lb + Mitsubishi 110 lb)
• Cooling Capacity: 36,400 BTU/h (MXZ-5D36NL)
• Heating Capacity: 43,000 BTU/h (MXZ-5D36NL)
• Cooling Capacity: 6,000 BTU/h (MSZ-GX06NL)
• Heating Capacity: 7,200 BTU/h (MSZ-GX06NL)
• Number of Zones: 5 (MXZ-5D36NL)
• Voltage: 208/230V (Both Units)
• Refrigerant Type: R-454B (Both Units)
• SEER2 Rating: Up to 28.4 (MSZ-GX06NL)
• Dimensions: MXZ-5D36NL - 31.375" H x 37.406" W x 13" D; MSZ-GX06NL - 11.781" H x 31.396" W x 9.656" D

Use & Compatibility

This bundle is perfect for multi-zone heating and cooling applications, allowing for tailored climate control in various spaces. The MXZ-5D36NL outdoor condenser is compatible with up to five MSZ-GX06NL air handlers, making it suitable for both residential and light commercial installations.
