Mitsubishi Multi-Zone 36400 BTU R-454B 20 SEER2 5-Zone 1-Way Ceiling Cassette Mini Split Heat Pump System - 6K+6K+6K+9K+12K

Description

This comprehensive bundle features a selection of Mitsubishi Electric products designed to provide efficient heating and cooling solutions for both residential and commercial spaces. The centerpiece is the Mitsubishi Electric MXZ-5D36NL outdoor condenser, capable of supporting up to five indoor units, making it ideal for multi-zone applications. Accompanying this are three ceiling cassette indoor units (MLZ-KX06NL, MLZ-KX09NL, and MLZ-KX12NL) that offer versatile installation options and customizable airflow. To ensure optimal performance, the bundle includes the necessary grilles (MLP-448WU and MLP-449WU) for effective air distribution. Together, these components create a powerful and flexible climate control system tailored to meet diverse needs.

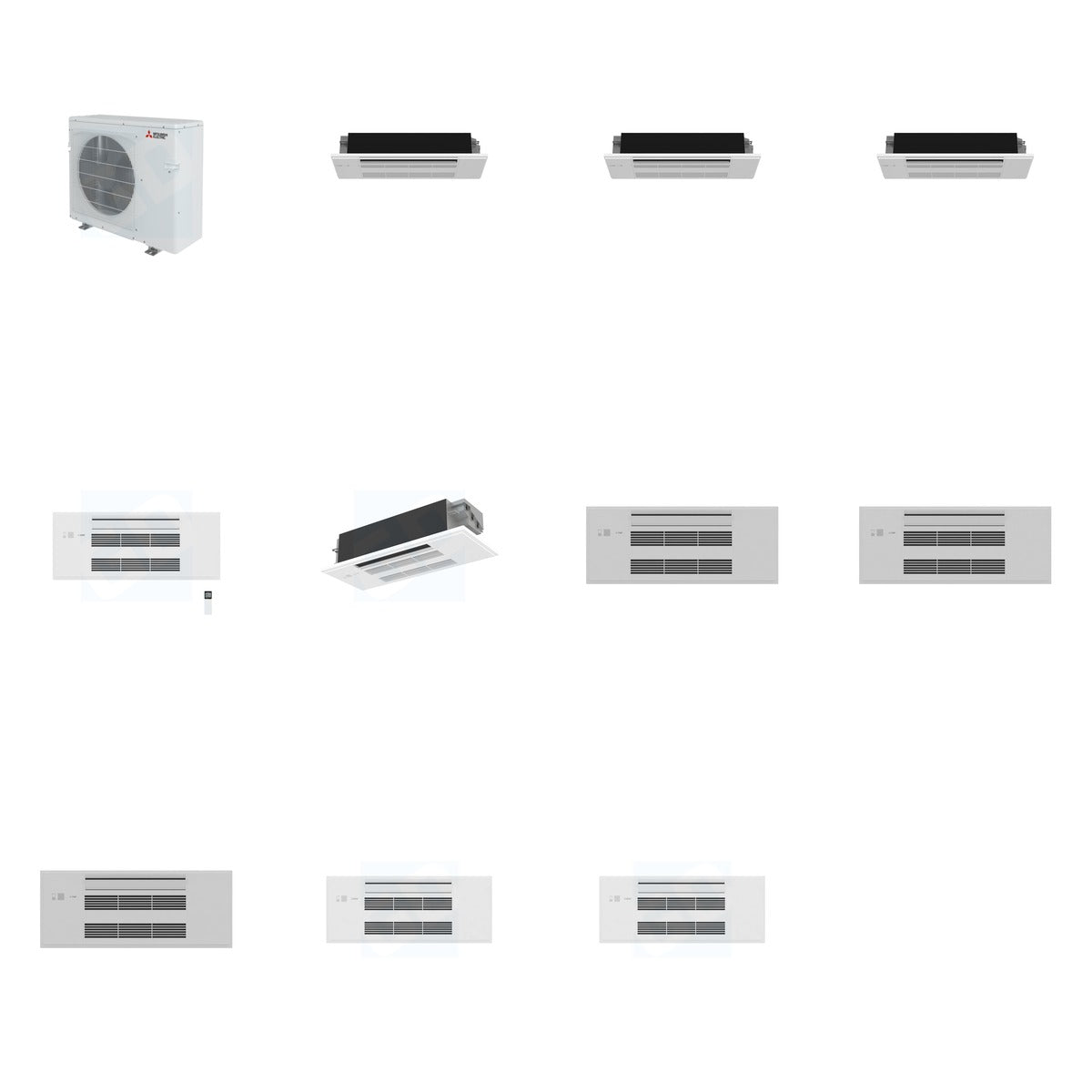

What's Included

• MITSUBISHI ELECTRIC MXZ-5D36NL - Mitsubishi Electric MXZ-5D36NL 36k BTU (3.0 Ton) M-Series Outdoor Condenser (Qty x1)
• MITSUBISHI ELECTRIC MLZ-KX06NL - Mitsubishi Electric MLZ-KX06NL 6k BTU One-Way Ceiling Cassette Indoor Unit (Qty x3)
• MITSUBISHI ELECTRIC MLZ-KX09NL - Mitsubishi Electric MLZ-KX09NL 9k BTU One-Way Ceiling Cassette Indoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MLZ-KX12NL - Mitsubishi Electric MLZ-KX12NL 12k BTU One-Way Ceiling Cassette Indoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MLP-448WU - Mitsubishi Electric MLP-448WU - (Grille for MLZ-KY Series) (Qty x3)
• MITSUBISHI ELECTRIC MLP-449WU - Mitsubishi MLP-449WU Grille for Use w/ MLZ Series Indoor Unit Ceiling Cassette (Qty x2)

Key Details

• Weight of Bundle: 405 lb (Mitsubishi 194 lb + Mitsubishi 102 lb + Mitsubishi 34 lb + Mitsubishi 34 lb + Mitsubishi 21 lb + Mitsubishi 20 lb)
• Cooling Capacity: 36,400 BTU (MXZ-5D36NL), 6,000 BTU (MLZ-KX06NL), 9,000 BTU (MLZ-KX09NL), 12,000 BTU (MLZ-KX12NL)
• Heating Capacity: 43,000 BTU (MXZ-5D36NL), 7,200 BTU (MLZ-KX06NL), 12,000 BTU (MLZ-KX09NL), 15,400 BTU (MLZ-KX12NL)
• Refrigerant Type: R-454B
• Voltage: 208/230V
• Dimensions: MXZ-5D36NL (31.375 H x 37.406 W x 13 D inches), MLZ-KX06NL (33-3/16 W x 11-7/8 D x 7-11/16 H inches), MLZ-KX09NL (43-3/8 x 14-3/16 x 7-5/16 inches), MLZ-KX12NL (43-3/8 W x 14-3/16 D x 7-5/16 H inches)
• Weight: MXZ-5D36NL (not specified), MLZ-KX06NL (25 lbs), MLZ-KX09NL (34 lbs), MLZ-KX12NL (34 lbs)
• Noise Level: Cooling (MLZ-KX06NL 29-36 dB, MLZ-KX09NL 27-38 dB, MLZ-KX12NL 27-40 dB), Heating (MLZ-KX06NL 29-37 dB, MLZ-KX09NL 26-37 dB, MLZ-KX12NL 26-40 dB)

Use & Compatibility

This bundle is ideal for multi-zone heating and cooling applications, providing tailored climate control for various indoor environments. The outdoor condenser is compatible with multiple indoor units, allowing for flexible installation and efficient operation. The ceiling cassette units are designed for installation between standard sixteen-inch joists, making them suitable for a wide range of spaces.
