Mitsubishi Multi-Zone 36400 BTU R-454B 20 SEER2 5-Zone 1-Way Ceiling Cassette Mini Split Heat Pump System - 6K+6K+6K+6K+6K

Description

The Mitsubishi Electric HVAC bundle is designed to provide efficient climate control for both residential and commercial spaces. Featuring a powerful 36k BTU outdoor condenser, this multi-zone system can accommodate up to five indoor units, allowing you to customize the temperature in different areas. The included one-way ceiling cassette units are ideal for smaller spaces, offering both heating and cooling capabilities with adjustable fan speeds and Wi-Fi connectivity for easy control. To ensure optimal airflow and system performance, the bundle also includes essential grilles that enhance air distribution. This combination of components delivers a comprehensive solution for effective heating and cooling.

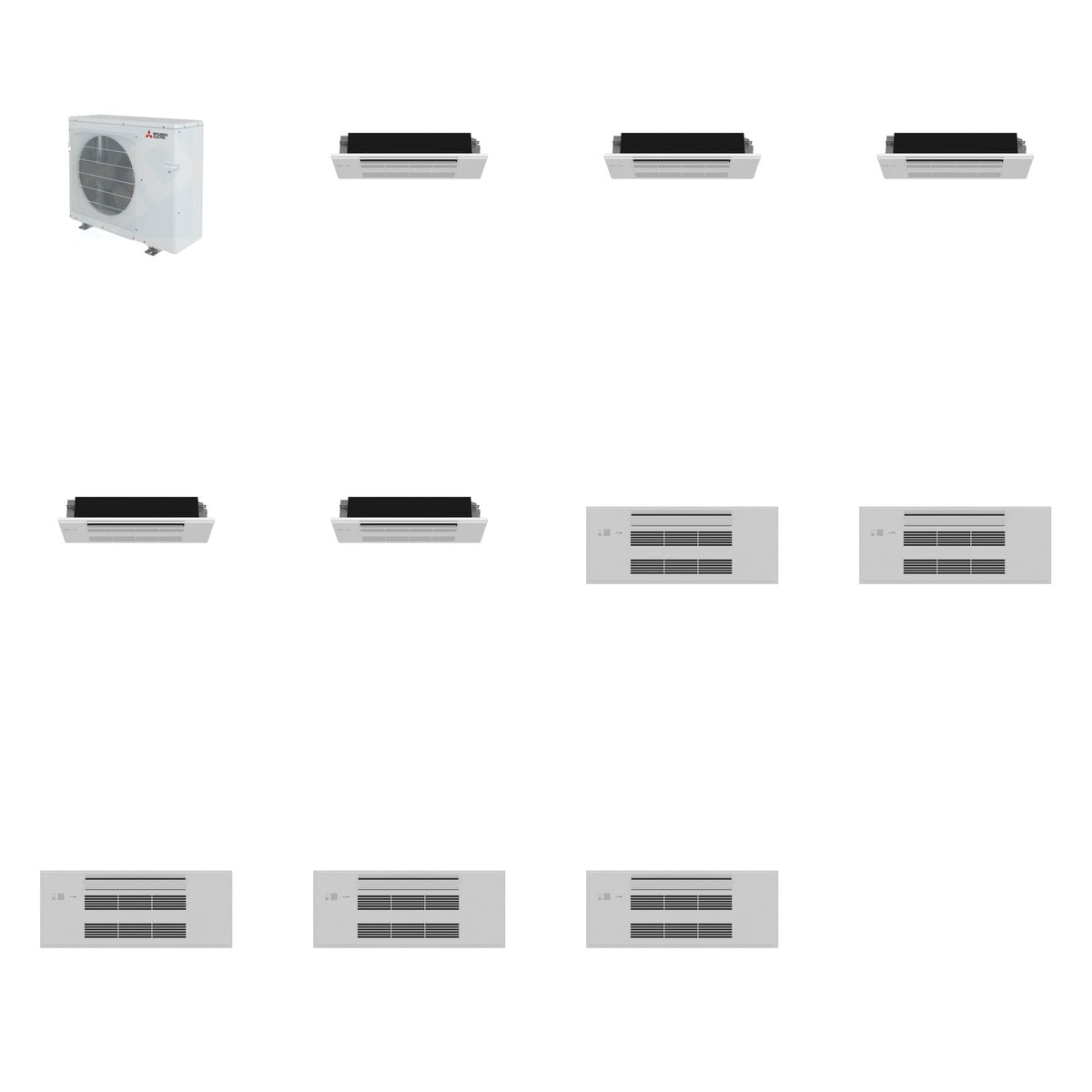

What's Included

• MITSUBISHI ELECTRIC MXZ-5D36NL - Mitsubishi Electric MXZ-5D36NL 36k BTU M-Series Outdoor Condenser up to 5 Zones (Qty x1)

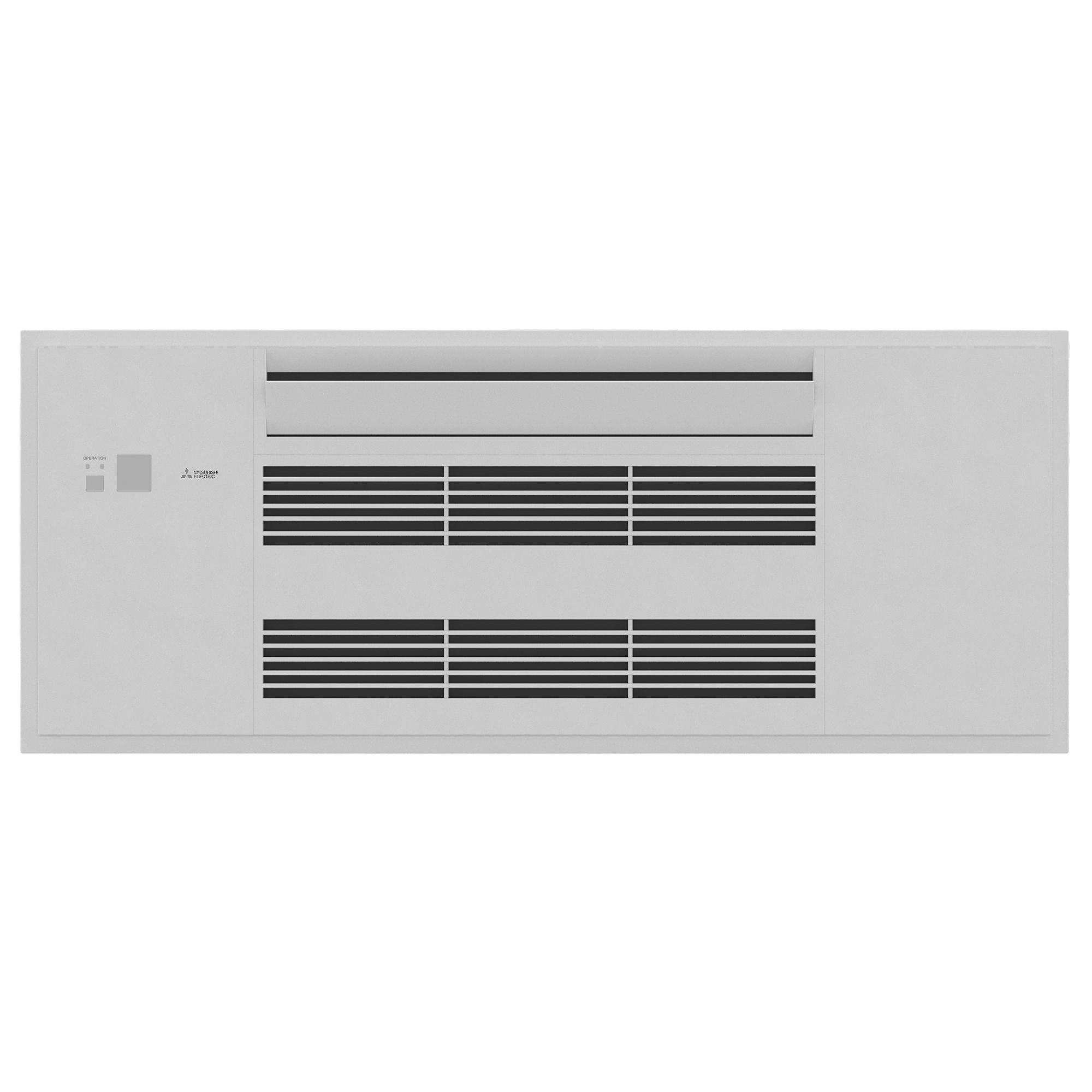

• MITSUBISHI ELECTRIC MLZ-KX06NL - Mitsubishi Electric MLZ-KX06NL 6k BTU One-Way Ceiling Cassette Indoor Unit (Qty x5)
• MITSUBISHI ELECTRIC MLP-448WU - Mitsubishi Electric MLP-448WU - Grille for MLZ-KX Series (Qty x5)

Key Details

• Weight of Bundle: 399 lb (Mitsubishi 194 lb + Mitsubishi 170 lb + Mitsubishi 35 lb)
• Cooling Capacity: 36,400 BTU (MXZ-5D36NL)
• Heating Capacity: 43,000 BTU (MXZ-5D36NL)
• Indoor Unit Capacity: 6,000 BTU (MLZ-KX06NL)
• Voltage: 208/230V
• Refrigerant Type: R-454B
• Outdoor Unit Dimensions: 31.375" H x 37.406" W x 13" D
• Indoor Unit Dimensions: 33-3/16" W x 11-7/8" D x 7-11/16" H
• Airflow Cooling CFM: 152-198 (MLZ-KX06NL)
• Noise Level: Cooling 29-36 dB(A), Heating 29-37 dB(A) (MLZ-KX06NL)

Use & Compatibility

This bundle is perfect for multi-zone heating and cooling applications, making it suitable for various indoor environments. The outdoor condenser can support up to five indoor units, while the ceiling cassette units are designed for installation between standard ceiling joists, providing flexibility in installation and optimal climate control.
