Mitsubishi Multi-Zone 36400 BTU R-454B 20 SEER2 4-Zone Wall-Mounted Mini Split Heat Pump System - 6K+6K+12K+12K

Description

This comprehensive bundle features the Mitsubishi Electric MXZ-5D36NL outdoor condenser and two wall-mounted air handlers (MSZ-GX06NL and MSZ-GX12NL), providing a complete multi-zone heating and cooling solution. The outdoor unit supports up to five indoor units, allowing for customized climate control across various spaces. Each air handler is designed for efficient operation, equipped with advanced features like built-in Wi-Fi and energy-saving technologies. This bundle is ideal for both residential and commercial applications, ensuring comfort and efficiency throughout your environment.

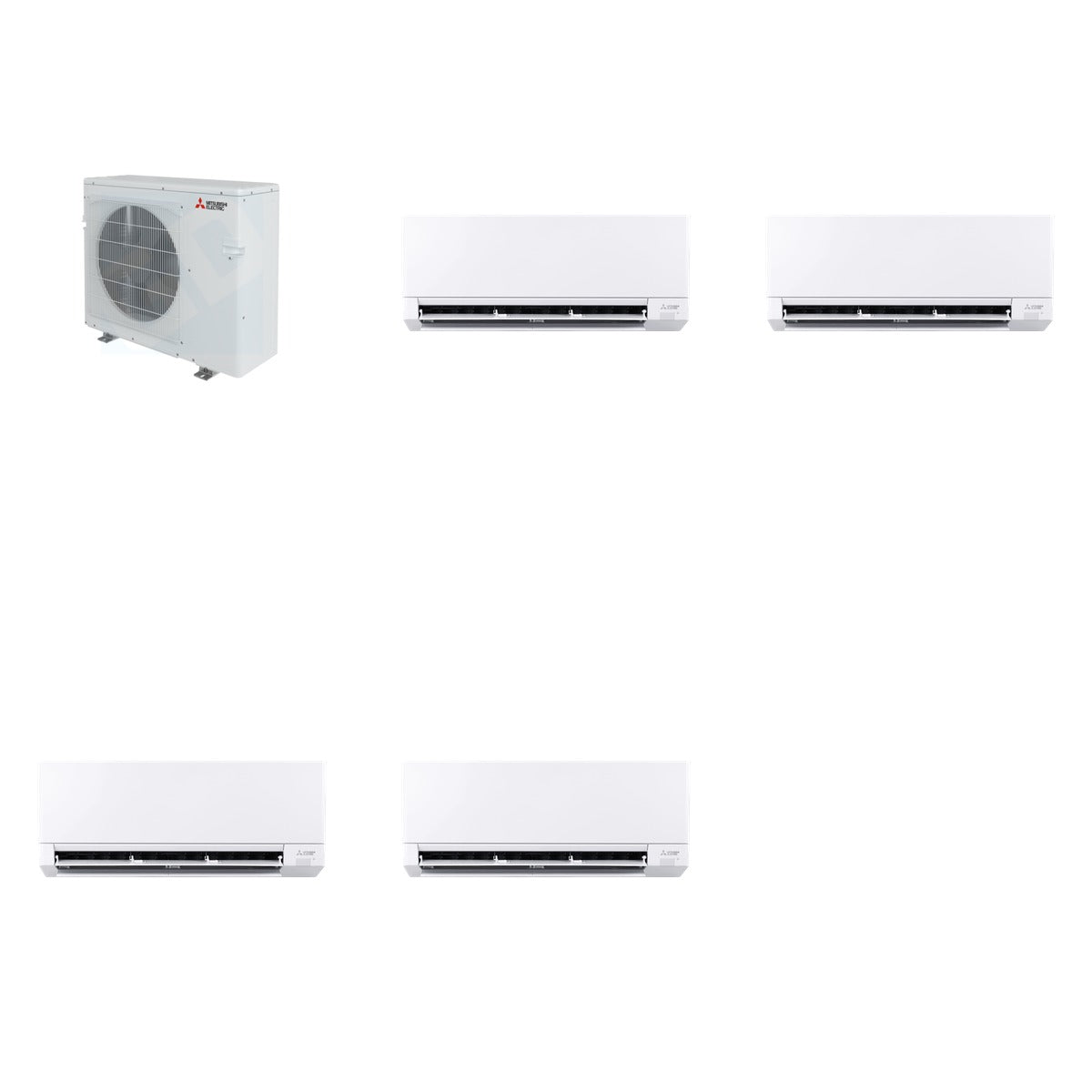

What's Included

• MITSUBISHI ELECTRIC MXZ-5D36NL - Mitsubishi Electric MXZ-5D36NL 36k BTU M-Series Outdoor Condenser (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX06NL - Mitsubishi Electric MSZ-GX06NL R454B 6k BTU Heat Pump Wall Mount Air Handler (Qty x2)
• MITSUBISHI ELECTRIC MSZ-GX12NL - Mitsubishi Electric MSZ-GX12NL R454B 12k BTU Heat Pump Wall Mount Air Handler (Qty x2)

Key Details

• Weight of Bundle: 282 lb (Mitsubishi 194 lb + Mitsubishi 44 lb + Mitsubishi 44 lb)
• Cooling Capacity: 36,400 BTU/h (MXZ-5D36NL), 6,000 BTU/h (MSZ-GX06NL), 12,000 BTU/h (MSZ-GX12NL)
• Heating Capacity: 43,000 BTU/h (MXZ-5D36NL), 7,200 BTU/h (MSZ-GX06NL), 14,400 BTU/h (MSZ-GX12NL)
• Refrigerant Type: R454B
• Voltage: 208/230V
• Sound Level: As low as 19 dB(A)
• Multi-Zone Compatibility: Yes
• Dimensions (MXZ-5D36NL): 31.375 in (H) x 37.406 in (W) x 13 in (D)
• Dimensions (MSZ-GX06NL): 11.781 in (H) x 31.39 in (W) x 9.65 in (D)
• Dimensions (MSZ-GX12NL): 11.77 in (H) x 31.39 in (W) x 9.65 in (D)

Use & Compatibility

This bundle is designed for efficient heating and cooling in both residential and commercial settings. The MXZ-5D36NL outdoor condenser can connect to multiple indoor units, making it suitable for various configurations. The MSZ-GX06NL and MSZ-GX12NL air handlers are perfect for enhancing comfort in individual rooms or larger spaces, providing flexibility and control over your climate needs.
