Mitsubishi Multi-Zone 36400 BTU R-454B 20 SEER2 4-Zone 2'x2' Ceiling Cassette Mini Split Heat Pump System - 9K+9K+9K+9K

Description

This comprehensive bundle features the Mitsubishi Electric MXZ-5D36NL outdoor condenser and four SLZ-AF09NL indoor units, along with the necessary SLP-18FAU grilles for optimal air distribution. Designed for multi-zone applications, this system provides efficient heating and cooling for up to five zones, making it ideal for both residential and commercial spaces. The inverter-driven technology ensures energy efficiency and tailored climate control, while the sleek ceiling cassette design of the indoor units allows for discreet installation. With this bundle, you can achieve a comfortable environment in various settings while benefiting from advanced features and reliable performance.

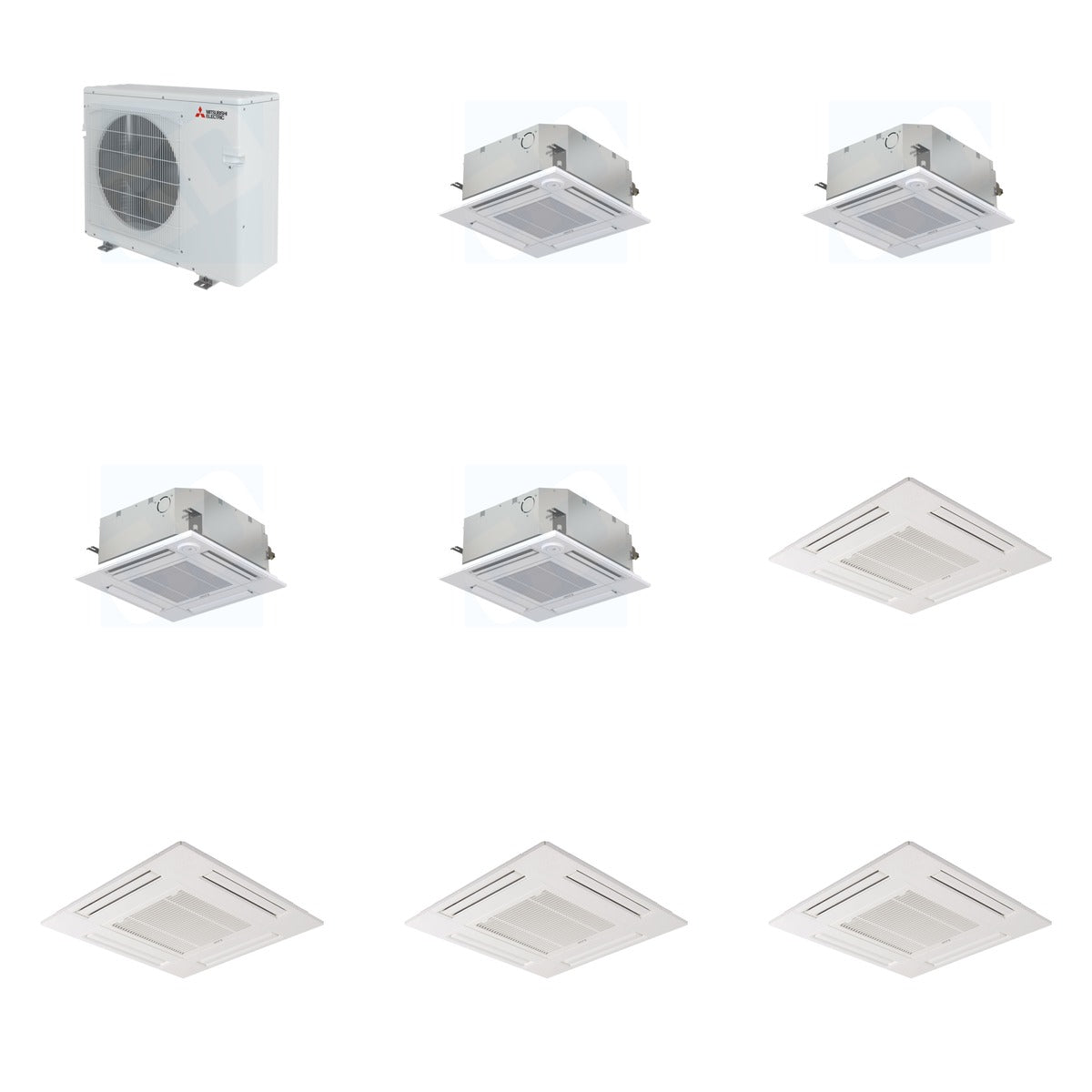

What's Included

• MITSUBISHI ELECTRIC MXZ-5D36NL - Mitsubishi Electric MXZ-5D36NL 36k BTU (3.0 Ton) M-Series Outdoor Condenser (Qty x1)
• MITSUBISHI ELECTRIC SLZ-AF09NL - Mitsubishi Electric SLZ-AF09NL M-Series - Multi or Single-Zone - 9k BTU (Qty x4)

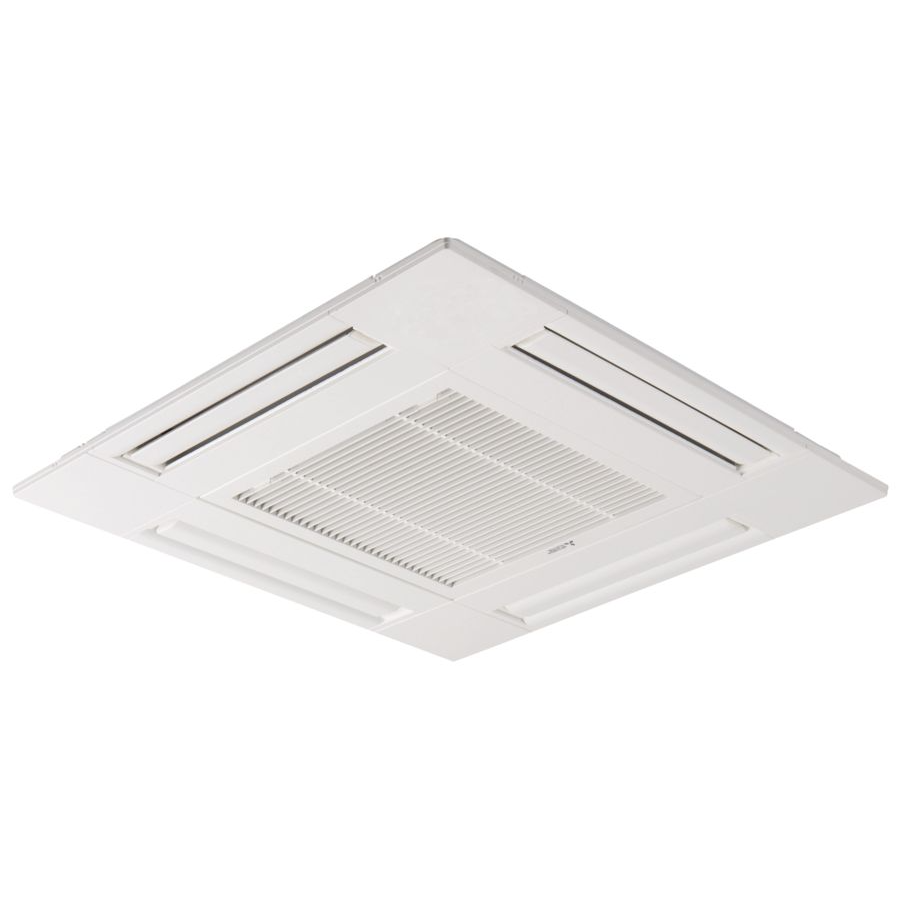

• MITSUBISHI ELECTRIC SLP-18FAU - Mitsubishi Electric SLP-18FAU - (Grille for SLZ-AF Series) (Qty x4)

Key Details

• Weight of Bundle: 354 lb (Mitsubishi 194 lb + Mitsubishi 132 lb + Mitsubishi 28 lb)
• Cooling Capacity: 36,400 BTU/h
• Heating Capacity: 43,000 BTU/h
• Indoor Unit Cooling BTU: 9,000
• Indoor Unit Heating BTU: 12,000
• Refrigerant Type: R-454B
• Voltage: 208/230V
• Outdoor Unit Dimensions: 31.375 in H x 37.406 in W x 13 in D
• Indoor Unit Dimensions: 8.1875 in H x 22.4375 in W x 22.4375 in D
• Sound Level: 25 dB (minimum)

Use & Compatibility

This bundle is designed for efficient heating and cooling in multi-zone environments, making it compatible with various residential and commercial systems. The outdoor condenser connects seamlessly with the indoor units, providing customizable climate control throughout different spaces. Ideal for installations where discreet air distribution is desired, the ceiling cassette units fit perfectly within standard ceiling grids.
