Mitsubishi Multi-Zone 36400 BTU R-454B 20 SEER2 3-Zone Wall-Mounted Mini Split Heat Pump System - 9K+9K+18K

Description

This comprehensive HVAC bundle features top-of-the-line Mitsubishi Electric products designed to provide efficient heating and cooling solutions for both residential and commercial spaces. The MXZ-5D36NL outdoor condenser serves as the powerhouse, capable of supporting up to five indoor units, while the MSZ-GX09NL and MSZ-GX18NL wall-mounted air handlers deliver tailored comfort in individual zones. With advanced features like built-in Wi-Fi, superior filtration systems, and energy-efficient operation, this bundle ensures optimal climate control and air quality for diverse environments.

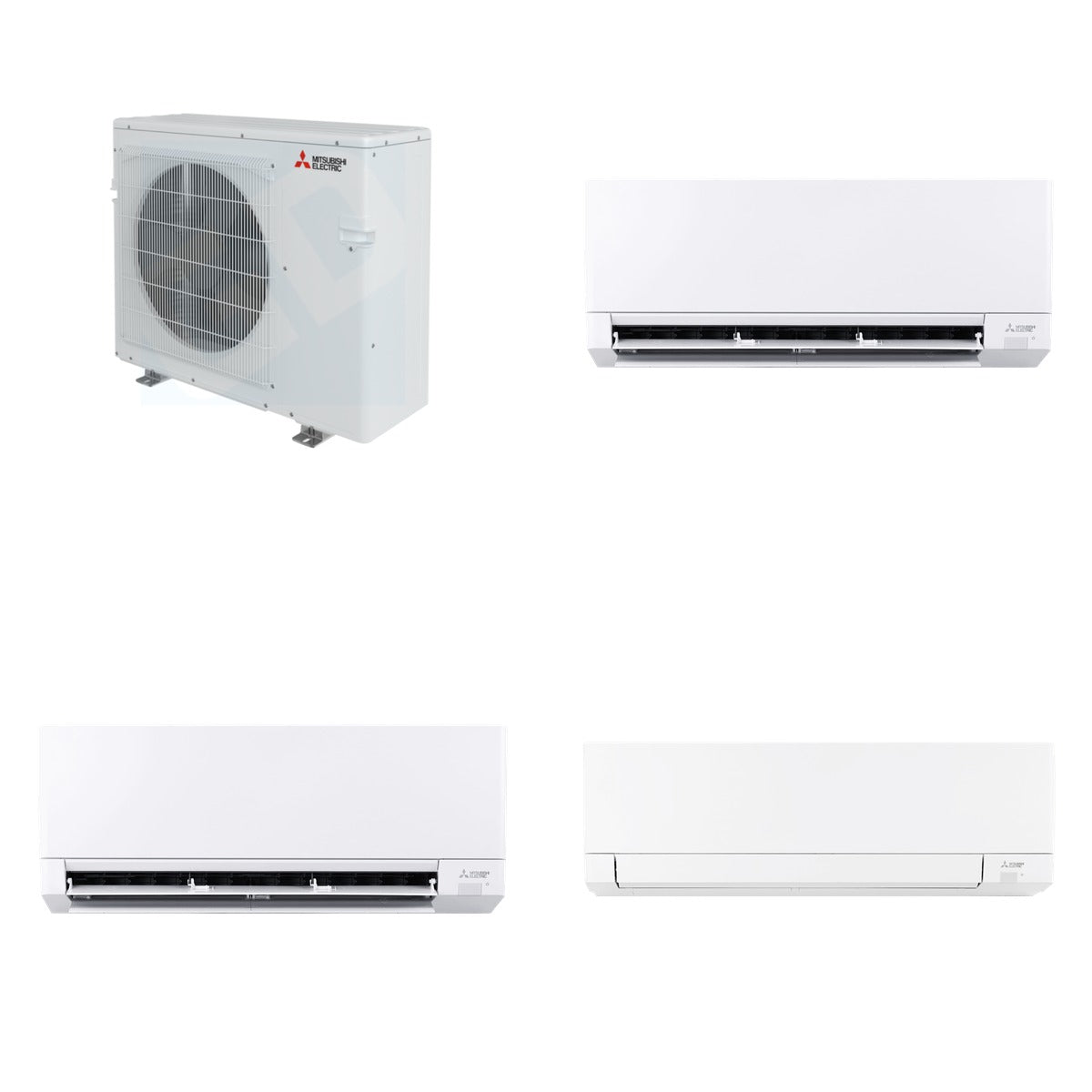

What's Included

• MITSUBISHI ELECTRIC MXZ-5D36NL - 36k BTU M-Series Outdoor Condenser (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX09NL - R454B 9k BTU Heat Pump Wall Mount Air Handler (Qty x2)
• MITSUBISHI ELECTRIC MSZ-GX18NL - R454B 18k BTU Heat Pump Wall Mount Air Handler (Qty x1)

Key Details

• Weight of Bundle: 266 lb (Mitsubishi 194 lb + Mitsubishi 44 lb + Mitsubishi 28 lb)
• Cooling Capacity: 36,400 BTU (MXZ-5D36NL), 9,000 BTU (MSZ-GX09NL), 18,000 BTU (MSZ-GX18NL)
• Heating Capacity: 43,000 BTU (MXZ-5D36NL), 10,900 BTU (MSZ-GX09NL), 21,600 BTU (MSZ-GX18NL)
• Refrigerant Type: R-454B
• Voltage: 208/230V
• SEER2 Ratings: Up to 28.4 (MSZ-GX09NL), 22.5 (MSZ-GX18NL)
• Noise Levels: Minimum 19 dB (MSZ-GX09NL), Maximum 49 dB (MSZ-GX18NL)
• Dimensions (Outdoor Unit): 31.375 in H x 37.406 in W x 13 in D (MXZ-5D36NL)
• Dimensions (Indoor Unit): 12.812 in H x 43.312 in W x 10.125 in D (MSZ-GX18NL)

Use & Compatibility

This bundle is ideal for multi-zone heating and cooling applications, making it compatible with various residential and commercial systems. The MXZ-5D36NL outdoor unit can connect with the MSZ-GX09NL and MSZ-GX18NL indoor units, providing flexibility in installation and ensuring efficient climate control across multiple spaces.
