Mitsubishi Multi-Zone 36400 BTU R-454B 20 SEER2 3-Zone Wall-Mounted Mini Split Heat Pump System - 12K+12K+12K

Description

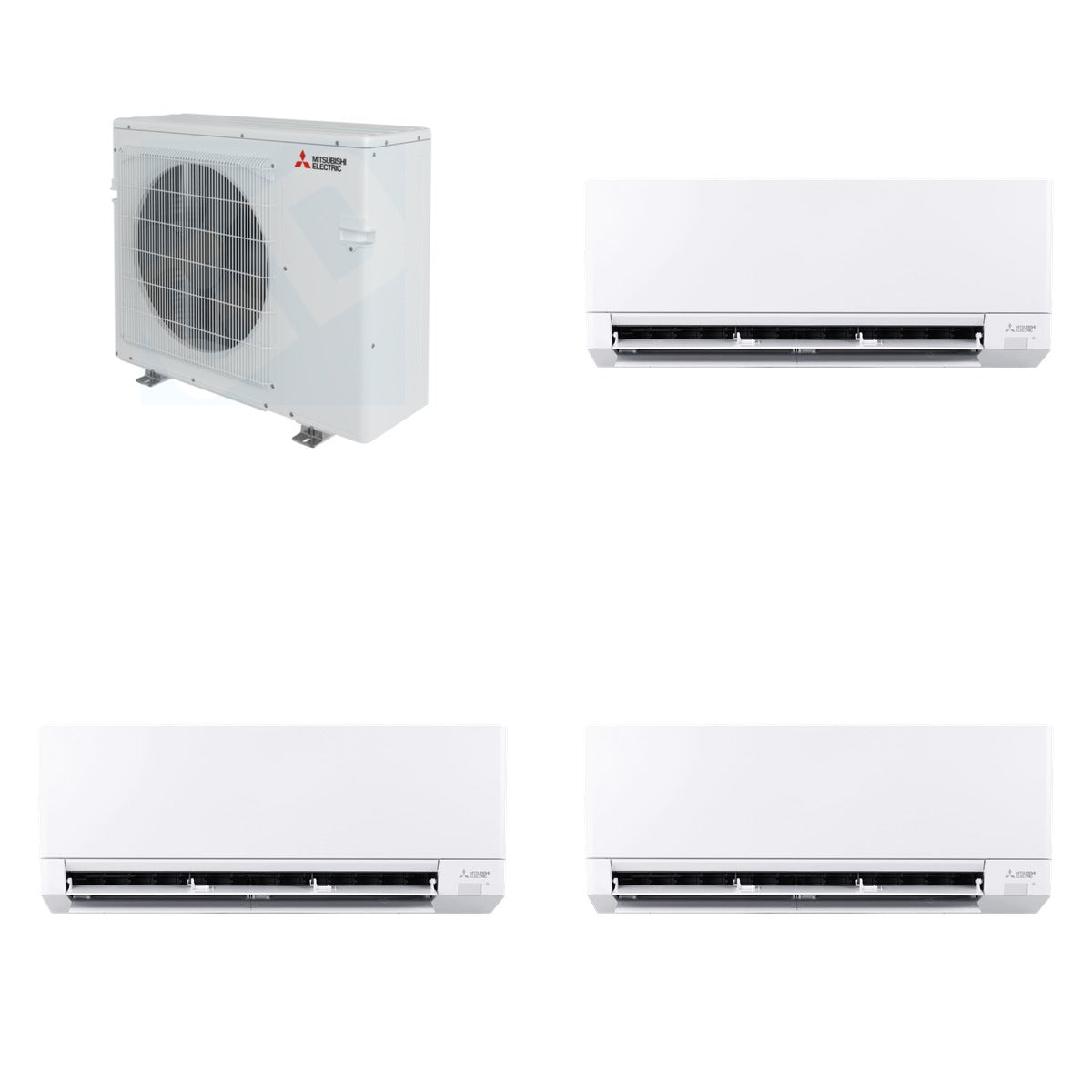

This bundle features the Mitsubishi Electric MXZ-5D36NL outdoor condenser and three MSZ-GX12NL wall mount air handlers, providing a comprehensive solution for multi-zone heating and cooling. The MXZ-5D36NL serves as a powerful 36,000 BTU outdoor unit capable of supporting up to five indoor zones, while the MSZ-GX12NL air handlers deliver efficient cooling and heating with a sleek design and whisper-quiet operation. This combination ensures optimal climate control across various spaces, making it ideal for both residential and commercial applications.

What's Included

• MITSUBISHI ELECTRIC MXZ-5D36NL - Mitsubishi Electric MXZ-5D36NL 36k BTU (3.0 Ton) M-Series Outdoor Condenser (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX12NL - Mitsubishi Electric MSZ-GX12NL R454B 12k BTU Heat Pump Wall Mount Air Handler (Qty x3)

Key Details

• Weight of Bundle: 260 lb (Mitsubishi 194 lb + Mitsubishi 66 lb)
• Cooling Capacity: 36,400 BTU/h (MXZ-5D36NL)
• Heating Capacity: 43,000 BTU/h (MXZ-5D36NL)
• Cooling Capacity: 12,000 BTU/h (MSZ-GX12NL)
• Heating Capacity: 14,400 BTU/h (MSZ-GX12NL)
• SEER2: Up to 28.4 (MSZ-GX12NL)
• Refrigerant: R454B
• Voltage: 208/230V
• Outdoor Unit Dimensions: 31.375 in (H) x 37.406 in (W) x 13 in (D)
• Indoor Unit Dimensions: 11.77 in (H) x 31.39 in (W) x 9.65 in (D)
• Sound Level: As low as 19 dB(A) (MSZ-GX12NL)

Use & Compatibility

This bundle is designed for efficient heating and cooling in multi-zone environments. The MXZ-5D36NL outdoor unit can connect to up to five indoor MSZ-GX12NL air handlers, making it perfect for homes or businesses with varying climate control needs. Ideal for residential and commercial systems, this combination offers advanced features and energy-efficient performance.
