Mitsubishi Multi-Zone 36400 BTU R-454B 20 SEER2 3-Zone Wall-Mounted Hyper Heat Mini Split Heat Pump System - 9K+9K+9K

Description

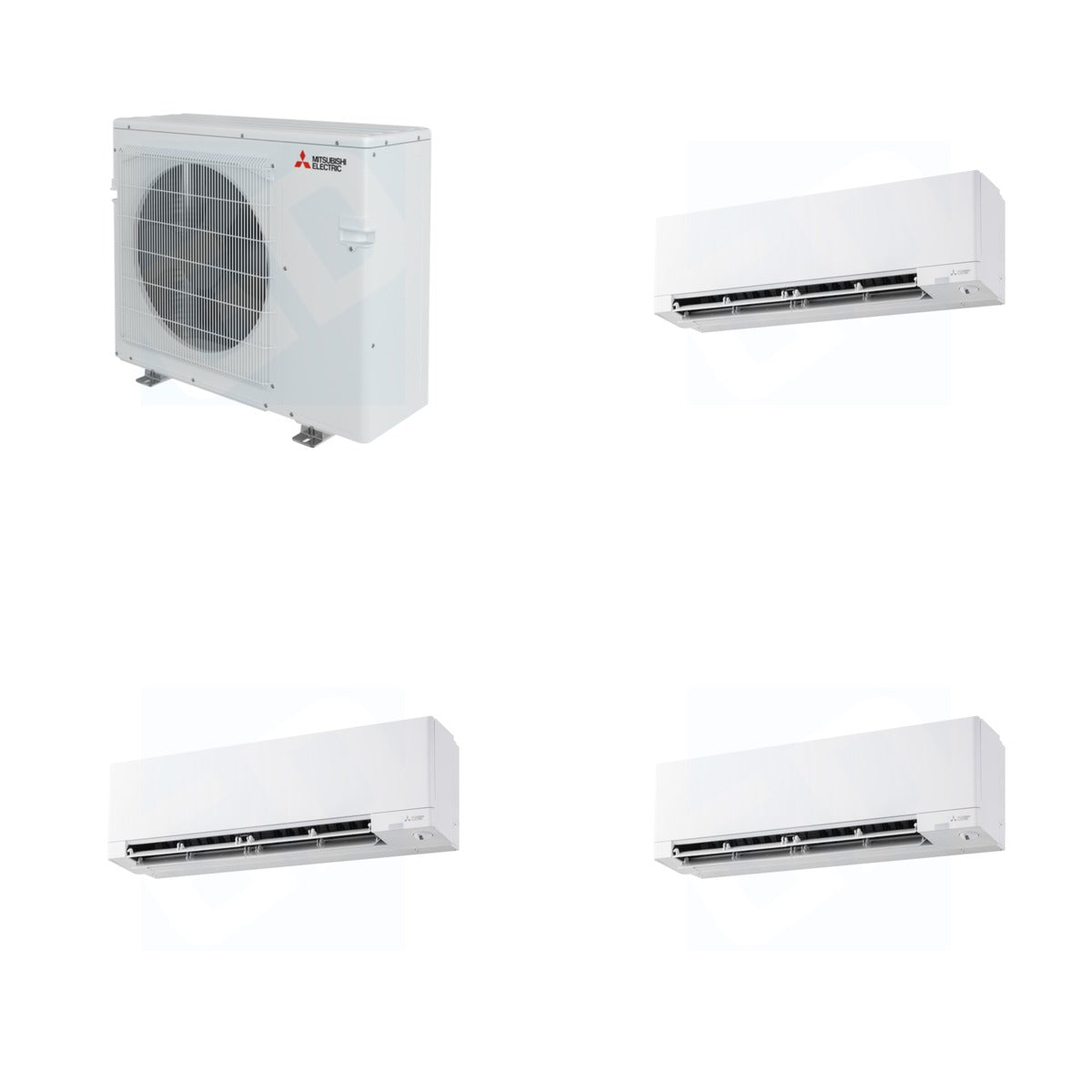

This comprehensive HVAC bundle includes the Mitsubishi Electric MXZ-5D36NL outdoor condenser and three MSZ-FX09NL wall-mounted air handlers, providing an efficient and versatile solution for both heating and cooling needs. The MXZ-5D36NL is designed to support up to five zones, making it ideal for larger spaces or multi-room applications. The MSZ-FX09NL units feature advanced filtration and smart technology, ensuring a comfortable and healthy indoor environment. Together, these components deliver optimal climate control while maximizing energy efficiency.

What's Included

• MITSUBISHI ELECTRIC MXZ-5D36NL - Mitsubishi Electric MXZ-5D36NL 36k BTU (3.0 Ton) M-Series Outdoor Condenser (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX09NL - Mitsubishi Electric MSZ-FX09NL FX-Series Wall Mounted Unit 9k BTU Hyper Heat Air Handler (Qty x3)

Key Details

• Weight of Bundle: 303.2 lb (Mitsubishi 194 lb + Mitsubishi 109.2 lb)
• Cooling Capacity: 36,400 BTU (MXZ-5D36NL)
• Heating Capacity: 43,000 BTU (MXZ-5D36NL)
• Indoor Unit Cooling Capacity: 9,000 BTU (MSZ-FX09NL)
• Voltage: 208/230V
• Refrigerant Type: R-454B
• Outdoor Unit Dimensions: 31.375" H x 37.406" W x 13" D
• Indoor Unit Dimensions: 12" H x 39.27" W x 9.75" D
• Noise Level: as low as 20 dB (MSZ-FX09NL)

Use & Compatibility

This bundle is perfect for residential and commercial applications, providing efficient heating and cooling for up to five zones. The MXZ-5D36NL outdoor unit is compatible with multiple indoor units, while the MSZ-FX09NL air handlers are designed for both single-zone and multi-zone systems, making them a versatile choice for various environments.
