Mitsubishi Multi-Zone 36400 BTU R-454B 20 SEER2 3-Zone Wall-Mounted Hyper Heat Mini Split Heat Pump System - 12K+12K+12K

Description

This comprehensive bundle features the Mitsubishi Electric MXZ-5D36NL outdoor condenser and three MSZ-FX12NL wall-mounted air handlers, providing an efficient and versatile heating and cooling solution for both residential and commercial spaces. The MXZ-5D36NL serves as a powerful multi-zone heat pump, capable of supporting up to five indoor units, while the MSZ-FX12NL air handlers deliver exceptional performance with advanced filtration and smart control features. Together, they ensure optimal climate control, energy efficiency, and enhanced comfort across multiple zones, making this bundle an ideal choice for tailored temperature regulation.

What's Included

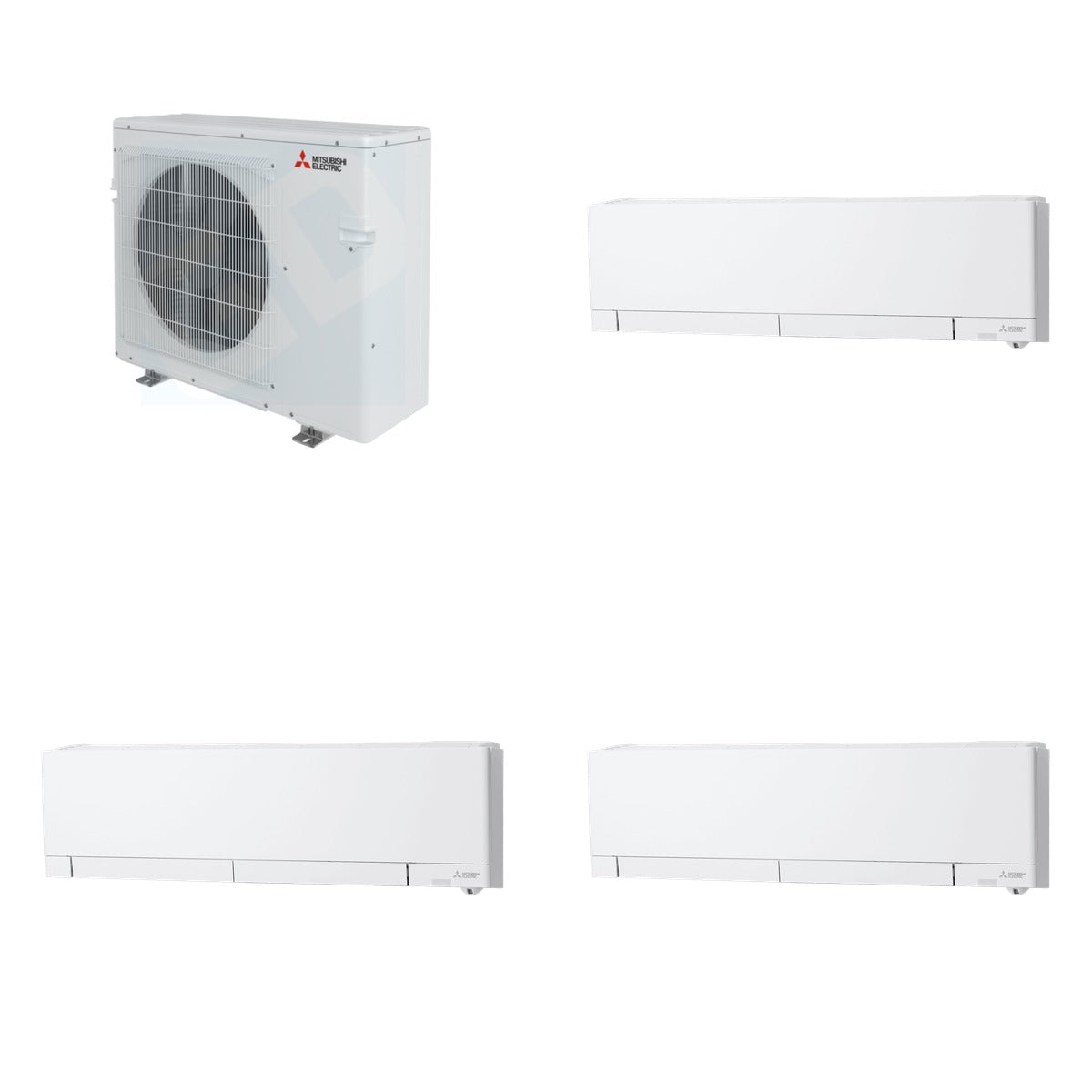

• MITSUBISHI ELECTRIC MXZ-5D36NL - Mitsubishi Electric MXZ-5D36NL 36k BTU (3.0 Ton) M-Series Outdoor Condenser (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX12NL - Mitsubishi Electric MSZ-FX12NL FX-Series Wall Mounted Unit 12k BTU Hyper Heat Air Handler (Qty x3)

Key Details

• Weight of Bundle: 303.2 lb (Mitsubishi 194 lb + Mitsubishi 109.2 lb)
• Cooling Capacity: 36,400 BTU (MXZ-5D36NL)
• Heating Capacity: 43,000 BTU (MXZ-5D36NL)
• Cooling Capacity: 12,000 BTU (MSZ-FX12NL)
• Heating Capacity: 13,200 BTU (MSZ-FX12NL)
• Refrigerant Type: R-454B
• Voltage: 208/230V
• Outdoor Unit Dimensions: 31.375 in H x 37.406 in W x 13 in D (MXZ-5D36NL)
• Wall Unit Dimensions: 12 in H x 39.27 in W x 9.75 in D (MSZ-FX12NL)
• SEER2 Rating: Up to 35 (MSZ-FX12NL)
• HSPF2 Rating: Up to 13.3 (MSZ-FX12NL)

Use & Compatibility

This bundle is designed for both heating and cooling applications, making it suitable for a variety of environments. The MXZ-5D36NL outdoor condenser can support up to five MSZ-FX12NL air handlers, allowing for flexible installation in multi-zone systems. Ideal for residential and commercial use, this combination ensures efficient climate control tailored to your specific needs.
