Mitsubishi Multi-Zone 36400 BTU R-454B 20 SEER2 3-Zone 2'x2' Ceiling Cassette Mini Split Heat Pump System - 9K+9K+9K

Description

This comprehensive HVAC bundle is designed to provide efficient climate control for both residential and commercial spaces. The Mitsubishi Electric MXZ-5D36NL outdoor condenser serves as the powerhouse, supporting up to five zones with its 36,400 BTU cooling capacity and advanced inverter technology. Paired with three Mitsubishi Electric SLZ-AF09NL indoor units, this system ensures optimal air distribution through customizable airflow patterns. The included SLP-18FAU grilles enhance the aesthetic appeal while ensuring effective air delivery, making this bundle an ideal solution for multi-zone heating and cooling needs.

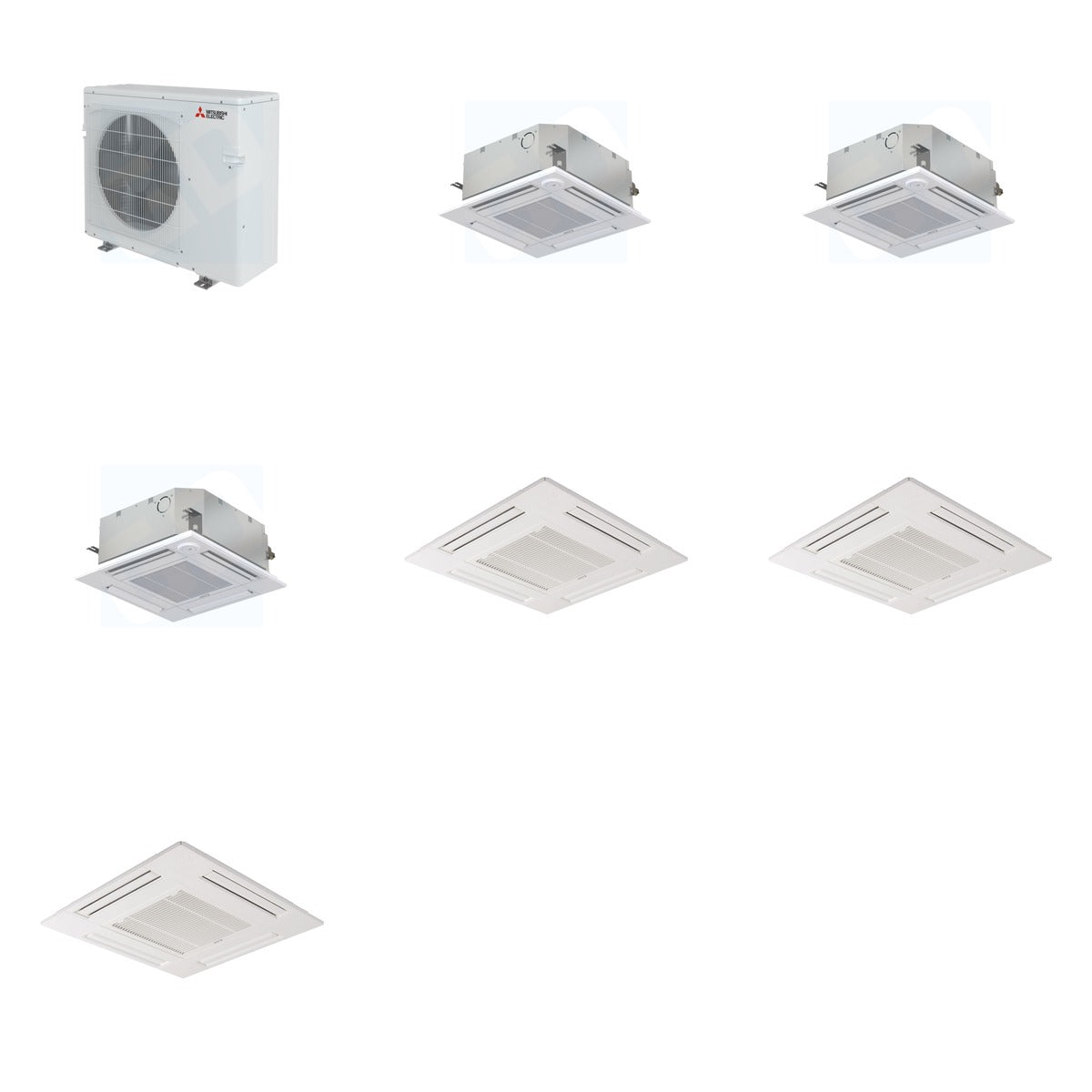

What's Included

• MITSUBISHI ELECTRIC MXZ-5D36NL - Mitsubishi Electric MXZ-5D36NL 36k BTU (3.0 Ton) M-Series Outdoor Condenser (Qty x1)
• MITSUBISHI ELECTRIC SLZ-AF09NL - Mitsubishi Electric SLZ-AF09NL M-Series - Multi or Single-Zone - 9k BTU - R-454B (Qty x3)

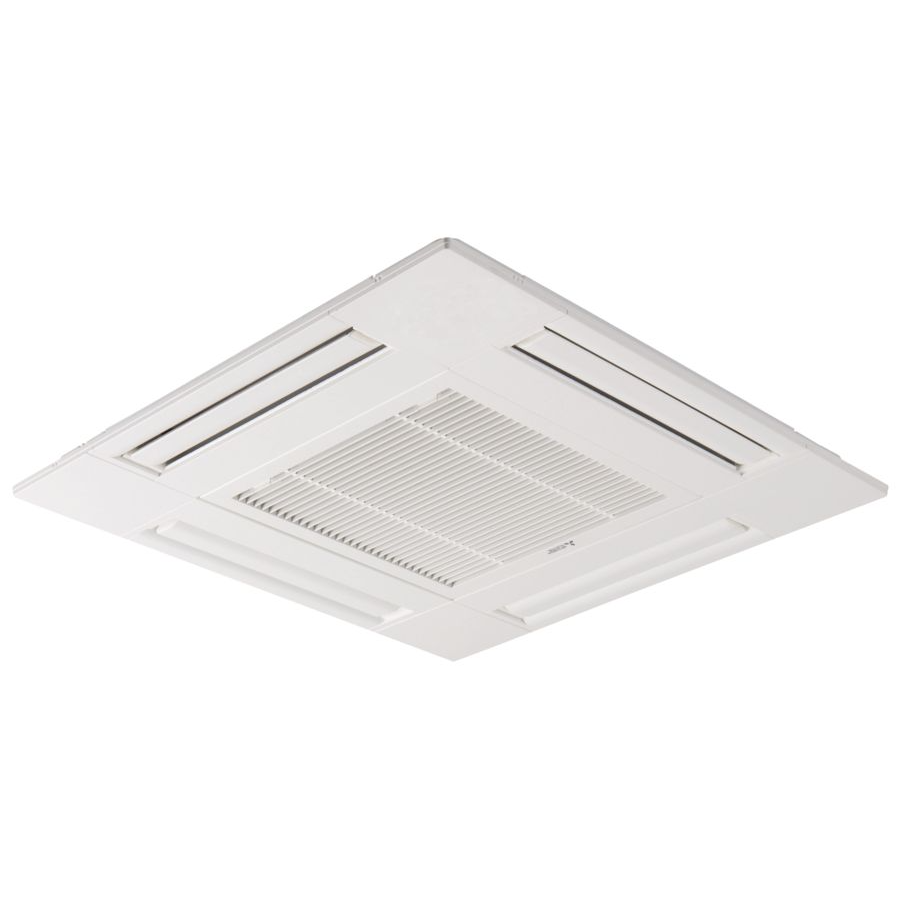

• MITSUBISHI ELECTRIC SLP-18FAU - Mitsubishi Electric SLP-18FAU - (Grille for SLZ-AF Series) (Qty x3)

Key Details

• Weight of Bundle: 314 lb (Mitsubishi 194 lb + Mitsubishi 99 lb + Mitsubishi 21 lb)
• Cooling Capacity: 36,400 BTU (MXZ-5D36NL)
• Heating Capacity: 43,000 BTU (MXZ-5D36NL)
• Indoor Unit Cooling BTU: 9,000 BTU (SLZ-AF09NL)
• Voltage: 208/230V
• Refrigerant Type: R-454B
• Outdoor Unit Dimensions: 31.375 in H x 37.406 in W x 13 in D
• Indoor Unit Dimensions: 8.1875 in H x 22.4375 in W x 22.4375 in D
• Sound Level: 25 dB (minimum) to 31 dB (maximum) (SLZ-AF09NL)

Use & Compatibility

This bundle is perfect for multi-zone applications, allowing for customized heating and cooling in various spaces. The outdoor condenser is compatible with up to five indoor units, while the ceiling cassette indoor units fit seamlessly into standard ceiling grids, making them ideal for both residential and commercial installations.
