Mitsubishi Multi-Zone 36400 BTU R-454B 20 SEER2 3-Zone 2'x2' Ceiling Cassette Mini Split Heat Pump System - 9K+12K+15K

Description

This comprehensive HVAC bundle features a robust combination of Mitsubishi Electric products designed to provide efficient heating and cooling solutions for both residential and commercial spaces. The centerpiece is the Mitsubishi Electric MXZ-5D36NL outdoor condenser, capable of supporting up to five indoor units, making it ideal for multi-zone installations. Paired with the SLZ-AF09NL, SLZ-AF12NL, and SLZ-AF15NL indoor ceiling cassette units, this bundle ensures optimal air distribution and customizable climate control. The included SLP-18FAU grilles enhance the aesthetic and functional performance of the indoor units, creating a seamless integration into your environment.

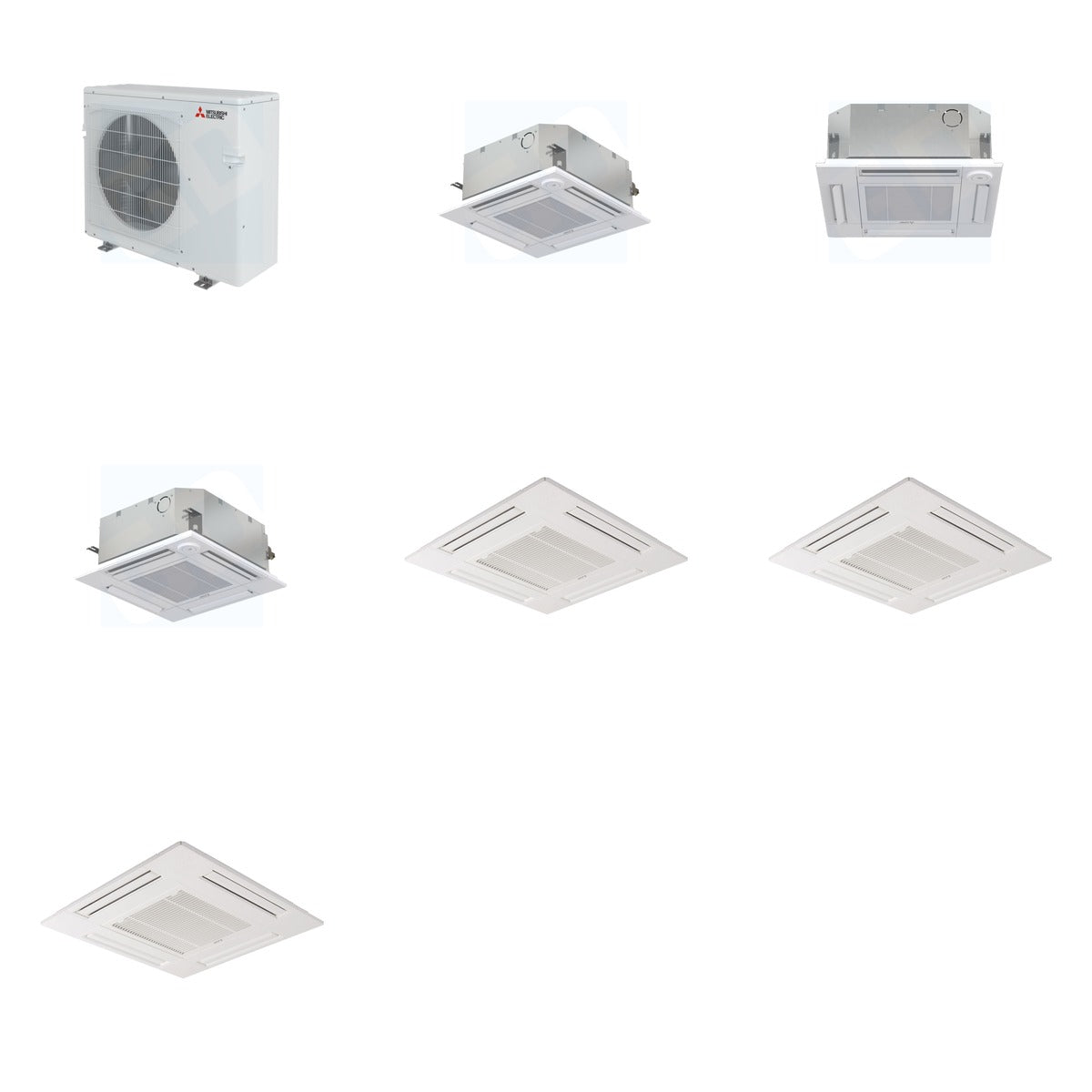

What's Included

• MITSUBISHI ELECTRIC MXZ-5D36NL - Mitsubishi Electric MXZ-5D36NL 36k BTU (3.0 Ton) M-Series Outdoor Condenser up to 5 Zones (Qty x1)
• MITSUBISHI ELECTRIC SLZ-AF09NL - Mitsubishi Electric SLZ-AF09NL M-Series - Multi or Single-Zone - 9k BTU - R-454B (Grille not included - SLP-18FAU) (Qty x1)
• MITSUBISHI ELECTRIC SLZ-AF12NL - Mitsubishi Electric SLZ-AF12NL M-Series - Multi or Single-Zone - 12k BTU - R-454B (Grille not included - SLP-18FAU) (Qty x1)
• MITSUBISHI ELECTRIC SLZ-AF15NL - Mitsubishi Electric SLZ-AF15NL M-Series - Multi or Single-Zone - 15k BTU - R-454B (Grille not included - SLP-18FAU) (Qty x1)
• MITSUBISHI ELECTRIC SLP-18FAU - Mitsubishi Electric SLP-18FAU - (Grille for SLZ-AF Series) (Qty x3)

Key Details

• Weight of Bundle: 314 lb (Mitsubishi 194 lb + Mitsubishi 33 lb + Mitsubishi 33 lb + Mitsubishi 33 lb + Mitsubishi 21 lb)
• Cooling Capacity: 36,400 BTU (MXZ-5D36NL), 9,000 BTU (SLZ-AF09NL), 12,000 BTU (SLZ-AF12NL), 15,000 BTU (SLZ-AF15NL)
• Heating Capacity: 43,000 BTU (MXZ-5D36NL), 12,000 BTU (SLZ-AF09NL), 15,000 BTU (SLZ-AF12NL), 18,000 BTU (SLZ-AF15NL)
• Refrigerant Type: R-454B
• Voltage: 208/230V
• Dimensions: Outdoor Unit - 31.375 x 37.406 x 13 inches; Indoor Units - 22.4375 x 22.4375 x 8.1875 inches
• Weight: Outdoor Unit - 132 lbs; Indoor Units - 31 lbs each
• Sound Level: Minimum 25 dB (SLZ-AF09NL) to Maximum 39 dB (SLZ-AF15NL)

Use & Compatibility

This bundle is designed for efficient heating and cooling in multi-zone applications. The outdoor condenser connects seamlessly with the indoor ceiling cassette units, making it suitable for a variety of installation types, including residential and commercial settings. The units are compatible with Mitsubishi Electric's M-Series systems, ensuring reliable performance and energy efficiency.
