Mitsubishi Multi-Zone 36400 BTU R-454B 20 SEER2 3-Zone 2'x2' Ceiling Cassette Mini Split Heat Pump System - 12K+12K+15K

Description

This comprehensive HVAC bundle is designed to provide efficient heating and cooling solutions for both residential and commercial spaces. Featuring the Mitsubishi Electric MXZ-5D36NL outdoor condenser, this multi-zone system can accommodate up to five indoor units, ensuring tailored climate control across various zones. The included SLZ-AF12NL and SLZ-AF15NL air handlers offer versatile installation options and advanced air management features, while the SLP-18FAU grilles ensure optimal air distribution. Together, these components create a powerful and flexible system that meets diverse climate needs with energy-efficient performance.

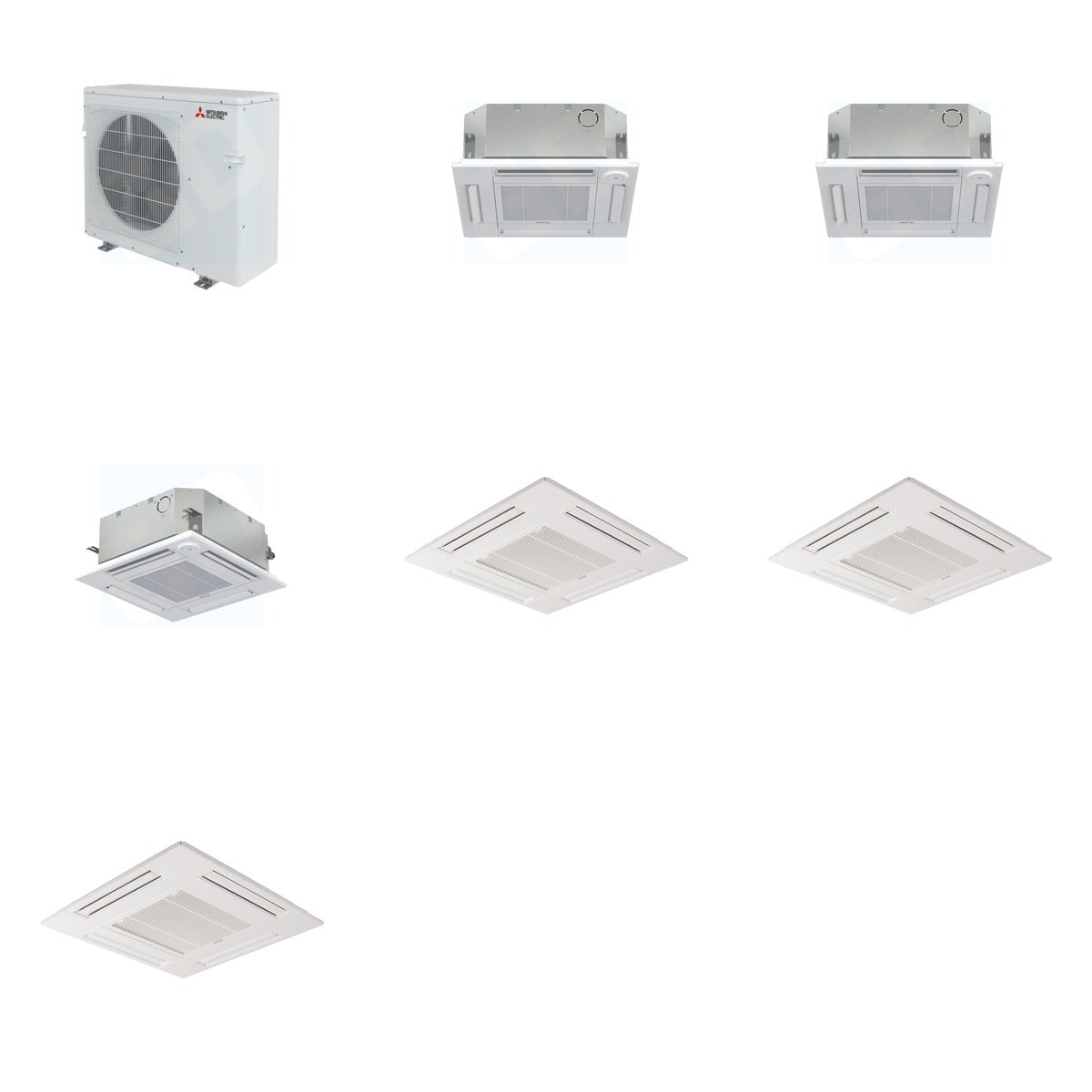

What's Included

• MITSUBISHI ELECTRIC MXZ-5D36NL - Mitsubishi Electric MXZ-5D36NL 36k BTU (3.0 Ton) M-Series Outdoor Condenser (Qty x1)
• MITSUBISHI ELECTRIC SLZ-AF12NL - Mitsubishi Electric SLZ-AF12NL M-Series - Multi or Single-Zone - 12k BTU - R-454B (Qty x2)
• MITSUBISHI ELECTRIC SLZ-AF15NL - Mitsubishi Electric SLZ-AF15NL M-Series - Multi or Single-Zone - 15k BTU - R-454B (Qty x1)
• MITSUBISHI ELECTRIC SLP-18FAU - Mitsubishi Electric SLP-18FAU - (Grille for SLZ-AF Series) (Qty x3)

Key Details

• Weight of Bundle: 314 lb (Mitsubishi 194 lb + Mitsubishi 66 lb + Mitsubishi 33 lb + Mitsubishi 21 lb)
• Cooling Capacity: 36,400 BTU/h (MXZ-5D36NL)
• Heating Capacity: 43,000 BTU/h (MXZ-5D36NL)
• Indoor Unit Capacity: 12,000 BTU (SLZ-AF12NL), 15,000 BTU (SLZ-AF15NL)
• Refrigerant Type: R-454B
• Voltage: 208/230V
• Outdoor Unit Dimensions: 31.375 x 37.406 x 13 inches
• Indoor Unit Dimensions: 22-7/16 x 22-7/16 x 8-4/16 inches (SLZ-AF12NL)
• Airflow: 230-335 CFM (SLZ-AF12NL and SLZ-AF15NL)
• Sound Level: 27 dB minimum (SLZ-AF15NL)

Use & Compatibility

This bundle is ideal for both residential and commercial applications, providing flexible heating and cooling options. The outdoor condenser is compatible with up to five indoor units, allowing for customized climate control in multiple zones. The air handlers are suitable for ceiling mounting and can be integrated into existing mini-split systems, making them versatile for various installation environments.
