Mitsubishi Multi-Zone 36400 BTU R-454B 20 SEER2 2-Zone Wall-Mounted Mini Split Heat Pump System - 12K+15K

Description

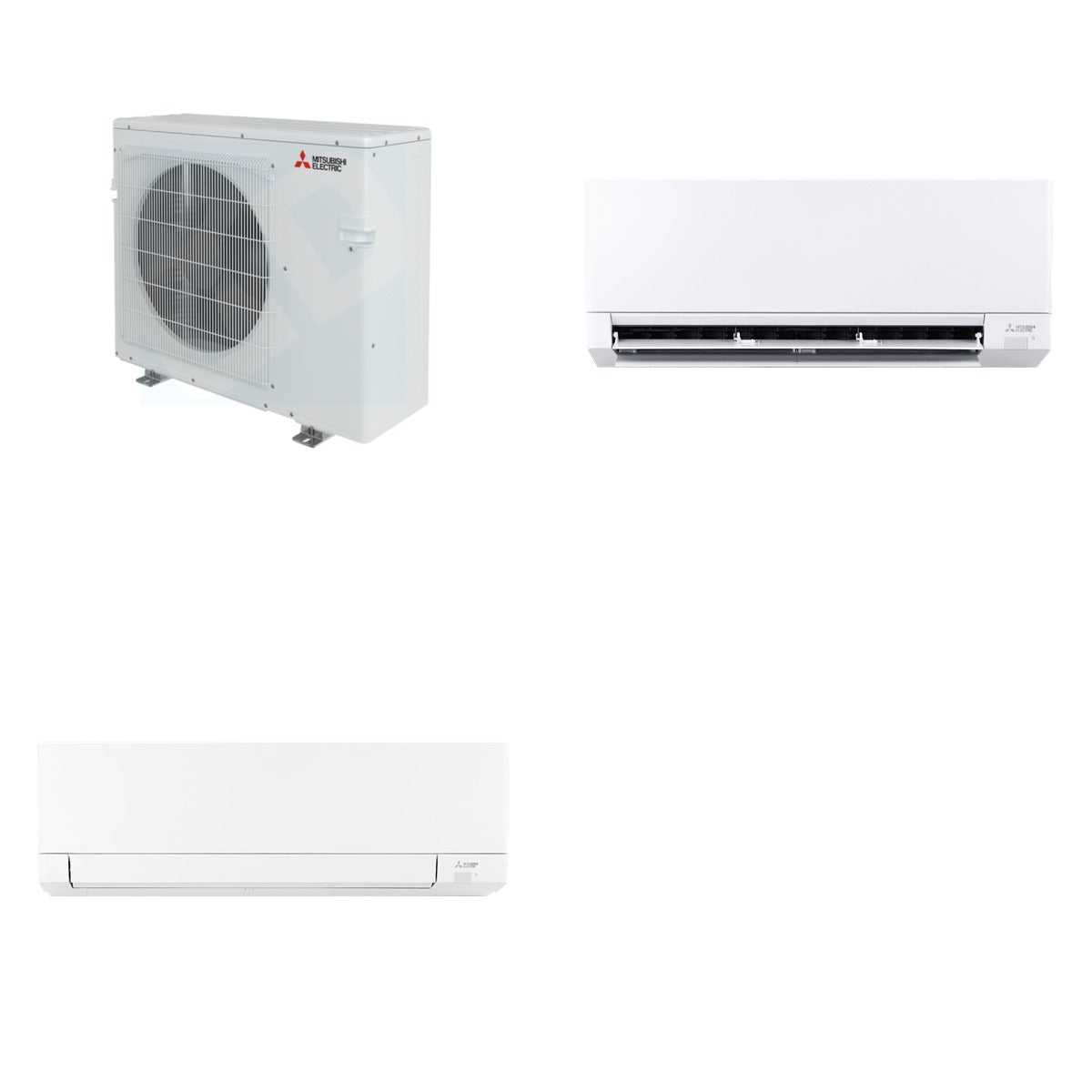

This comprehensive HVAC bundle features the Mitsubishi Electric MXZ-5D36NL multi-zone outdoor condenser paired with two advanced wall-mounted air handlers, the MSZ-GX12NL and MSZ-GX15NL. This combination is ideal for creating a customizable heating and cooling solution for residential or commercial spaces. The outdoor unit supports up to five zones, allowing for tailored climate control, while the wall-mounted air handlers ensure whisper-quiet operation and energy efficiency. With built-in Wi-Fi and advanced filtration systems, this bundle not only enhances comfort but also promotes cleaner air quality.

What's Included

• MITSUBISHI ELECTRIC MXZ-5D36NL - Mitsubishi Electric MXZ-5D36NL 36k BTU M-Series Outdoor Condenser (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX12NL - Mitsubishi Electric MSZ-GX12NL R454B 12k BTU Heat Pump Wall Mount Air Handler (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX15NL - Mitsubishi Electric MSZ-GX15NL R454B 15k BTU Heat Pump Wall Mount Air Handler (Qty x1)

Key Details

• Weight of Bundle: 238 lb (Mitsubishi 194 lb + Mitsubishi 22 lb + Mitsubishi 22 lb)
• Cooling Capacity: 36,400 BTU (MXZ-5D36NL)
• Heating Capacity: 43,000 BTU (MXZ-5D36NL)
• Cooling Capacity: 12,000 BTU (MSZ-GX12NL)
• Heating Capacity: 14,400 BTU (MSZ-GX12NL)
• Cooling Capacity: 15,000 BTU (MSZ-GX15NL)
• Heating Capacity: 18,000 BTU (MSZ-GX15NL)
• SEER2: Up to 28.4 (MSZ-GX12NL)
• Refrigerant: R454B
• Voltage: 208/230V
• Outdoor Unit Dimensions: 31.375 in H x 37.406 in W x 13 in D
• Indoor Unit Dimensions (MSZ-GX12NL): 11.77 in H x 31.39 in W x 9.65 in D
• Indoor Unit Dimensions (MSZ-GX15NL): 11.77 in H x 31.40 in W x 9.65 in D

Use & Compatibility

This bundle is designed for both heating and cooling applications, making it suitable for various environments. The outdoor unit can connect to multiple indoor units, providing flexibility for single or multi-zone configurations. Ideal for residential and commercial use, these units are compatible with Mitsubishi Electric's mini-split systems, ensuring optimal performance and energy efficiency.
