Mitsubishi Multi-Zone 36400 BTU R-454B 20 SEER2 2-Zone 2'x2' Ceiling Cassette Mini Split Heat Pump System - 15K+15K

Description

This comprehensive bundle features the Mitsubishi Electric MXZ-5D36NL outdoor condenser and two SLZ-AF15NL indoor units, along with the necessary SLP-18FAU grilles for optimal air distribution. The MXZ-5D36NL is a powerful 36k BTU multi-zone heat pump that efficiently serves up to five zones, making it ideal for both residential and commercial applications. The SLZ-AF15NL indoor units provide versatile heating and cooling options, fitting seamlessly into standard ceiling grids. Together, these components ensure tailored climate control, energy efficiency, and reliable performance across various environments.

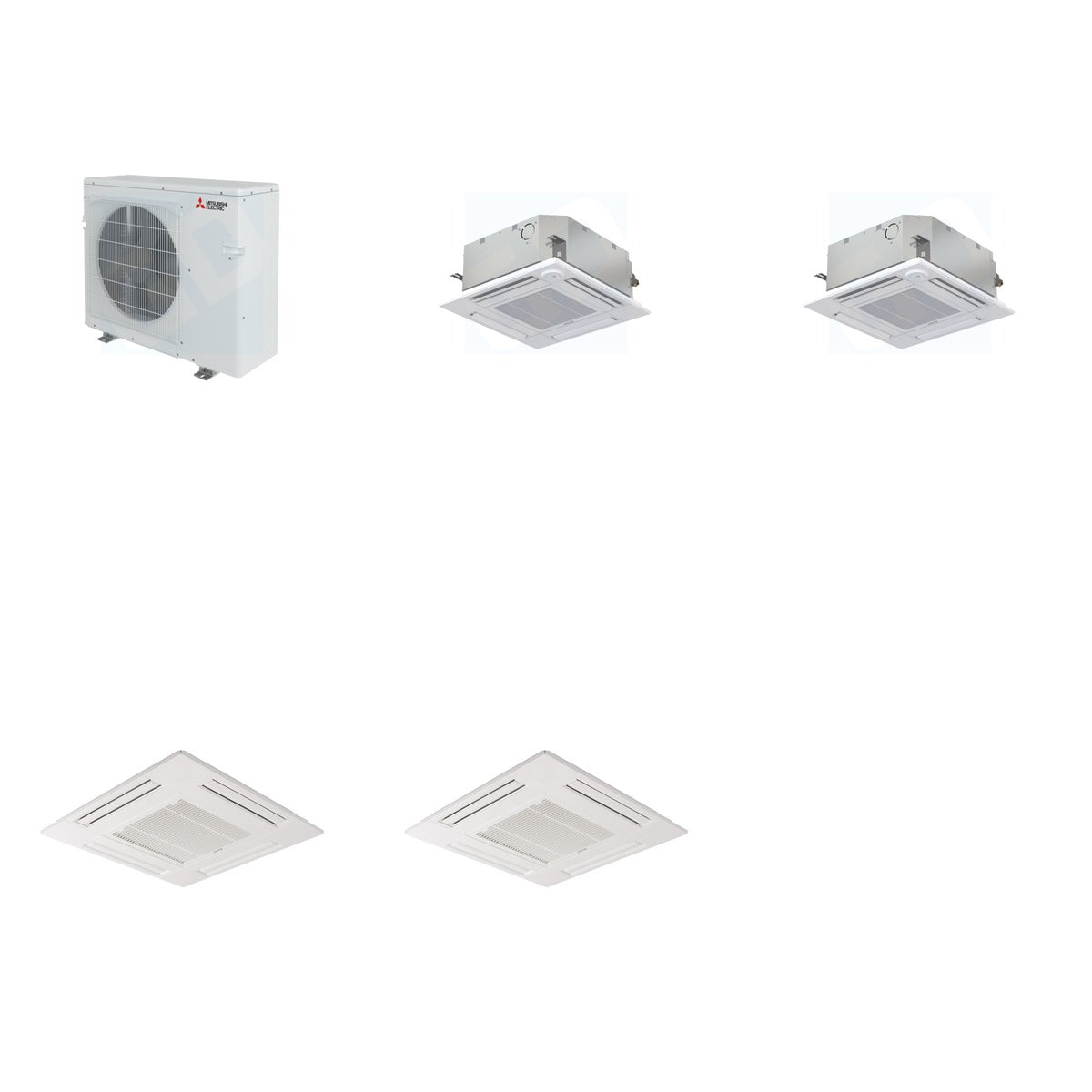

What's Included

• MITSUBISHI ELECTRIC MXZ-5D36NL - Mitsubishi Electric MXZ-5D36NL 36k BTU (3.0 Ton) M-Series Outdoor Condenser (Qty x1)

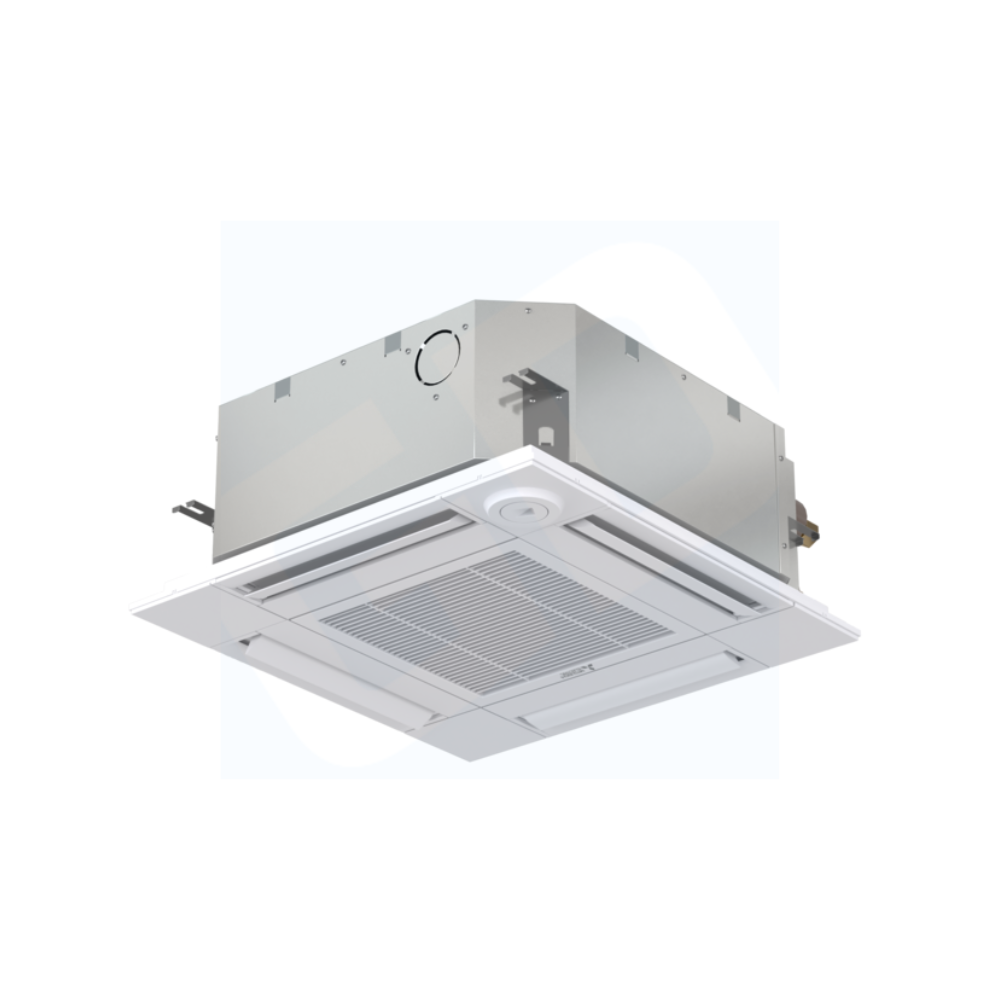

• MITSUBISHI ELECTRIC SLZ-AF15NL - Mitsubishi Electric SLZ-AF15NL M-Series - Multi or Single-Zone - 15k BTU - R-454B (Qty x2)

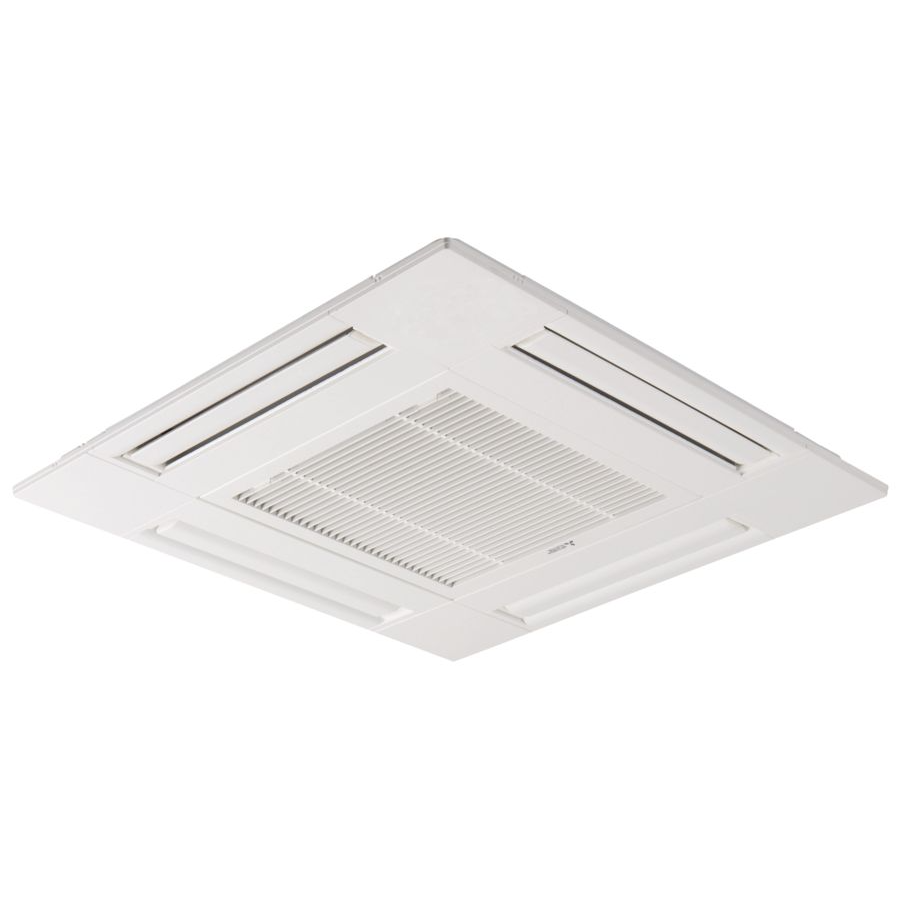

• MITSUBISHI ELECTRIC SLP-18FAU - Mitsubishi Electric SLP-18FAU - (Grille for SLZ-AF Series) (Qty x2)

Key Details

• Weight of Bundle: 274 lb (Mitsubishi 194 lb + Mitsubishi 66 lb + Mitsubishi 14 lb)
• Cooling Capacity: 36,400 BTU (MXZ-5D36NL)
• Heating Capacity: 43,000 BTU (MXZ-5D36NL)
• Indoor Unit Cooling Capacity: 15,000 BTU (SLZ-AF15NL)
• Indoor Unit Heating Capacity: 18,000 BTU (SLZ-AF15NL)
• Refrigerant Type: R-454B
• Voltage: 208/230V
• Outdoor Unit Dimensions: 31.375 x 37.406 x 13 inches
• Indoor Unit Dimensions: 8.1875 x 22.4375 x 22.4375 inches
• Sound Level: 27 dB (minimum) to 39 dB (maximum, SLZ-AF15NL)

Use & Compatibility

This bundle is designed for use in both residential and commercial spaces, providing efficient heating and cooling solutions. The MXZ-5D36NL outdoor unit is compatible with up to five indoor units, while the SLZ-AF15NL units are suitable for both multi-zone and single-zone applications. The included grilles ensure optimal air distribution for enhanced comfort.
