Mitsubishi Multi-Zone 36400 BTU R-454B 18 SEER2 2-Zone Multi-Position Air Handler Heat Pump System - 12K+24K

Description

The Mitsubishi Electric HVAC bundle is designed to provide efficient heating and cooling solutions for both residential and commercial applications. This comprehensive package includes a powerful outdoor condenser and two versatile ducted air handlers, enabling multi-zone climate control across various spaces. With advanced features such as variable speed inverter technology and flexible installation options, this bundle ensures optimal comfort and energy efficiency. The use of environmentally friendly R-454B refrigerant further enhances its appeal, making it a smart choice for eco-conscious consumers.

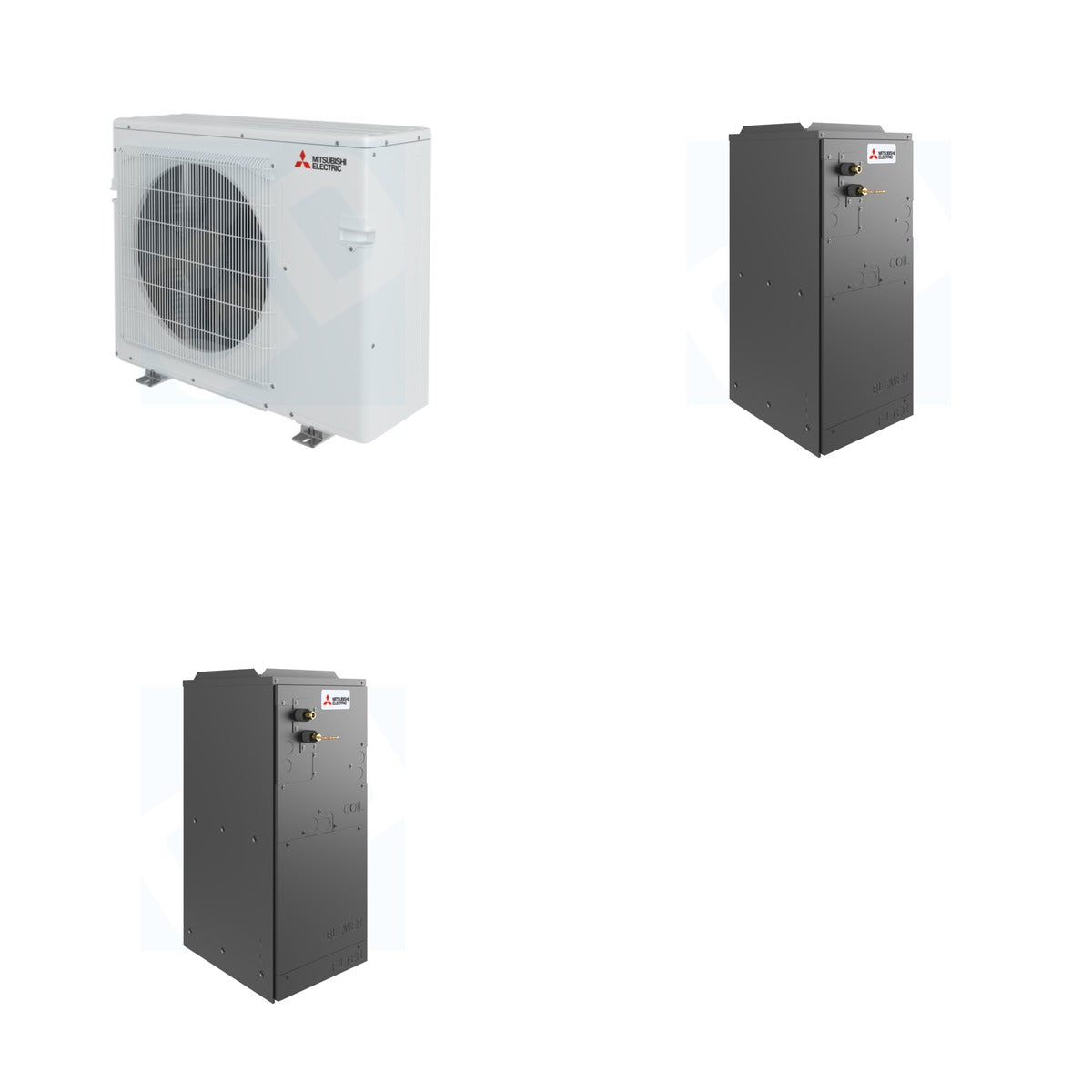

What's Included

• MITSUBISHI ELECTRIC MXZ-5D36NL - Mitsubishi Electric MXZ-5D36NL 36k BTU (3.0 Ton) M-Series Outdoor Condenser up to 5 Zones (Qty x1)

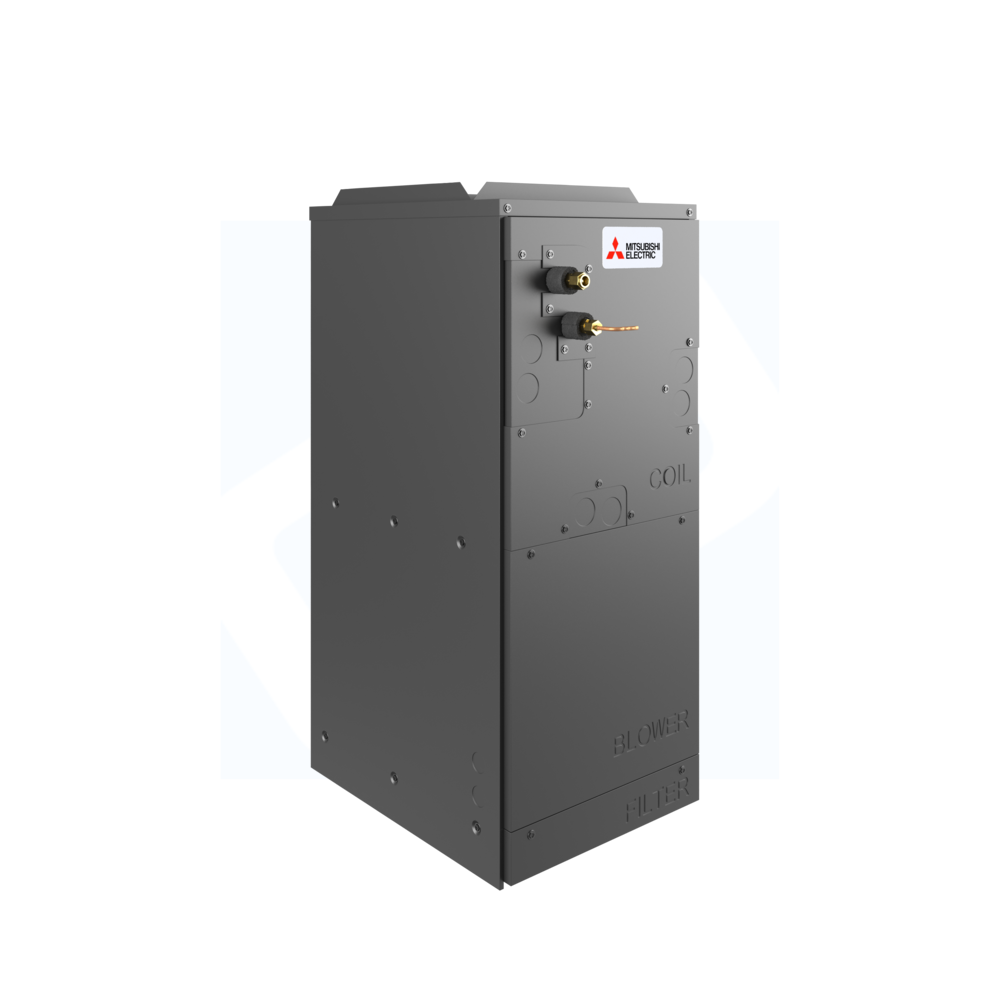

• MITSUBISHI ELECTRIC SVZ-AP12NL - Mitsubishi Electric SVZ-AP12NL AP-Series Ducted Air Handler Indoor Unit - Single-Zone - 12k BTU - R-454B (Qty x1)
• MITSUBISHI ELECTRIC SVZ-AP24NL - Mitsubishi Electric SVZ-AP24NL AP-Series Ducted Air Handler Indoor Unit - Single-Zone - 24k BTU - R-454B (Qty x1)

Key Details

• Weight of Bundle: 395 lb (Mitsubishi 194 lb + Mitsubishi 97 lb + Mitsubishi 104 lb)
• Cooling Capacity: 36,400 BTU/h (MXZ-5D36NL), 11,400 BTU/h (SVZ-AP12NL), 24,000 BTU (SVZ-AP24NL)
• Heating Capacity: 43,000 BTU/h (MXZ-5D36NL), 15,000 BTU/h (SVZ-AP12NL), 23,000 BTU (SVZ-AP24NL)
• Refrigerant Type: R-454B
• Voltage: 208/230V
• Dimensions: MXZ-5D36NL - 31.375 x 37.406 x 13 inches; SVZ-AP12NL/SVZ-AP24NL - 17 x 21-5/8 x 39-13/16 inches
• Noise Level: 36-45 dB(A) (SVZ-AP12NL/SVZ-AP24NL)
• WiFi Enabled: Yes (SVZ-AP12NL/SVZ-AP24NL)

Use & Compatibility

This HVAC bundle is ideal for both residential and commercial settings, providing efficient heating and cooling for multiple zones. The outdoor condenser connects seamlessly with the indoor air handlers, which can be installed in various orientations to suit different spaces. It is compatible with optional accessories such as electric heat kits and humidifier controls, enhancing its versatility.
