Mitsubishi Multi-Zone 36400 BTU R-454B 18 SEER2 2-Zone Multi-Position Air Handler Heat Pump System - 12K+18K

Description

This comprehensive HVAC bundle features top-of-the-line Mitsubishi Electric products designed to provide efficient heating and cooling solutions for both residential and commercial applications. The included MXZ-5D36NL outdoor condenser is capable of supporting up to five indoor units, making it ideal for multi-zone climate control. Paired with the SVZ-AP12NL and SVZ-AP18NL ducted air handlers, this bundle ensures optimal air distribution and temperature regulation across various spaces. With advanced features like variable speed inverter technology and compatibility with smart controls, this bundle offers both performance and convenience.

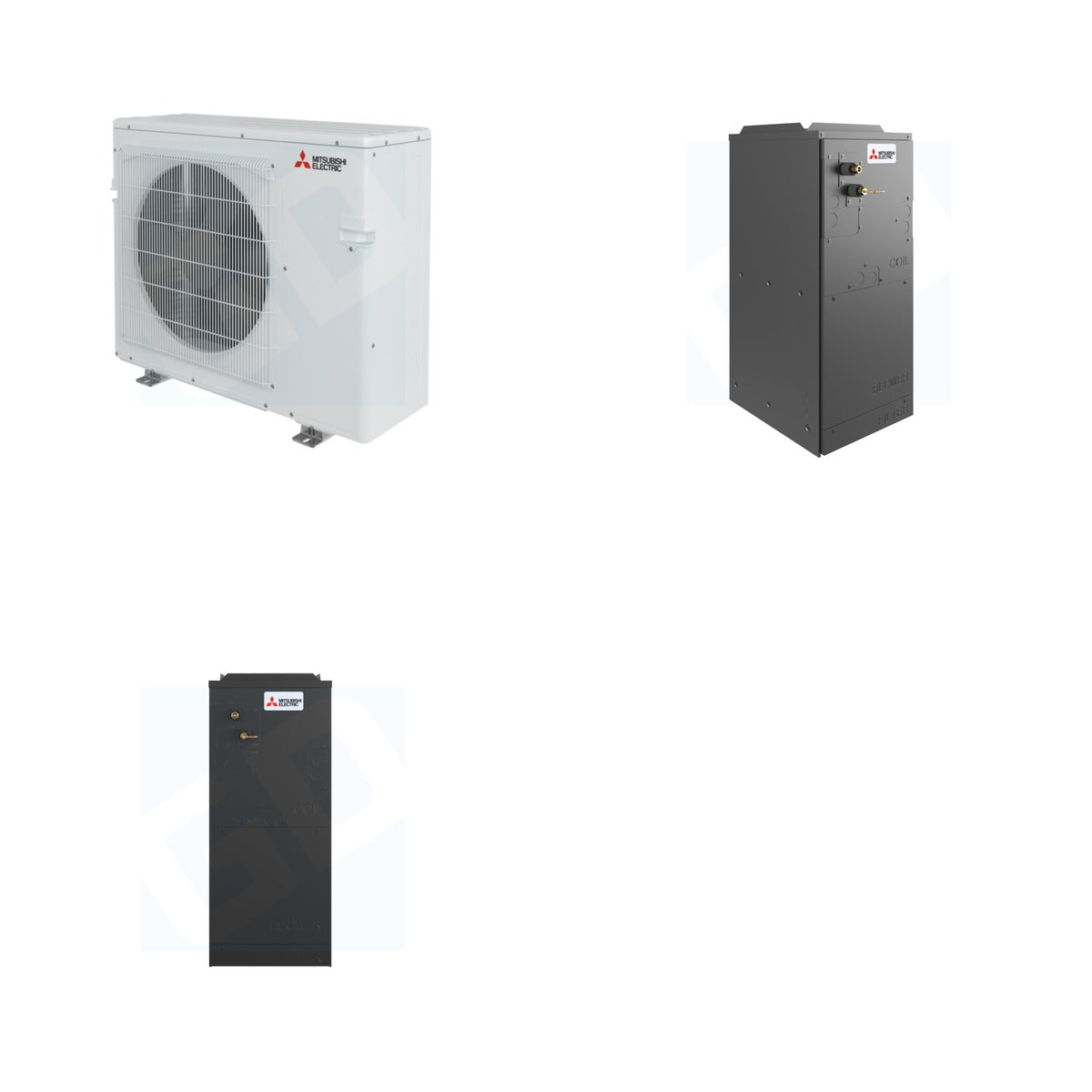

What's Included

• MITSUBISHI ELECTRIC MXZ-5D36NL - Mitsubishi Electric MXZ-5D36NL 36k BTU (3.0 Ton) M-Series Outdoor Condenser up to 5 Zones (Qty x1)

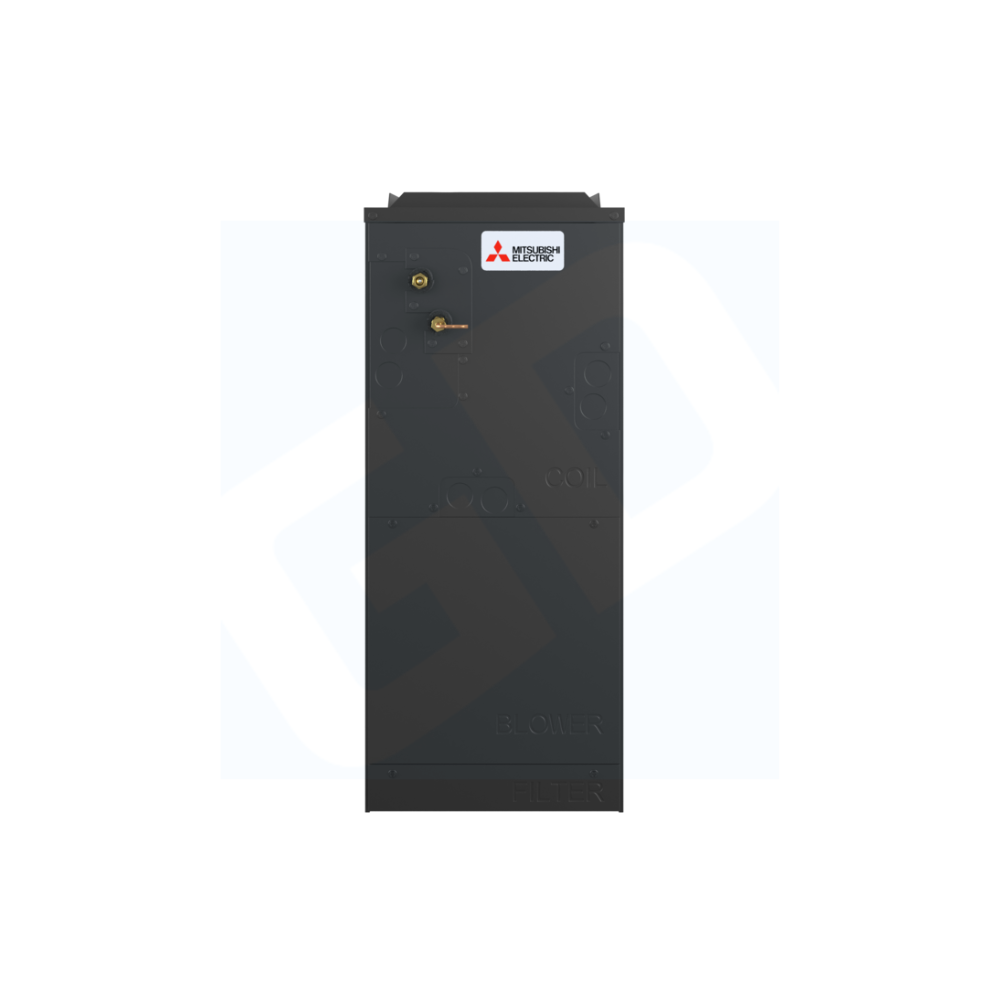

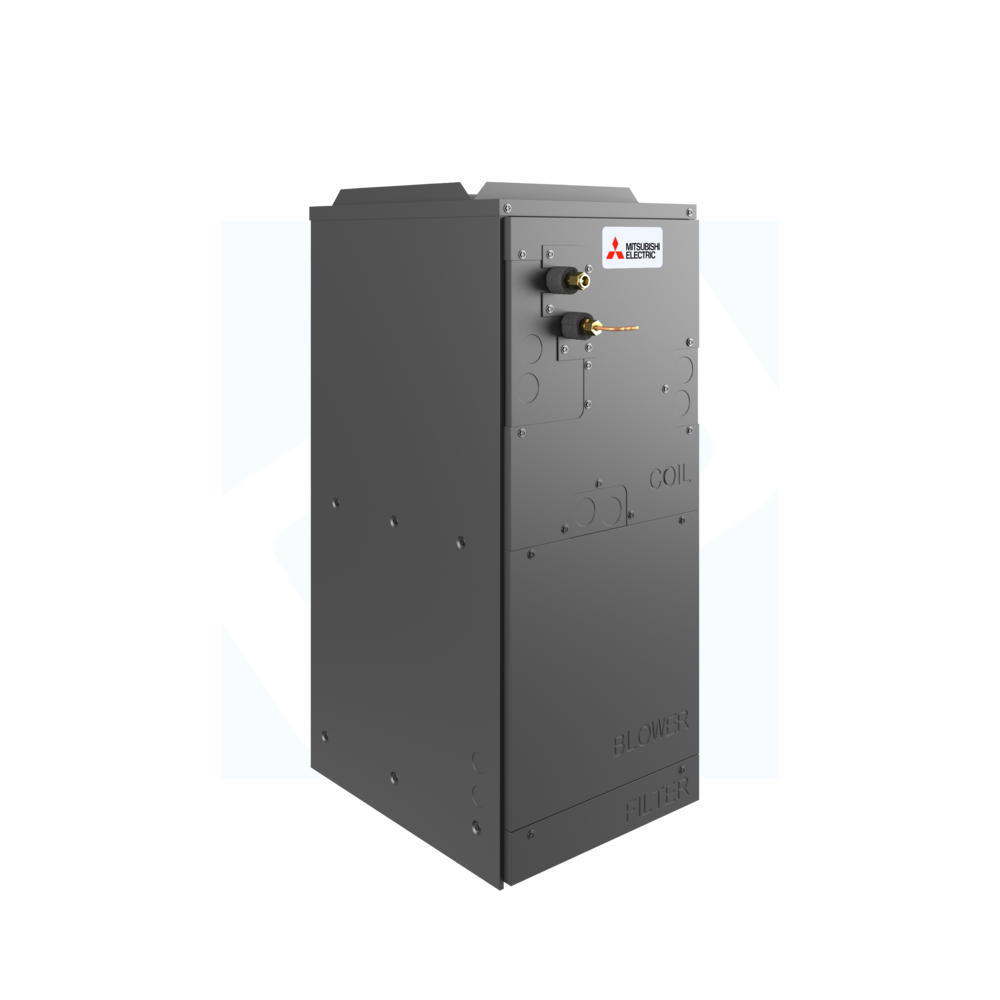

• MITSUBISHI ELECTRIC SVZ-AP12NL - Mitsubishi Electric SVZ-AP12NL AP-Series Ducted Air Handler Indoor Unit - Single-Zone - 12k BTU - R-454B (Qty x1)
• MITSUBISHI ELECTRIC SVZ-AP18NL - Mitsubishi Electric SVZ-AP18NL AP-Series Ducted Air Handler Indoor Unit - Single-Zone - 18k BTU - R-454B (Qty x1)

Key Details

• Weight of Bundle: 395 lb (Mitsubishi 194 lb + Mitsubishi 97 lb + Mitsubishi 104 lb)
• Cooling Capacity: 36,400 BTU (MXZ-5D36NL), 12,000 BTU (SVZ-AP12NL), 18,000 BTU (SVZ-AP18NL)
• Heating Capacity: 43,000 BTU (MXZ-5D36NL), 15,000 BTU (SVZ-AP12NL), 23,800 BTU (SVZ-AP18NL)
• Refrigerant Type: R-454B
• Voltage: 208/230V
• Dimensions: MXZ-5D36NL (31.375 x 37.406 x 13 inches), SVZ-AP12NL & SVZ-AP18NL (17 x 21-5/8 x 39-13/16 inches)
• Noise Level: 36-45 dB(A) for both cooling and heating (SVZ-AP12NL & SVZ-AP18NL)
• WiFi Enabled: Yes (SVZ-AP12NL & SVZ-AP18NL)

Use & Compatibility

This bundle is designed for efficient heating and cooling in multi-zone setups, making it suitable for both residential and light commercial environments. The outdoor condenser is compatible with the included ducted air handlers, allowing for flexible installation options and optimal climate control across different spaces.
