Mitsubishi Multi-Zone 36400 BTU R-454B 18 SEER2 2-Zone Multi-Position Air Handler Heat Pump System - 12K+12K

Description

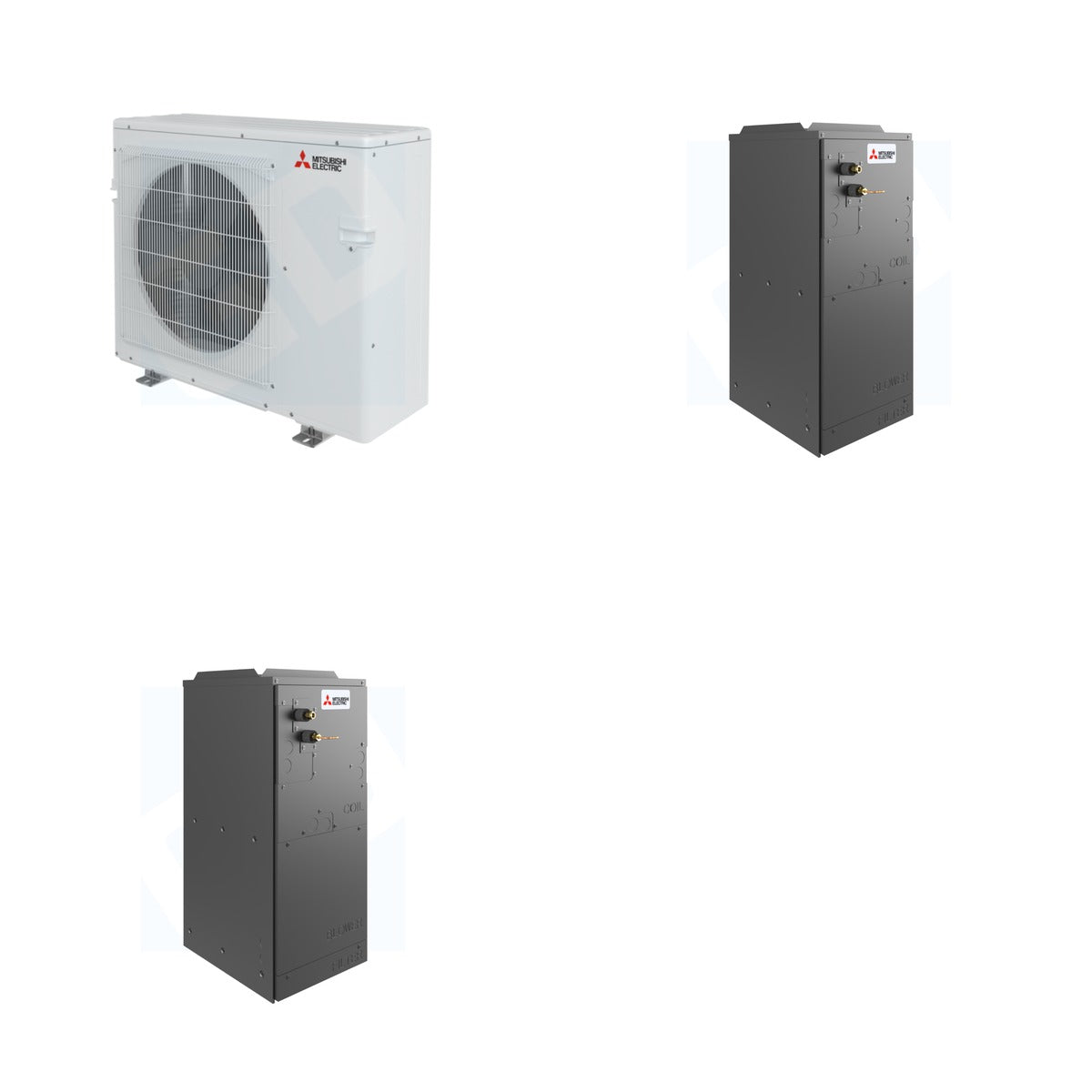

The Mitsubishi Electric HVAC bundle combines the MXZ-5D36NL outdoor condenser and two SVZ-AP12NL ducted air handlers, creating a powerful and efficient multi-zone climate control system. The outdoor unit, with a capacity of 36,000 BTU, can support up to five zones, making it ideal for both residential and commercial applications. The indoor air handlers, each providing 12,000 BTU, offer flexible installation options and are designed for optimal air circulation and temperature management. This bundle is perfect for those looking to enhance their indoor comfort while maintaining energy efficiency.

What's Included

• MITSUBISHI ELECTRIC MXZ-5D36NL - Mitsubishi Electric MXZ-5D36NL 36k BTU (3.0 Ton) M-Series Outdoor Condenser (Qty x1)

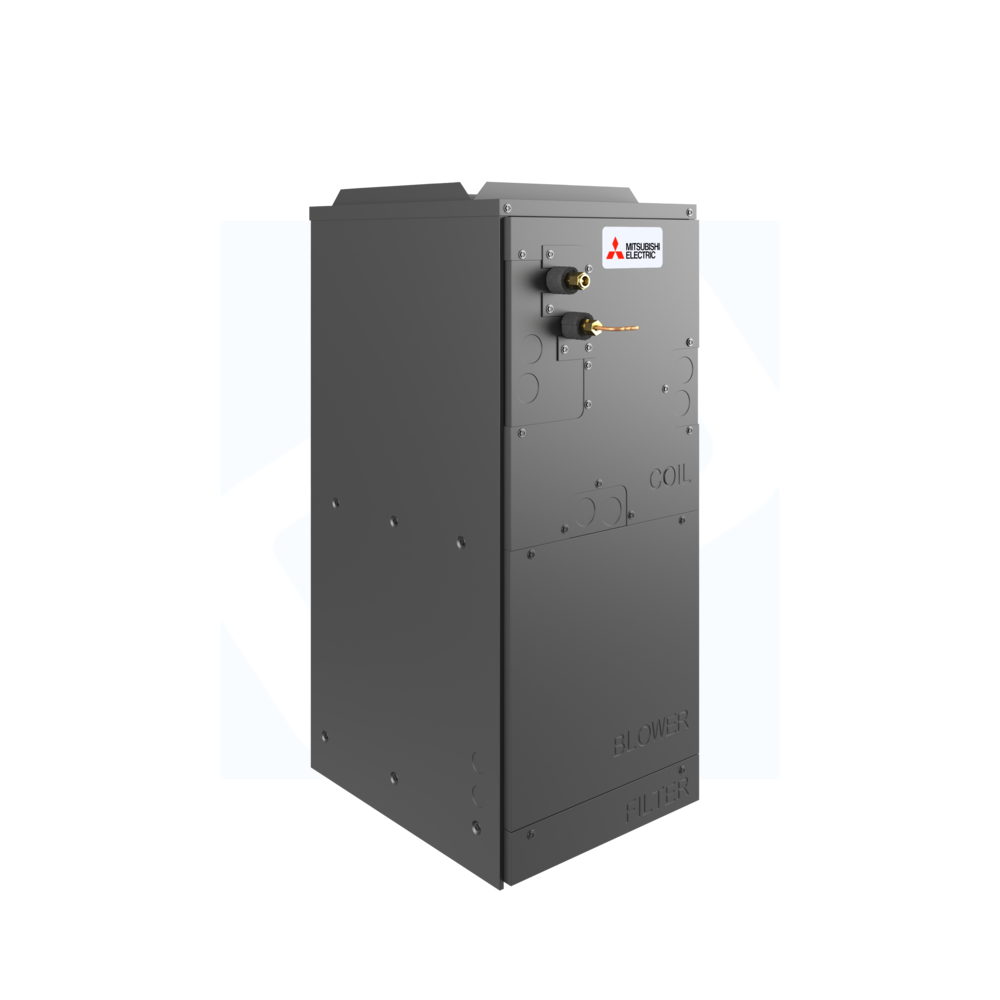

• MITSUBISHI ELECTRIC SVZ-AP12NL - Mitsubishi Electric SVZ-AP12NL AP-Series Ducted Air Handler Indoor Unit - Single-Zone - 12k BTU - R-454B (Qty x2)

Key Details

• Weight of Bundle: 388 lb (Mitsubishi 194 lb + Mitsubishi 194 lb)
• Cooling Capacity: 36,400 BTU/h (MXZ-5D36NL)
• Heating Capacity: 43,000 BTU/h (MXZ-5D36NL)
• System Capacity: 12,000 BTU (SVZ-AP12NL)
• Refrigerant Type: R-454B
• Voltage: 208/230V
• Outdoor Unit Dimensions: 31.375 x 37.406 x 13 inches
• Indoor Unit Dimensions: 17 x 21-5/8 x 39-13/16 inches
• Weight: 97 lbs (SVZ-AP12NL)
• Noise Level: 36-45 dB(A) (SVZ-AP12NL)

Use & Compatibility

This bundle is designed for efficient heating and cooling in both residential and commercial spaces. The MXZ-5D36NL outdoor condenser works seamlessly with the two SVZ-AP12NL indoor air handlers, providing flexible installation options and optimal climate control across multiple zones.
