Mitsubishi Multi-Zone 36400 BTU R-454B 16 SEER2 3-Zone Ducted Low-Static Mini Split Heat Pump System - 9K+9K+15K

Description

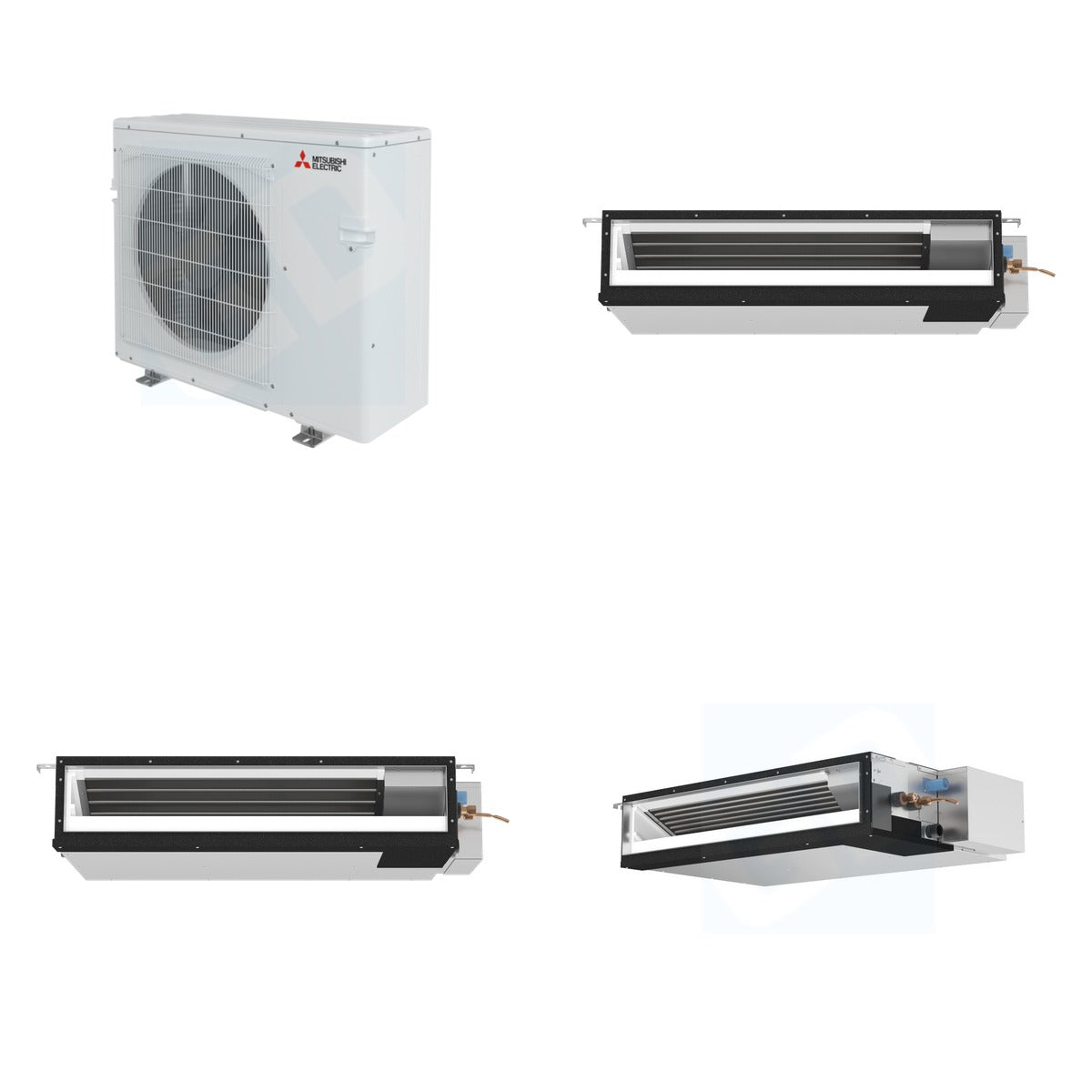

This comprehensive HVAC bundle is designed to provide efficient heating and cooling solutions for both residential and commercial applications. The Mitsubishi Electric MXZ-5D36NL outdoor condenser serves as the powerhouse, supporting up to five indoor zones, while the SEZ-AD09NL and SEZ-AD15NL concealed duct air handling units ensure discreet and effective climate control in various spaces. Together, these units utilize environmentally friendly R454B refrigerant and advanced inverter technology to deliver optimal comfort and energy efficiency.

What's Included

• MITSUBISHI ELECTRIC MXZ-5D36NL - Mitsubishi Electric MXZ-5D36NL 36k BTU (3.0 Ton) M-Series Outdoor Condenser up to 5 Zones (Qty x1)
• MITSUBISHI ELECTRIC SEZ-AD09NL - Mitsubishi Electric SEZ-AD09NL 9k BTU (0.75 Ton) 208/230V M-Series Concealed Duct AHU (R-454B) (Qty x2)
• MITSUBISHI ELECTRIC SEZ-AD15NL - Mitsubishi Electric SEZ-AD15NL 15k BTU (1.25 Ton) 208/230V M-Series Concealed Duct AHU (R-454B) (Qty x1)

Key Details

• Weight of Bundle: 323 lb (Mitsubishi 194 lb + Mitsubishi 80 lb + Mitsubishi 49 lb)
• Cooling Capacity: 36,400 BTU (MXZ-5D36NL)
• Heating Capacity: 43,000 BTU (MXZ-5D36NL)
• Indoor Unit Sizes: 9,000 BTU (SEZ-AD09NL), 15,000 BTU (SEZ-AD15NL)
• Refrigerant Type: R-454B
• Voltage: 208/230V
• Outdoor Unit Dimensions: 31.375" H x 37.406" W x 13" D (MXZ-5D36NL)
• Indoor Unit Dimensions: 7.875" H x 31.125" W x 27.5625" D (SEZ-AD09NL)
• Indoor Unit Weight: 42 lbs (SEZ-AD09NL)

Use & Compatibility

This bundle is ideal for those seeking to enhance their home's or office's climate control capabilities. The outdoor condenser is compatible with multiple indoor units, allowing for customized temperature management across different zones. The concealed duct units are perfect for installations in tight spaces, ensuring a seamless and unobtrusive air distribution system.
