Mitsubishi Multi-Zone 36400 BTU R-454B 16 SEER2 3-Zone Ducted Low-Static Mini Split Heat Pump System - 9K+12K+12K

Description

This comprehensive HVAC bundle includes essential components for creating a highly efficient multi-zone heating and cooling system. Featuring the Mitsubishi Electric MXZ-5D36NL outdoor condenser, this setup supports up to five indoor units, ensuring tailored climate control across various spaces. The included SEZ-AD09NL and SEZ-AD12NL concealed duct indoor units provide versatile installation options and quiet operation, making them ideal for both residential and commercial applications. With R454B refrigerant and advanced inverter technology, this bundle not only enhances comfort but also promotes energy efficiency and environmental sustainability.

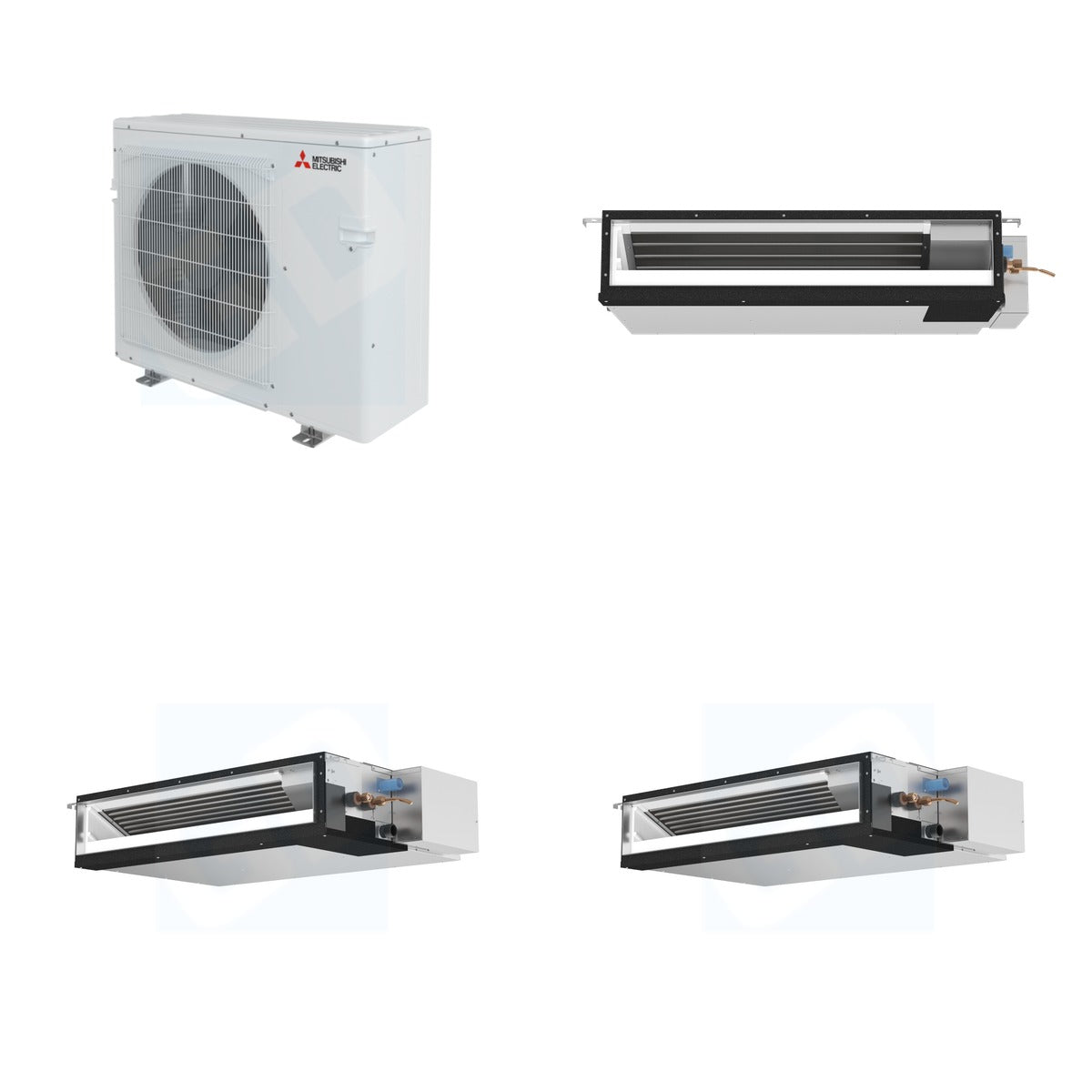

What's Included

• MITSUBISHI ELECTRIC MXZ-5D36NL - Mitsubishi Electric MXZ-5D36NL 36k BTU (3.0 Ton) M-Series Outdoor Condenser (Qty x1)
• MITSUBISHI ELECTRIC SEZ-AD09NL - Mitsubishi Electric SEZ-AD09NL 9k BTU (0.75 Ton) 208/230V M-Series Concealed Duct AHU (R-454B) (Qty x1)
• MITSUBISHI ELECTRIC SEZ-AD12NL - Mitsubishi Electric SEZ-AD12NL 12k BTU (1.00 Ton) 208/230V M-Series Concealed Duct AHU (R-454B) (Qty x2)

Key Details

• Weight of Bundle: 332 lb (Mitsubishi 194 lb + Mitsubishi 40 lb + Mitsubishi 98 lb)
• Cooling Capacity: 36,400 BTU (MXZ-5D36NL), 9,000 BTU (SEZ-AD09NL), 12,000 BTU (SEZ-AD12NL)
• Heating Capacity: 43,000 BTU (MXZ-5D36NL), 10,900 BTU (SEZ-AD09NL), 13,600 BTU (SEZ-AD12NL)
• Refrigerant Type: R-454B
• Voltage: 208/230V
• Sound Level: as low as 23 dB
• Dimensions: MXZ-5D36NL (31.375" H x 37.406" W x 13" D), SEZ-AD09NL (7.875" H x 31.125" W x 27.5625" D), SEZ-AD12NL (7.875" H x 39" W x 27.5625" D)
• Weight: MXZ-5D36NL (Shipping Weight: 150 lbs), SEZ-AD09NL (Shipping Weight: 62 lbs), SEZ-AD12NL (Shipping Weight: 73 lbs)

Use & Compatibility

This bundle is designed for residential and light commercial applications, providing efficient heating and cooling for multiple zones. The outdoor condenser is compatible with the included concealed duct indoor units, making it suitable for various configurations and installation locations.
