Mitsubishi Multi-Zone 36400 BTU R-454B 16 SEER2 3-Zone Ducted Low-Static Mini Split Heat Pump System - 12K+12K+15K

Description

This comprehensive HVAC bundle features high-efficiency components from Mitsubishi Electric, designed to provide optimal heating and cooling for both residential and commercial spaces. The Mitsubishi Electric MXZ-5D36NL outdoor condenser serves as the backbone of this system, capable of supporting up to five zones with its powerful 36,000 BTU capacity. Paired with two SEZ-AD12NL concealed duct air handling units, each delivering 12,000 BTUs, and one SEZ-AD15NL unit with a 15,000 BTU capacity, this bundle ensures tailored climate control across multiple areas. Utilizing R454B refrigerant, these units not only enhance energy efficiency but also contribute to environmentally friendly performance.

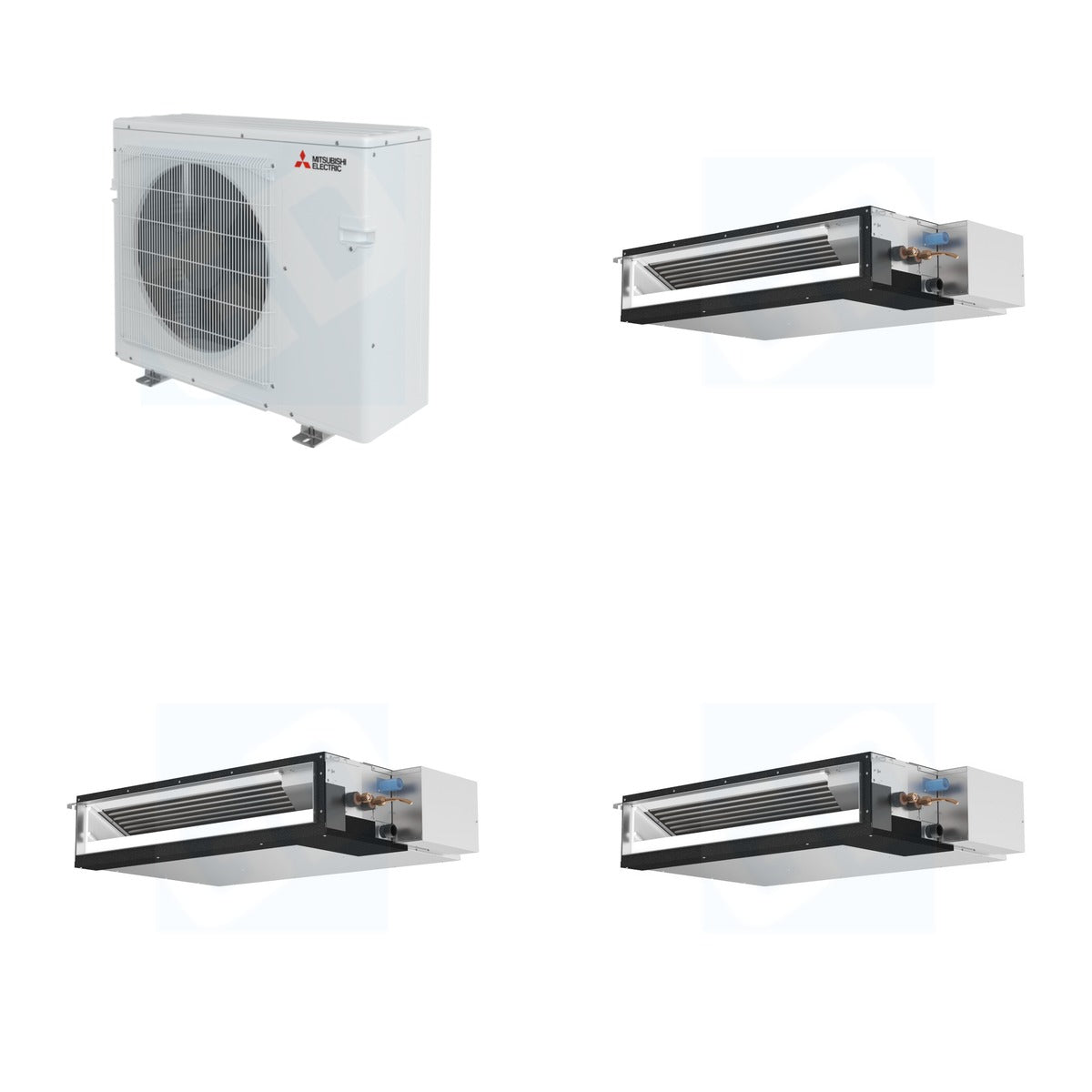

What's Included

• MITSUBISHI ELECTRIC MXZ-5D36NL - Mitsubishi Electric MXZ-5D36NL 36k BTU (3.0 Ton) M-Series Outdoor Condenser (Qty x1)
• MITSUBISHI ELECTRIC SEZ-AD12NL - Mitsubishi Electric SEZ-AD12NL 12k BTU (1.00 Ton) 208/230V M-Series Concealed Duct AHU (R-454B) (Qty x2)
• MITSUBISHI ELECTRIC SEZ-AD15NL - Mitsubishi Electric SEZ-AD15NL 15k BTU (1.25 Ton) 208/230V M-Series Concealed Duct AHU (R-454B) (Qty x1)

Key Details

• Weight of Bundle: 341 lb (Mitsubishi 194 lb + Mitsubishi 98 lb + Mitsubishi 49 lb)
• Cooling Capacity: 36,400 BTU (MXZ-5D36NL), 12,000 BTU (SEZ-AD12NL), 15,000 BTU (SEZ-AD15NL)
• Heating Capacity: 43,000 BTU (MXZ-5D36NL), 13,600 BTU (SEZ-AD12NL)
• Refrigerant Type: R-454B
• Voltage: 208/230V
• Number of Zones: 5 (MXZ-5D36NL), Multi-zone compatible (SEZ-AD12NL, SEZ-AD15NL)
• Sound Level: 23-33 dB (SEZ-AD12NL, SEZ-AD15NL)
• Outdoor Unit Dimensions: 31.375 in (H) x 37.406 in (W) x 13 in (D)
• Indoor Unit Dimensions: 7.875 in (H) x 39 in (W) x 27.5625 in (D) (SEZ-AD12NL), 15 in (H) x 39 in (W) x 27.5625 in (D) (SEZ-AD15NL)

Use & Compatibility

This bundle is ideal for creating a multi-zone climate control system in both residential and commercial settings. The outdoor condenser is compatible with multiple indoor units, allowing for flexible installation and efficient temperature regulation across various spaces. The concealed duct units are designed for discreet integration into existing ductwork, making them perfect for applications where aesthetics are a priority.
