Mitsubishi Multi-Zone 36400 BTU R-454B 16 SEER2 2-Zone Ducted Medium-Static Mini Split Heat Pump System - 9K+24K

Description

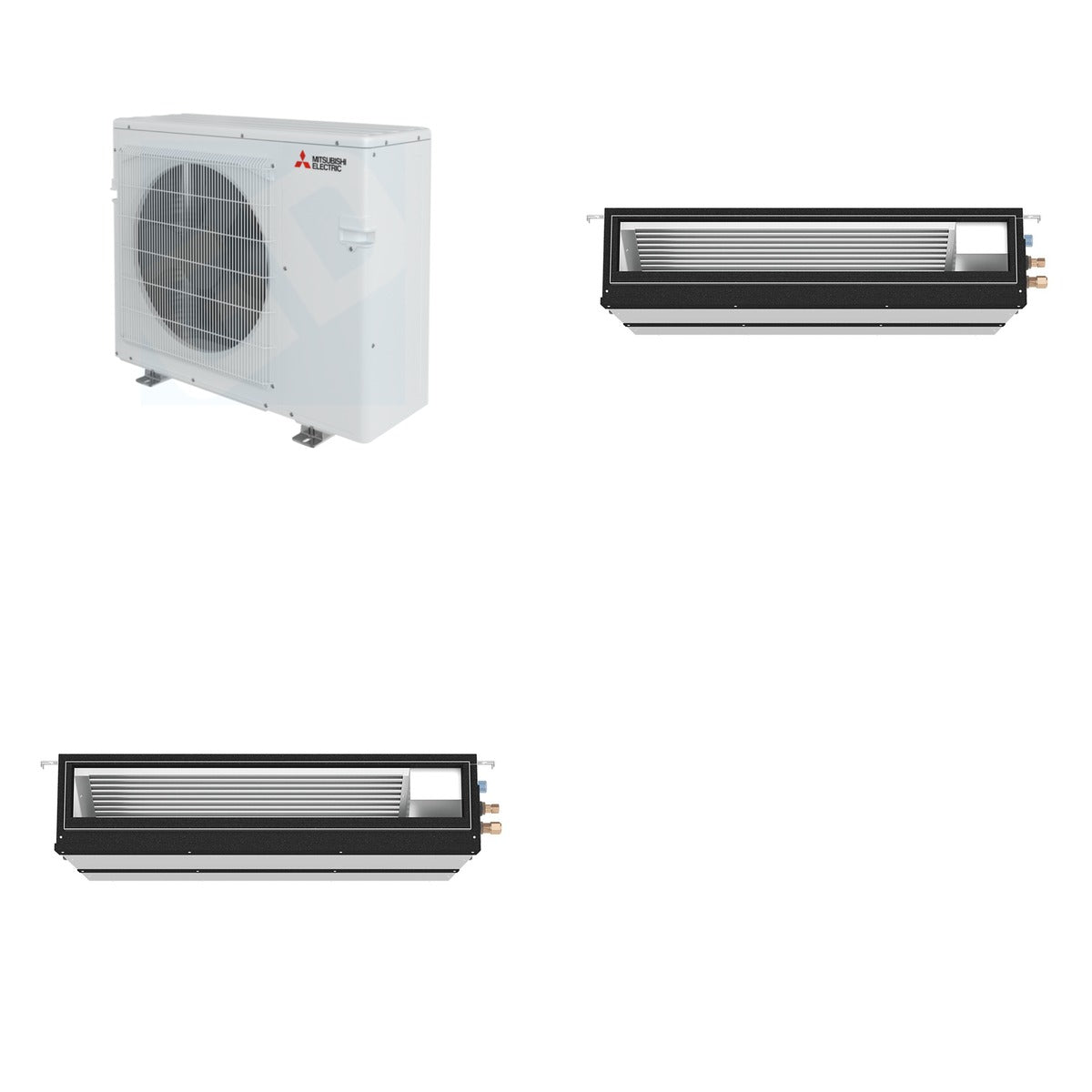

This comprehensive HVAC bundle features the Mitsubishi Electric MXZ-5D36NL outdoor condenser and two concealed duct indoor units, the PEAD-AA09NL and PEAD-AA24NL. Together, they provide an efficient multi-zone heating and cooling solution for both residential and light commercial applications. The outdoor unit supports up to five zones, allowing tailored climate control, while the indoor units are designed for discreet installation, ensuring a seamless integration into any space. With advanced inverter technology and environmentally friendly refrigerants, this bundle guarantees optimal comfort and energy efficiency.

What's Included

• MITSUBISHI ELECTRIC MXZ-5D36NL - Mitsubishi Electric MXZ-5D36NL 36k BTU M-Series Outdoor Condenser (Qty x1)
• MITSUBISHI ELECTRIC PEAD-AA09NL - Mitsubishi Electric PEAD-AA09NL R454B: 9k BTU P-Series Concealed Horizontal-Ducted Indoor Unit (Qty x1)
• MITSUBISHI ELECTRIC PEAD-AA24NL - Mitsubishi Electric PEAD-AA24NL R454B: 24k BTU P-Series Concealed Horizontal-Ducted Indoor Unit (Qty x1)

Key Details

• Weight of Bundle: 310 lb (Mitsubishi 194 lb + Mitsubishi 49 lb + Mitsubishi 67 lb)
• Cooling Capacity: 36,400 BTU (MXZ-5D36NL), 9,000 BTU (PEAD-AA09NL), 24,000 BTU (PEAD-AA24NL)
• Heating Capacity: 43,000 BTU (MXZ-5D36NL), 12,000 BTU (PEAD-AA09NL)
• Refrigerant Type: R-454B
• Voltage: 208/230V
• Outdoor Unit Dimensions: 31.375 in H x 37.406 in W x 13 in D
• Indoor Unit Dimensions: 9.875 in H x 35.437 in W x 28.875 in D (PEAD-AA09NL), 9.875 in H x 43.312 in W x 28.875 in D (PEAD-AA24NL)
• Weight: 58 lbs (PEAD-AA09NL), dimensions for PEAD-AA24NL available upon request

Use & Compatibility

This bundle is designed for both residential and light commercial use, providing efficient heating and cooling for multiple zones. The outdoor unit is compatible with up to five indoor units, making it ideal for various applications, including homes, offices, and restaurants. The concealed duct design of the indoor units allows for unobtrusive installation, maintaining the aesthetic appeal of your space.
