Mitsubishi Multi-Zone 36400 BTU R-454B 16 SEER2 2-Zone Ducted Medium-Static Mini Split Heat Pump System - 9K+15K

Description

This comprehensive HVAC bundle is designed to provide efficient heating and cooling solutions for both residential and light commercial applications. Featuring a powerful outdoor condenser and two concealed duct indoor units, this set ensures optimal climate control across multiple zones. The Mitsubishi Electric MXZ-5D36NL outdoor unit supports up to five indoor units, while the PEAD-AA09NL and PEAD-AA15NL indoor units offer versatile installation options and compatibility with eco-friendly R-454B refrigerant. Together, these components deliver a seamless and effective HVAC experience, enhancing comfort and energy efficiency in your space.

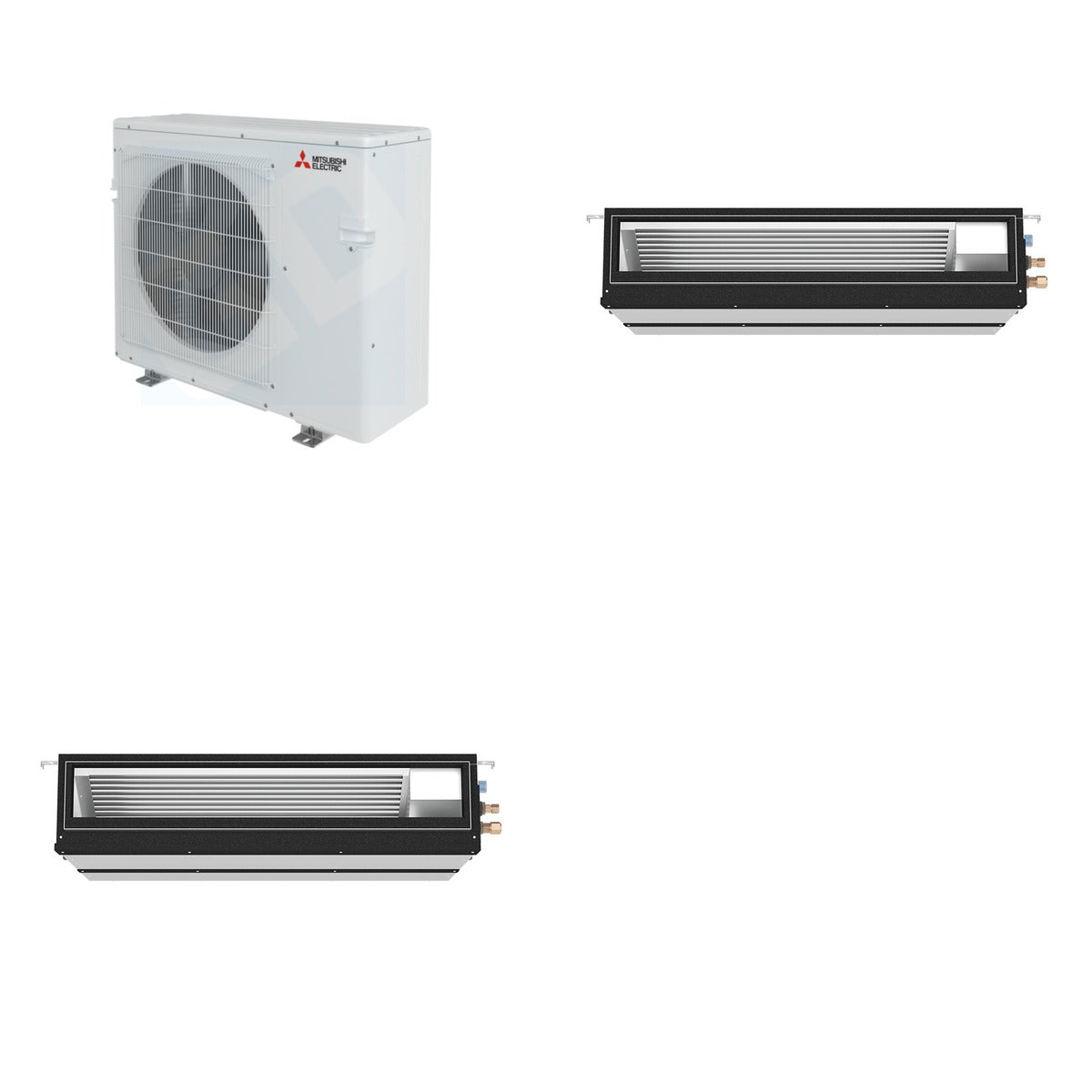

What's Included

• MITSUBISHI ELECTRIC MXZ-5D36NL - Mitsubishi Electric MXZ-5D36NL 36k BTU (3.0 Ton) M-Series Outdoor Condenser up to 5 Zones (Qty x1)
• MITSUBISHI ELECTRIC PEAD-AA09NL - Mitsubishi Electric PEAD-AA09NL R454B: 9k BTU P-Series Concealed Horizontal-Ducted Indoor Unit (Qty x1)
• MITSUBISHI ELECTRIC PEAD-AA15NL - Mitsubishi Electric PEAD-AA15NL R454B: 15k BTU P-Series Concealed Horizontal-Ducted Indoor Unit (Qty x1)

Key Details

• Weight of Bundle: 301 lb (Mitsubishi 194 lb + Mitsubishi 49 lb + Mitsubishi 58 lb)
• Cooling Capacity: 36,400 BTU (MXZ-5D36NL), 9,000 BTU (PEAD-AA09NL), 15,000 BTU (PEAD-AA15NL)
• Heating Capacity: 43,000 BTU (MXZ-5D36NL), 12,000 BTU (PEAD-AA09NL), 18,000 BTU (PEAD-AA15NL)
• Refrigerant Type: R-454B
• Voltage: 208/230V
• Dimensions: MXZ-5D36NL (31.375" H x 37.406" W x 13" D), PEAD-AA09NL (9.875" H x 35.437" W x 28.875" D), PEAD-AA15NL (9.875" H x 35.437" W x 28.875" D)
• Weight: MXZ-5D36NL (not specified), PEAD-AA09NL (58 lbs), PEAD-AA15NL (58 lbs)

Use & Compatibility

This bundle is ideal for both residential and light commercial settings, providing efficient heating and cooling through a multi-zone system. The outdoor unit is compatible with up to five indoor units, allowing for tailored climate control in various spaces. The concealed duct design of the indoor units ensures quiet operation and aesthetic appeal, making them suitable for installation in tight spaces.
