Mitsubishi Multi-Zone 36400 BTU R-454B 16 SEER2 2-Zone Ducted Medium-Static Mini Split Heat Pump System - 12K+24K

Description

The Mitsubishi Electric HVAC bundle is designed to provide efficient climate control for both residential and light commercial applications. Featuring a powerful 36k BTU outdoor condenser and two versatile indoor units, this bundle allows for tailored temperature regulation across multiple zones. The combination of the MXZ-5D36NL outdoor unit and the PEAD-AA12NL and PEAD-AA24NL indoor units ensures optimal performance and energy efficiency, utilizing environmentally friendly R-454B refrigerant. This system is perfect for those looking to enhance their indoor comfort while maintaining a sleek and unobtrusive installation.

What's Included

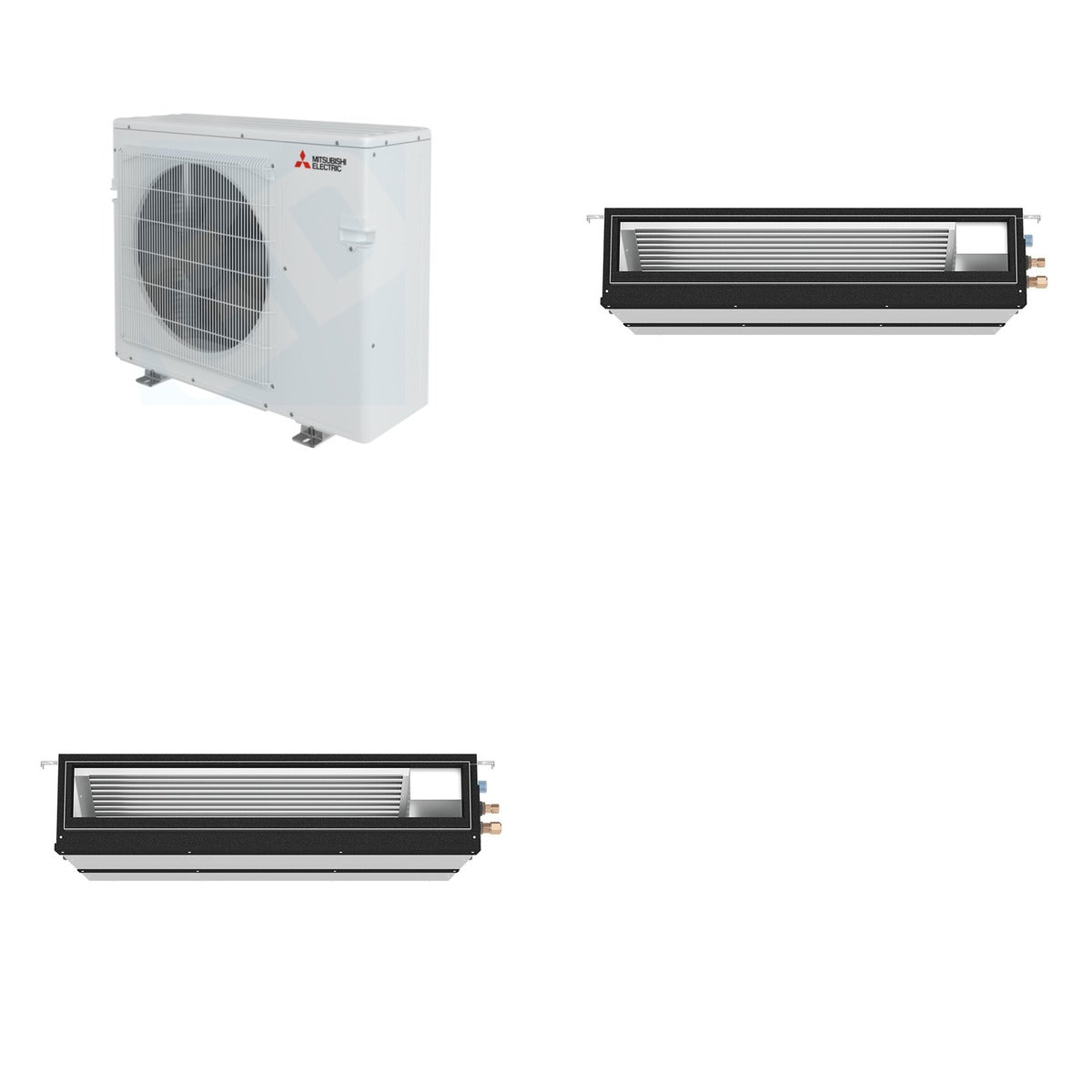

• MITSUBISHI ELECTRIC MXZ-5D36NL - Mitsubishi Electric MXZ-5D36NL 36k BTU (3.0 Ton) M-Series Outdoor Condenser up to 5 Zones (Qty x1)
• MITSUBISHI ELECTRIC PEAD-AA12NL - Mitsubishi Electric PEAD-AA12NL R454B: 12k BTU P-Series Concealed Horizontal-Ducted Indoor Unit (Qty x1)
• MITSUBISHI ELECTRIC PEAD-AA24NL - Mitsubishi Electric PEAD-AA24NL R454B: 24k BTU P-Series Concealed Horizontal-Ducted Indoor Unit (Qty x1)

Key Details

• Weight of Bundle: 319 lb (Mitsubishi 194 lb + Mitsubishi 58 lb + Mitsubishi 67 lb)
• Cooling Capacity: 36,400 BTU/h (MXZ-5D36NL)
• Heating Capacity: 43,000 BTU/h (MXZ-5D36NL)
• Indoor Unit 1 Cooling Capacity: 12,400 BTU/h (PEAD-AA12NL)
• Indoor Unit 2 Cooling Capacity: 24,000 BTU/h (PEAD-AA24NL)
• Refrigerant Type: R-454B
• Voltage: 208/230V
• SEER: 20 (PEAD-AA12NL)
• Sound Level: 34 dBA (PEAD-AA12NL)
• Dimensions (PEAD-AA24NL): 43.31 in W x 28.88 in D x 9.88 in H

Use & Compatibility

This HVAC bundle is ideal for multi-zone heating and cooling applications, suitable for both residential and light commercial environments. The outdoor unit can support up to five indoor units, allowing for flexible installation in various layouts. The concealed ducted indoor units are designed for unobtrusive installation, making them compatible with a range of ceiling and attic spaces.
