Mitsubishi Multi-Zone 36400 BTU R-454B 16 SEER2 2-Zone Ducted Low-Static Mini Split Heat Pump System - 9K+12K

Description

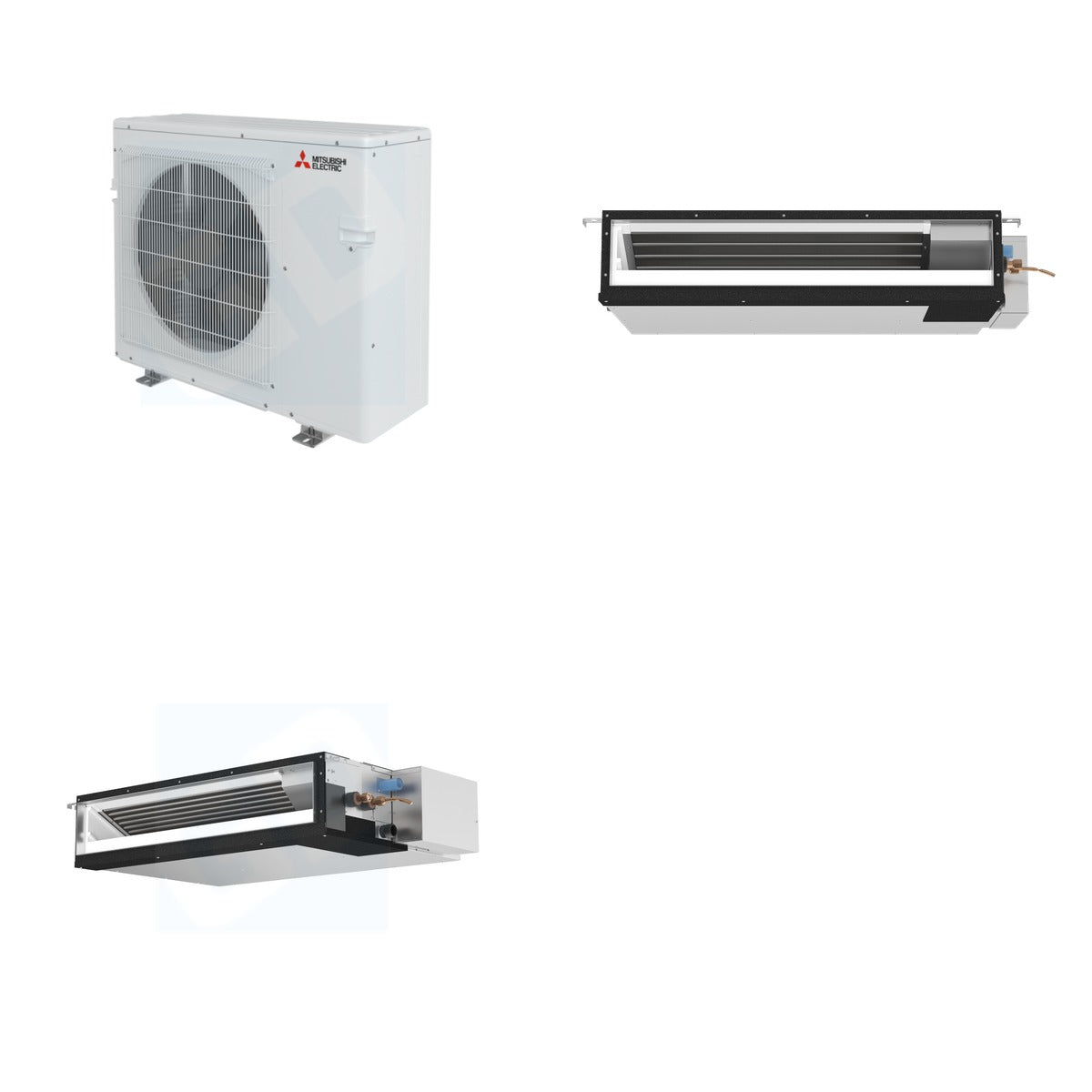

This comprehensive HVAC bundle features the Mitsubishi Electric MXZ-5D36NL outdoor condenser and two concealed duct indoor units, the SEZ-AD09NL and SEZ-AD12NL. Perfectly designed for multi-zone heating and cooling, this combination allows for tailored climate control across various spaces. The outdoor unit supports up to five zones, while the indoor units provide efficient operation and discreet installation options. With advanced features such as variable speed compressors and built-in condensate lift mechanisms, this bundle ensures optimal comfort and energy efficiency for both residential and commercial applications.

What's Included

• MITSUBISHI ELECTRIC MXZ-5D36NL - Mitsubishi Electric MXZ-5D36NL 36k BTU (3.0 Ton) M-Series Outdoor Condenser (Qty x1)
• MITSUBISHI ELECTRIC SEZ-AD09NL - Mitsubishi Electric SEZ-AD09NL 9k BTU (0.75 Ton) 208/230V M-Series Concealed Duct AHU (R-454B) (Qty x1)
• MITSUBISHI ELECTRIC SEZ-AD12NL - Mitsubishi Electric SEZ-AD12NL 12k BTU (1.00 Ton) 208/230V M-Series Concealed Duct AHU (R-454B) (Qty x1)

Key Details

• Weight of Bundle: 283 lb (Mitsubishi 194 lb + Mitsubishi 40 lb + Mitsubishi 49 lb)
• Cooling Capacity: 36,400 BTU (MXZ-5D36NL), 9,000 BTU (SEZ-AD09NL), 12,000 BTU (SEZ-AD12NL)
• Heating Capacity: 43,000 BTU (MXZ-5D36NL), 10,900 BTU (SEZ-AD09NL), 13,600 BTU (SEZ-AD12NL)
• Refrigerant Type: R-454B
• Voltage: 208/230V
• Number of Zones: Up to 5 (MXZ-5D36NL)
• Dimensions (Outdoor Unit): 31.375 in H x 37.406 in W x 13 in D
• Dimensions (Indoor Units): SEZ-AD09NL - 7 7/8 in H x 31 1/8 in W x 27 9/16 in D; SEZ-AD12NL - 7 7/8 in H x 39 in W x 27 9/16 in D
• Noise Level: Minimum 23 dB (SEZ-AD12NL)

Use & Compatibility

This HVAC bundle is ideal for residential and commercial applications requiring efficient heating and cooling across multiple zones. The outdoor condenser is compatible with up to five indoor units, making it suitable for various configurations, while the concealed duct units are perfect for discreet installation in attics, ceilings, or walls.
