Mitsubishi Multi-Zone 36400 BTU R-454B 16 SEER2 2-Zone Ducted Low-Static Mini Split Heat Pump System - 12K+15K

Description

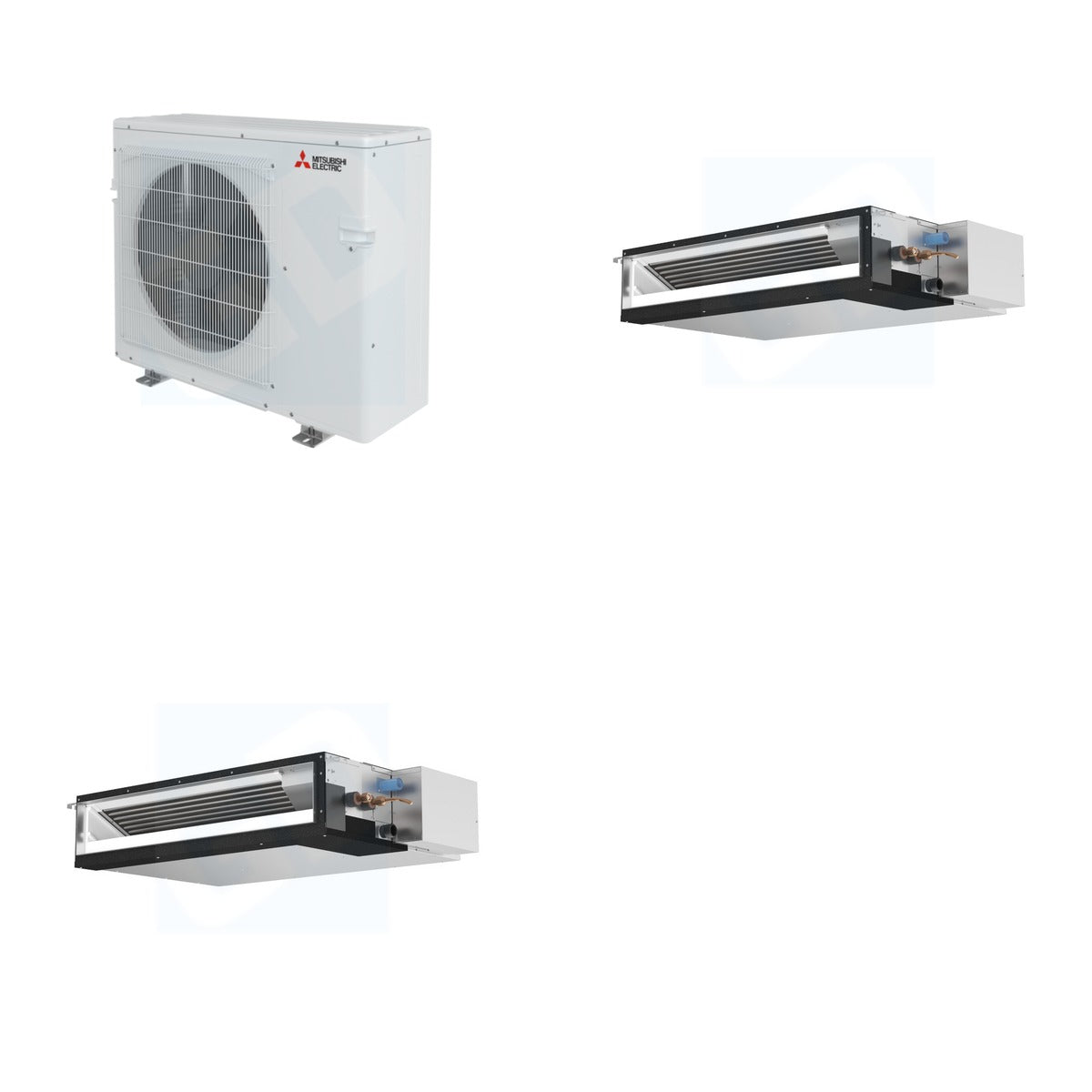

This comprehensive HVAC bundle features the Mitsubishi Electric MXZ-5D36NL outdoor condenser and two concealed duct air handling units (AHUs) - the SEZ-AD12NL and SEZ-AD15NL. Together, these components provide a powerful multi-zone heating and cooling solution, ideal for both residential and commercial applications. The outdoor unit supports up to five zones, allowing for tailored climate control, while the concealed duct AHUs ensure quiet operation and efficient air distribution. With environmentally friendly refrigerant and advanced technology, this bundle is designed for optimal performance and comfort in various environments.

What's Included

• MITSUBISHI ELECTRIC MXZ-5D36NL - Mitsubishi Electric MXZ-5D36NL 36k BTU (3.0 Ton) M-Series Outdoor Condenser (Qty x1)
• MITSUBISHI ELECTRIC SEZ-AD12NL - Mitsubishi Electric SEZ-AD12NL 12k BTU (1.00 Ton) 208/230V M-Series Concealed Duct AHU (R-454B) (Qty x1)
• MITSUBISHI ELECTRIC SEZ-AD15NL - Mitsubishi Electric SEZ-AD15NL 15k BTU (1.25 Ton) 208/230V M-Series Concealed Duct AHU (R-454B) (Qty x1)

Key Details

• Weight of Bundle: 292 lb (Mitsubishi 194 lb + Mitsubishi 49 lb + Mitsubishi 49 lb)
• Cooling Capacity: 36,400 BTU (MXZ-5D36NL), 12,000 BTU (SEZ-AD12NL), 15,000 BTU (SEZ-AD15NL)
• Heating Capacity: 43,000 BTU (MXZ-5D36NL), 13,600 BTU (SEZ-AD12NL)
• Refrigerant Type: R-454B
• Voltage: 208/230V
• Multi-Zone Capability: Yes (up to 5 zones)
• Noise Level: 23-33 dB (SEZ-AD12NL and SEZ-AD15NL)
• Condenser Dimensions: 31.375 in H x 37.406 in W x 13 in D
• Indoor Unit Dimensions: SEZ-AD12NL - 7.875 in H x 39 in W x 27.5625 in D; SEZ-AD15NL - Size varies

Use & Compatibility

This bundle is designed for efficient heating and cooling in residential and commercial spaces. The MXZ-5D36NL outdoor condenser connects seamlessly with the SEZ-AD12NL and SEZ-AD15NL indoor units, making it suitable for both single-zone and multi-zone systems. Ideal for discreet installations, these units provide optimal comfort and climate control without compromising aesthetics.
