Mitsubishi Multi-Zone 36000 BTU R-454B 20 SEER2 4-Zone Wall-Mounted Mini Split Heat Pump System - 9K+9K+9K+15K

Description

This comprehensive Mitsubishi Electric bundle is designed for optimal heating and cooling in residential and commercial spaces. The MXZ-SM36NL Multi-Zone Heat Pump Condenser serves as the powerful outdoor unit, capable of supporting multiple indoor units for customized climate control across various zones. Paired with the MSZ-GX09NL and MSZ-GX15NL wall-mounted air handlers, this bundle offers efficient heating and cooling solutions with advanced features like built-in Wi-Fi and enhanced filtration systems. The PAC-LMA50BC branch box facilitates seamless refrigerant flow management, ensuring that your system operates efficiently and effectively.

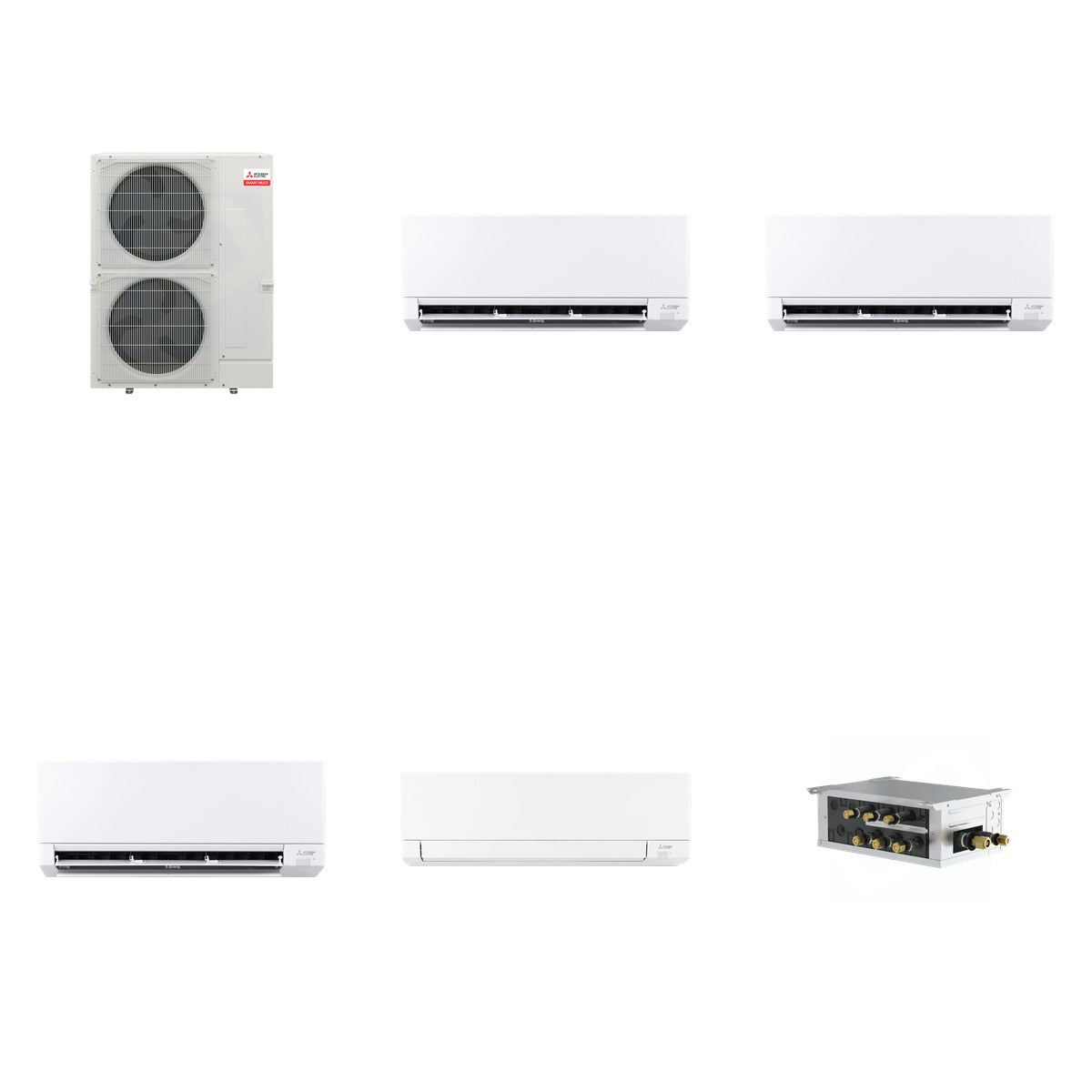

What's Included

• MITSUBISHI ELECTRIC MXZ-SM36NL - Mitsubishi Electric MXZ-SM36NL Multi-Zone Heat Pump Condenser (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX09NL - Mitsubishi Electric MSZ-GX09NL R454B 9k BTU Heat Pump Wall Mount Air Handler (Qty x3)
• MITSUBISHI ELECTRIC MSZ-GX15NL - Mitsubishi Electric MSZ-GX15NL R454B 15k BTU Heat Pump Wall Mount Air Handler (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)

Key Details

• Weight of Bundle: 256 lb (Mitsubishi 161 lb + Mitsubishi 66 lb + Mitsubishi 22 lb + Mitsubishi 7 lb)
• Cooling Capacity: 36,000 BTU (MXZ-SM36NL), 9,000 BTU (MSZ-GX09NL), 15,000 BTU (MSZ-GX15NL)
• Heating Capacity: 41,000 BTU (MXZ-SM36NL), 10,900 BTU (MSZ-GX09NL), 18,000 BTU (MSZ-GX15NL)
• Refrigerant Type: R454B
• SEER2: Up to 28.4 (MSZ-GX09NL), 23 (MXZ-SM36NL)
• Voltage: 208/230 Volts
• Dimensions (MXZ-SM36NL): 41-11/32 W x 13 D x 52-11/16 H
• Dimensions (MSZ-GX15NL): 31.40 W x 11.77 H x 9.65 D
• Branch Box Ports: 5

Use & Compatibility

This bundle is ideal for multi-zone heating and cooling applications, providing efficient climate control for both residential and commercial environments. The MXZ-SM36NL condenser is compatible with M-, P-Series, and CITY MULTI indoor units, while the MSZ-GX09NL and MSZ-GX15NL air handlers can be used in single or multi-zone setups. The PAC-LMA50BC branch box enhances system flexibility by allowing multiple indoor units to connect seamlessly.
