Mitsubishi Multi-Zone 36000 BTU R-454B 20 SEER2 4-Zone Wall-Mounted Mini Split Heat Pump System - 6K+9K+15K+15K

Description

This comprehensive bundle features essential components for creating an efficient multi-zone heating and cooling system. The Mitsubishi Electric MXZ-SM36NL Multi-Zone Heat Pump Condenser serves as the powerhouse, capable of connecting to multiple indoor units for tailored climate control. Accompanying this condenser are three wall-mounted air handlers (MSZ-GX06NL, MSZ-GX09NL, and MSZ-GX15NL), each designed to provide optimal comfort in various room sizes while ensuring quiet operation and advanced filtration. The PAC-LMA50BC 5-Port Branch Box facilitates seamless refrigerant flow management, making it an indispensable part of this setup. Together, these products deliver a versatile and energy-efficient solution for both residential and commercial applications.

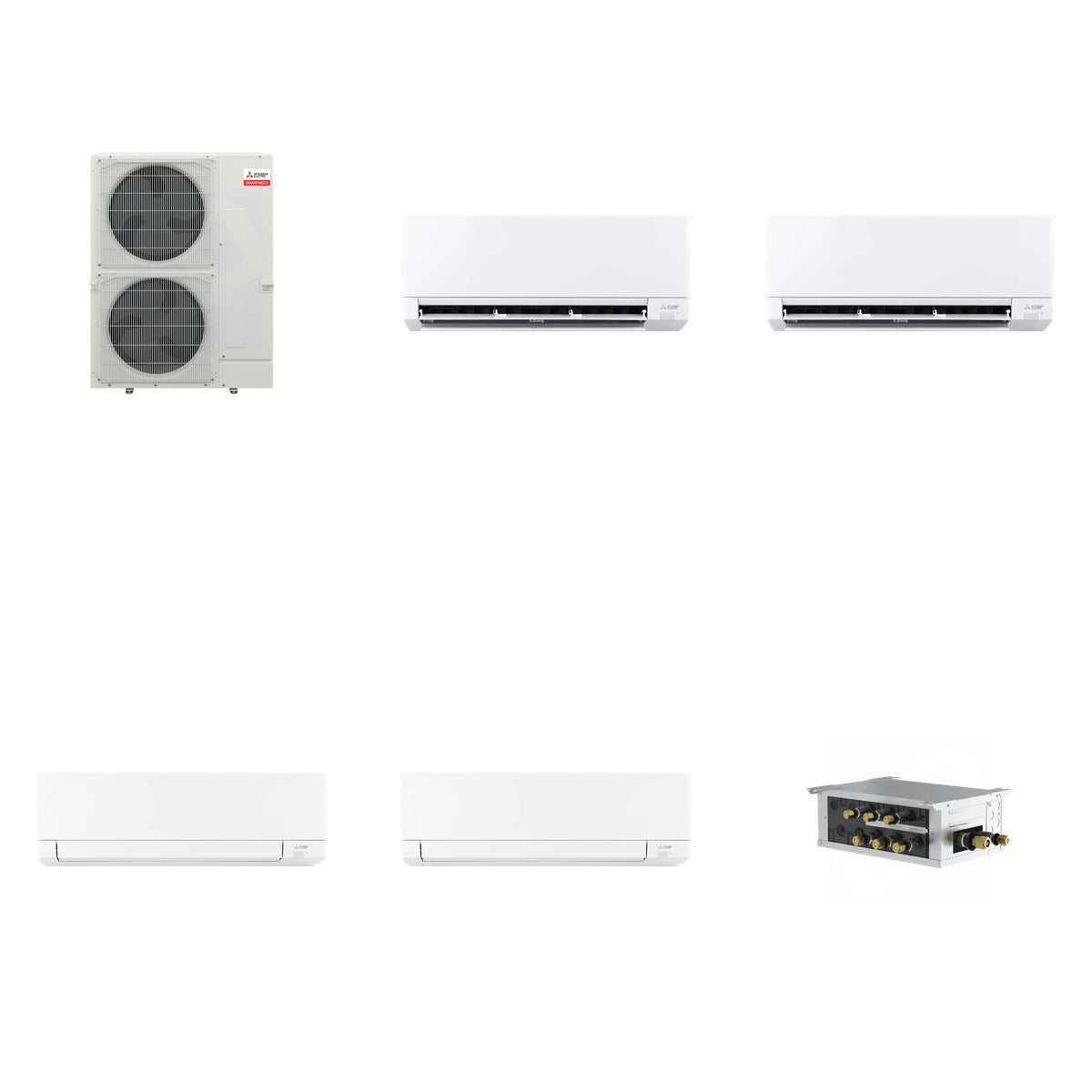

What's Included

• MITSUBISHI ELECTRIC MXZ-SM36NL - Multi-Zone Heat Pump Condenser (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX06NL - R454B 6k BTU Heat Pump Wall Mount Air Handler (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX09NL - R454B 9k BTU Heat Pump Wall Mount Air Handler (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX15NL - R454B 15k BTU Heat Pump Wall Mount Air Handler (Qty x2)
• MITSUBISHI ELECTRIC PAC-LMA50BC - 5-Port Branch Box (Qty x1)

Key Details

• Weight of Bundle: 256 lb (Mitsubishi 161 lb + Mitsubishi 22 lb + Mitsubishi 22 lb + Mitsubishi 44 lb + Mitsubishi 7 lb)
• Cooling Capacity: 36,000 BTU (Condenser), 6,000 BTU (GX06), 9,000 BTU (GX09), 15,000 BTU (GX15)
• Heating Capacity: 41,000 BTU (Condenser), 7,200 BTU (GX06), 10,900 BTU (GX09), 18,000 BTU (GX15)
• SEER2: Up to 28.4
• Refrigerant Type: R454B
• Voltage: 208/230 Volts
• Dimensions (Condenser): 41-11/32 W x 13 D x 52-11/16 H
• Dimensions (GX06): 31-19/48 W x 11-37/48 H x 9-31/48 D
• Dimensions (GX09): 31-19/48 W x 11-37/48 H x 9-31/48 D
• Dimensions (GX15): 31.40 W x 11.77 H x 9.65 D
• Branch Box Ports: 5

Use & Compatibility

This bundle is designed for use in residential and commercial applications, providing efficient heating and cooling across multiple zones. The MXZ-SM36NL condenser is compatible with M-, P-Series, and CITY MULTI indoor units, while the wall-mounted air handlers are suitable for single or multi-zone configurations. The PAC-LMA50BC branch box ensures effective refrigerant management for up to five indoor units, enhancing overall system performance.
