Mitsubishi Multi-Zone 36000 BTU R-454B 20 SEER2 4-Zone Wall-Mounted Mini Split Heat Pump System - 6K+6K+9K+9K

Description

This comprehensive HVAC bundle features top-of-the-line Mitsubishi Electric products designed to provide efficient heating and cooling solutions for both residential and commercial applications. The MXZ-SM36NL Multi-Zone Heat Pump Condenser serves as the powerhouse, capable of supporting multiple indoor units for customized climate control. Complementing this are two wall-mounted air handlers, the MSZ-GX06NL and MSZ-GX09NL, which deliver optimal comfort in individual zones with advanced filtration and smart technology. To enhance system performance, the PAC-LMA50BC Branch Box efficiently manages refrigerant flow, ensuring seamless operation across all connected units. Together, these components create a versatile and energy-efficient HVAC system tailored to meet diverse needs.

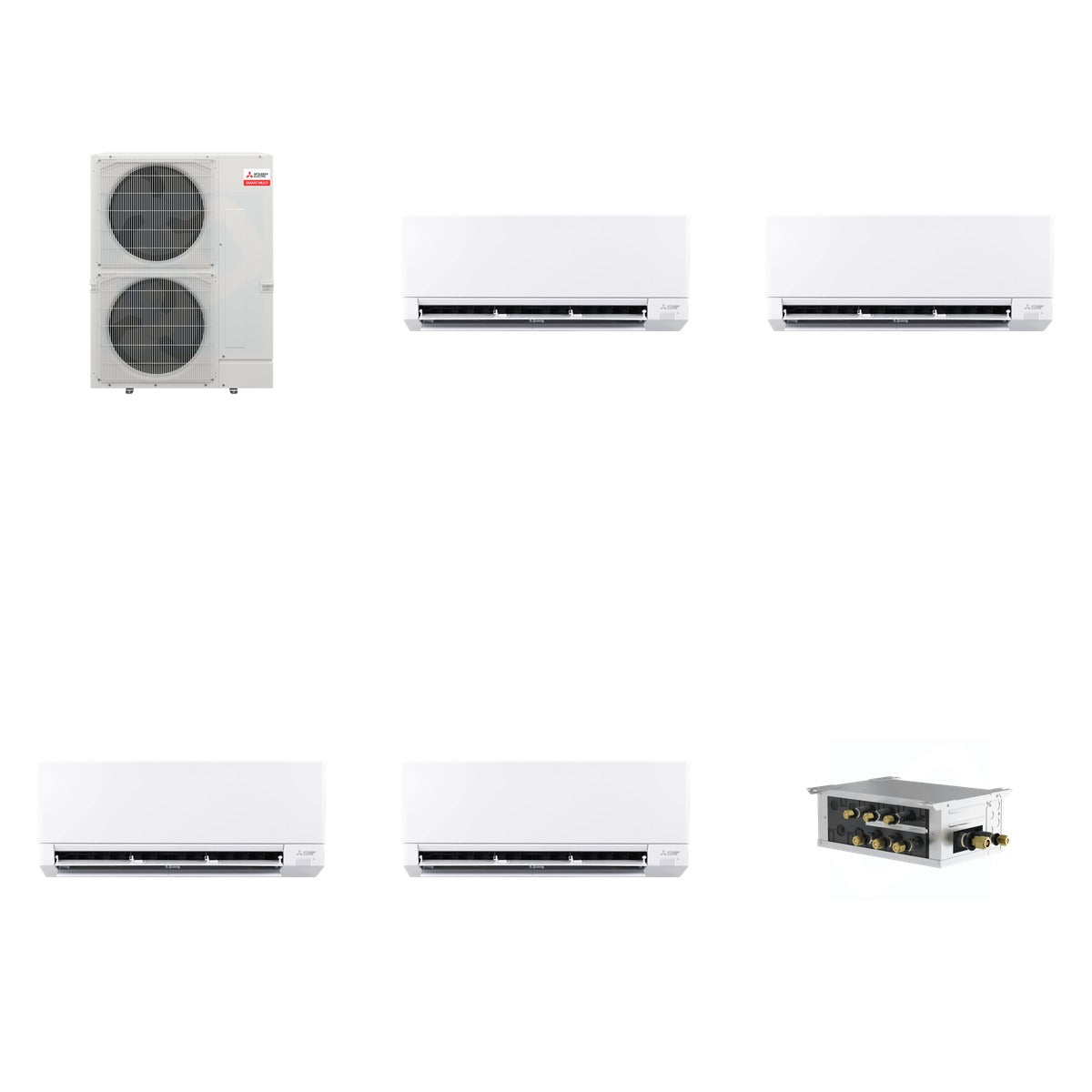

What's Included

• MITSUBISHI ELECTRIC MXZ-SM36NL - Mitsubishi Electric MXZ-SM36NL Multi-Zone Heat Pump Condenser (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX06NL - Mitsubishi Electric MSZ-GX06NL R454B 6k BTU Heat Pump Wall Mount Air Handler (Qty x2)
• MITSUBISHI ELECTRIC MSZ-GX09NL - Mitsubishi Electric MSZ-GX09NL R454B 9k BTU Heat Pump Wall Mount Air Handler (Qty x2)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)

Key Details

• Weight of Bundle: 256 lb (Mitsubishi 161 lb + Mitsubishi 44 lb + Mitsubishi 44 lb + Mitsubishi 7 lb)
• Cooling Capacity: 36,000 BTU (MXZ-SM36NL)
• Heating Capacity: 41,000 BTU (MXZ-SM36NL)
• Indoor Units: 4 zones (with branch box) or 11 zones (without branch box)
• SEER2: Up to 28.4 (MSZ-GX06NL & MSZ-GX09NL)
• Refrigerant Type: R454B
• Voltage: 208/230 Volts
• Branch Box Ports: 5 (PAC-LMA50BC)
• Dimensions: 41-11/32 W x 13 D x 52-11/16 H (MXZ-SM36NL)

Use & Compatibility

This HVAC bundle is ideal for both residential and commercial applications, providing efficient heating and cooling across multiple zones. The MXZ-SM36NL condenser is compatible with M-, P-Series, and CITY MULTI indoor units, while the MSZ-GX06NL and MSZ-GX09NL air handlers are designed for single or multi-zone configurations. The PAC-LMA50BC branch box enhances the system's versatility by managing refrigerant flow to up to five indoor units, ensuring optimal performance and comfort.
