Mitsubishi Multi-Zone 36000 BTU R-454B 20 SEER2 4-Zone Wall-Mounted Mini Split Heat Pump System - 6K+6K+6K+15K

Description

This comprehensive HVAC bundle is designed for optimal climate control in residential and commercial spaces. Featuring the Mitsubishi Electric MXZ-SM36NL Multi-Zone Heat Pump Condenser, this system allows for customized heating and cooling across multiple zones, accommodating up to 11 indoor units without a branch box. The included MSZ-GX06NL and MSZ-GX15NL wall-mounted air handlers provide efficient heating and cooling for spaces up to 250 and 750 square feet respectively. With advanced filtration systems and built-in Wi-Fi for smart control, this bundle ensures comfort and convenience. The PAC-LMA50BC branch box facilitates seamless refrigerant management, making this bundle a complete solution for your HVAC needs.

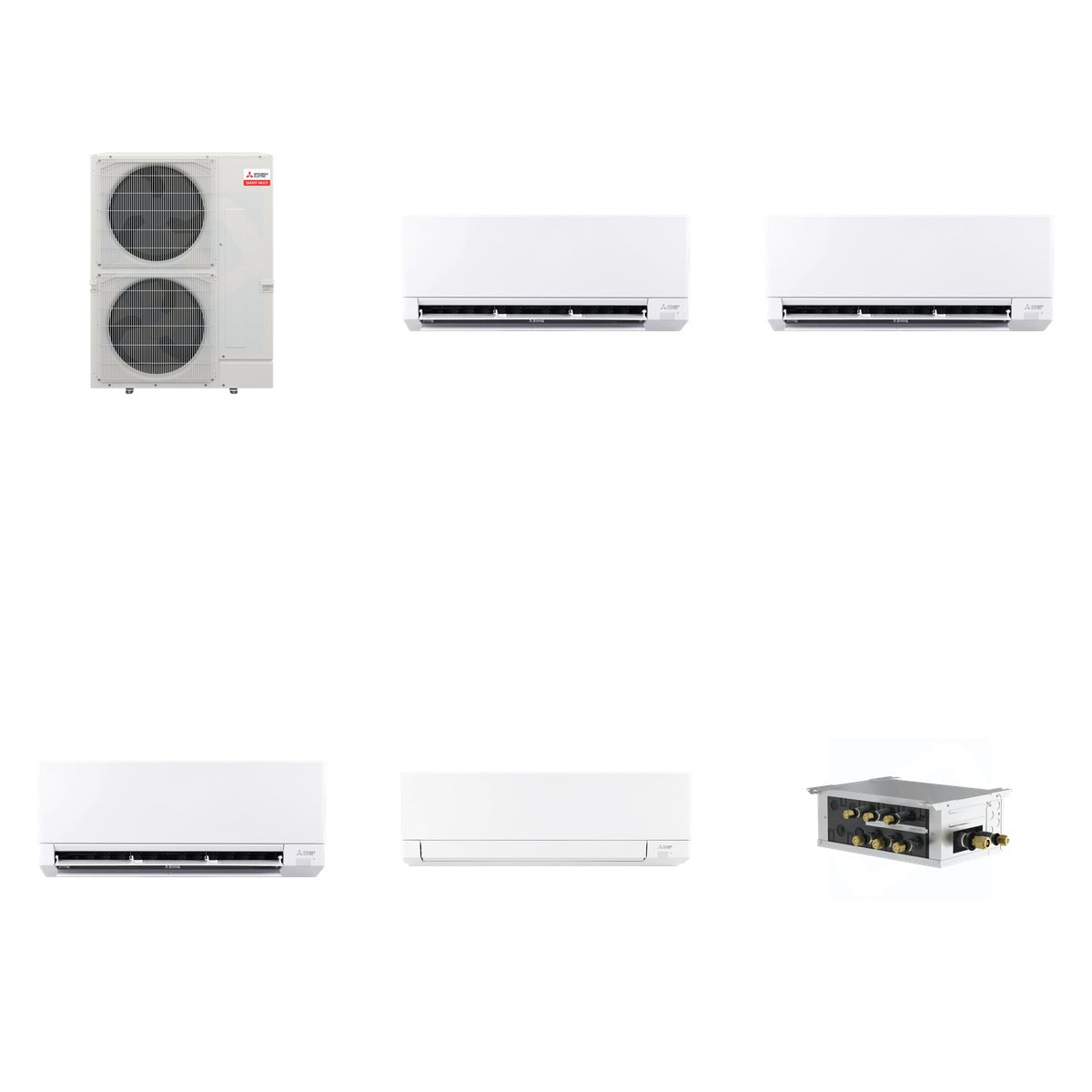

What's Included

• MITSUBISHI ELECTRIC MXZ-SM36NL - Multi-Zone Heat Pump Condenser (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX06NL - R454B 6k BTU Heat Pump Wall Mount Air Handler (Qty x3)
• MITSUBISHI ELECTRIC MSZ-GX15NL - R454B 15k BTU Heat Pump Wall Mount Air Handler (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - 5-Port Branch Box (Qty x1)

Key Details

• Weight of Bundle: 256 lb (Mitsubishi 161 lb + Mitsubishi 66 lb + Mitsubishi 22 lb + Mitsubishi 7 lb)
• Cooling Capacity: 36,000 BTU (MXZ-SM36NL)
• Heating Capacity: 41,000 BTU (MXZ-SM36NL)
• SEER2: 23 (MXZ-SM36NL)
• Heating Capacity: 7,200 BTU (MSZ-GX06NL)
• Cooling Capacity: 15,000 BTU (MSZ-GX15NL)
• Multi-Zone Compatibility: Yes
• Refrigerant Type: R454B
• Voltage: 208/230 Volts
• Dimensions (MXZ-SM36NL): 41-11/32 W x 13 D x 52-11/16 H
• Dimensions (MSZ-GX06NL): 31-19/48 W x 9-31/48 D x 11-37/48 H
• Dimensions (MSZ-GX15NL): 31.40 W x 9.65 D x 11.77 H
• Branch Box Ports: 5 (PAC-LMA50BC)

Use & Compatibility

This bundle is ideal for creating a multi-zone climate control system, suitable for both residential and commercial applications. The MXZ-SM36NL condenser works seamlessly with the MSZ-GX06NL and MSZ-GX15NL air handlers, allowing for efficient heating and cooling across various spaces. The PAC-LMA50BC branch box enhances refrigerant management, making it a perfect addition for installations requiring multiple indoor units.
