Mitsubishi Multi-Zone 36000 BTU R-454B 20 SEER2 4-Zone Wall-Mounted Mini Split Heat Pump System - 6K+6K+15K+18K

Description

This comprehensive HVAC bundle is designed for those seeking efficient heating and cooling solutions across multiple zones. Featuring the Mitsubishi Electric MXZ-SM36NL Multi-Zone Heat Pump Condenser, this bundle allows for customized climate control in residential or commercial spaces. Paired with three advanced wall-mounted air handlers (MSZ-GX06NL, MSZ-GX15NL, and MSZ-GX18NL), this setup ensures optimal comfort and air quality. The included PAC-LMA50BC branch box facilitates seamless refrigerant management, making it an ideal choice for both new installations and upgrades.

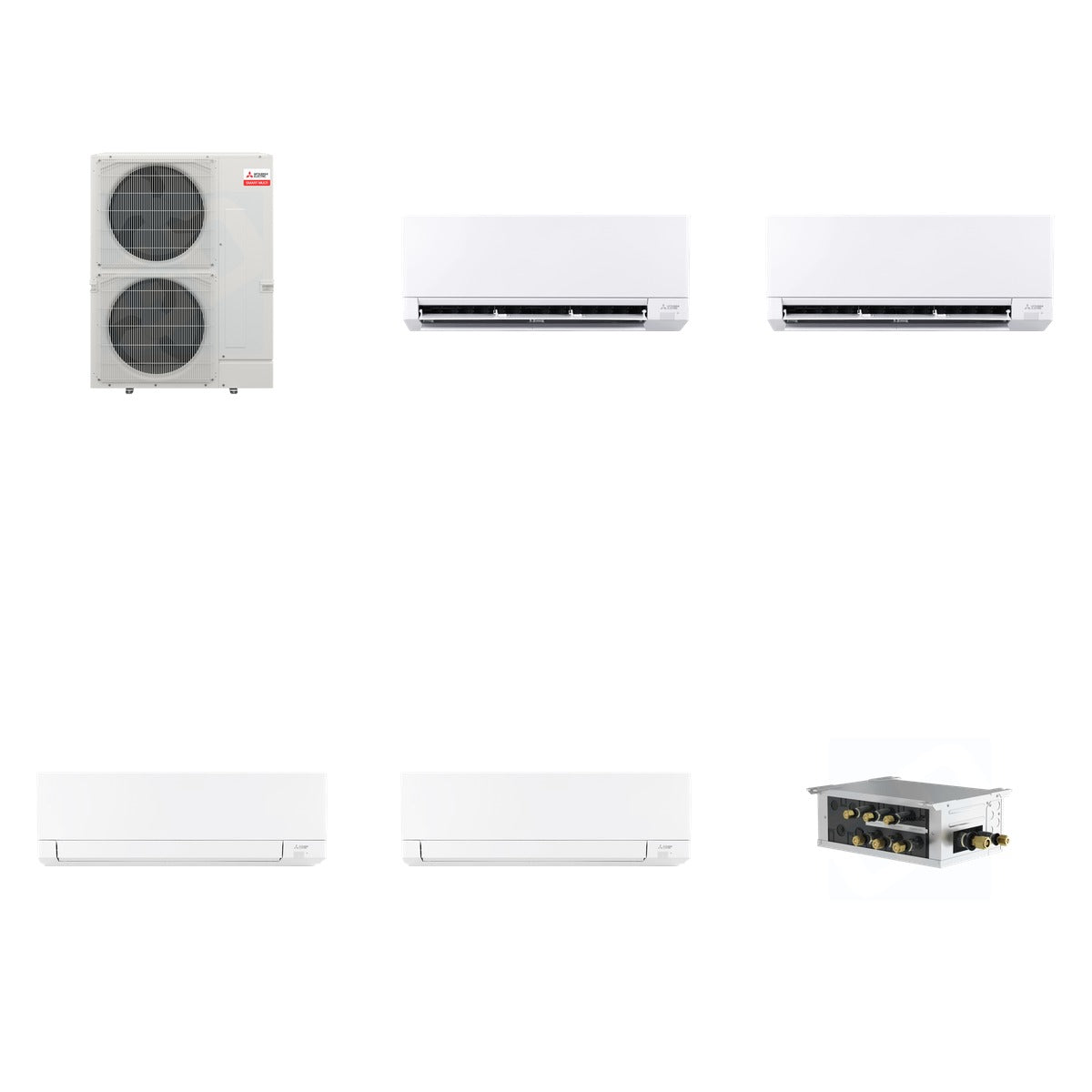

What's Included

• MITSUBISHI ELECTRIC MXZ-SM36NL - Multi-Zone Heat Pump Condenser (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX06NL - R454B 6k BTU Heat Pump Wall Mount Air Handler (Qty x2)
• MITSUBISHI ELECTRIC MSZ-GX15NL - R454B 15k BTU Heat Pump Wall Mount Air Handler (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX18NL - R454B 18k BTU Heat Pump Wall Mount Air Handler (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - 5-Port Branch Box (Qty x1)

Key Details

• Weight of Bundle: 262 lb (Mitsubishi 161 lb + Mitsubishi 44 lb + Mitsubishi 22 lb + Mitsubishi 28 lb + Mitsubishi 7 lb)
• Cooling Capacity: Up to 36,000 BTU
• Heating Capacity: Up to 41,000 BTU
• SEER2: 23 (MXZ-SM36NL), Up to 28.4 (MSZ-GX06NL)
• Refrigerant Type: R454B
• Voltage: 208/230 Volts
• Dimensions (MXZ-SM36NL): 41-11/32 W x 13 D x 52-11/16 H
• Dimensions (MSZ-GX06NL): 31 19/48 W x 9 31/48 D x 11 37/48 H
• Dimensions (MSZ-GX15NL): 31.40 W x 9.65 D x 11.77 H
• Dimensions (MSZ-GX18NL): 43 5/16 W x 10 1/8 D x 12 13/16 H

Use & Compatibility

This bundle is perfect for residential or commercial applications requiring efficient heating and cooling across multiple zones. The MXZ-SM36NL condenser supports up to 11 indoor units without a branch box, while the included air handlers are compatible with single and multi-zone configurations. The PAC-LMA50BC branch box ensures optimal refrigerant flow, making it suitable for various setups.
