Mitsubishi Multi-Zone 36000 BTU R-454B 20 SEER2 4-Zone Wall-Mounted Mini Split Heat Pump System - 6K+12K+12K+12K

Description

This comprehensive HVAC bundle features a Mitsubishi Electric MXZ-SM36NL Multi-Zone Heat Pump Condenser, three wall-mounted air handlers (MSZ-GX06NL and MSZ-GX12NL), and a PAC-LMA50BC 5-Port Branch Box. The MXZ-SM36NL serves as the powerful outdoor unit capable of efficiently heating and cooling multiple zones, while the MSZ-GX06NL and MSZ-GX12NL air handlers provide tailored comfort for individual spaces. The branch box ensures optimal refrigerant flow, making this bundle perfect for both residential and commercial applications where customized climate control is essential.

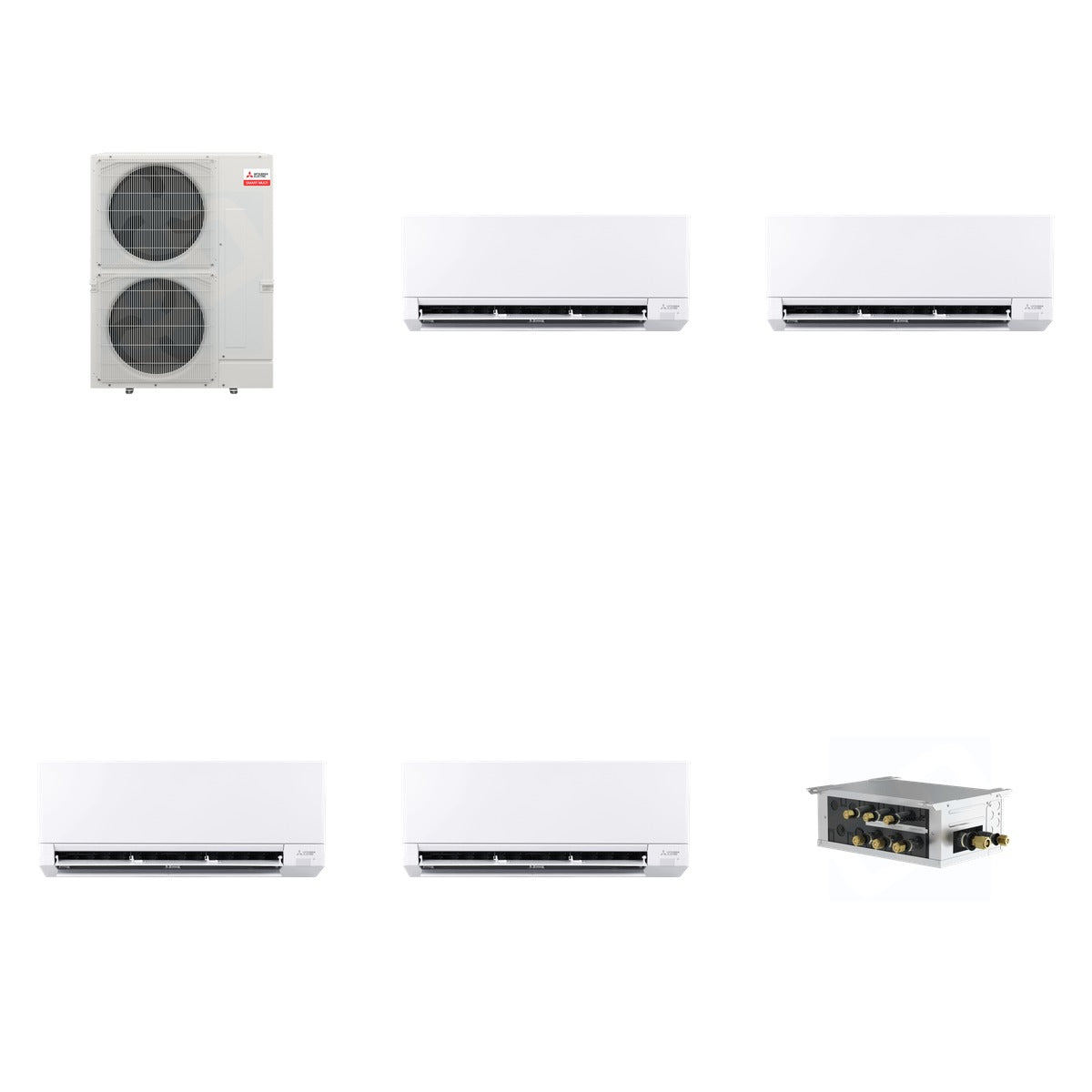

What's Included

• MITSUBISHI ELECTRIC MXZ-SM36NL - Multi-Zone Heat Pump Condenser (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX06NL - R454B 6k BTU Heat Pump Wall Mount Air Handler (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX12NL - R454B 12k BTU Heat Pump Wall Mount Air Handler (Qty x3)
• MITSUBISHI ELECTRIC PAC-LMA50BC - 5-Port Branch Box (Qty x1)

Key Details

• Weight of Bundle: 256 lb (Mitsubishi 161 lb + Mitsubishi 22 lb + Mitsubishi 66 lb + Mitsubishi 7 lb)
• Cooling Capacity: 36,000 BTU (MXZ-SM36NL), 6,000 BTU (MSZ-GX06NL), 12,000 BTU (MSZ-GX12NL)
• Heating Capacity: 41,000 BTU (MXZ-SM36NL), 7,200 BTU (MSZ-GX06NL), 14,400 BTU (MSZ-GX12NL)
• SEER2: 23 (MXZ-SM36NL), Up to 28.4 (MSZ-GX06NL & MSZ-GX12NL)
• Refrigerant: R454B
• Voltage: 208/230 Volts
• Dimensions: MXZ-SM36NL - 41-11/32 W x 13 D x 52-11/16 H; MSZ-GX06NL - 31-19/48 W x 9-31/48 D x 11-37/48 H; MSZ-GX12NL - 31-39/48 W x 9-65/100 D x 11-77/100 H
• Noise Level: As low as 19 dB(A) for MSZ-GX units
• Multi-Zone Capability: Up to 4 zones (with branch box) or 11 zones (without)

Use & Compatibility

This bundle is designed for multi-zone heating and cooling applications, making it ideal for residential and commercial spaces requiring individual climate control. The MXZ-SM36NL condenser is compatible with M-, P-Series, and CITY MULTI indoor units, while the MSZ-GX air handlers can be used in single or multi-zone configurations. The included branch box facilitates efficient refrigerant management, ensuring optimal performance across all connected units.
