Mitsubishi Multi-Zone 36000 BTU R-454B 20 SEER2 4-Zone Wall-Mounted Hyper Heat Mini Split Heat Pump System - 9K+9K+12K+15K

Description

This comprehensive bundle includes everything you need for an efficient and customizable heating and cooling solution for your home or business. The Mitsubishi Electric MXZ-SM36NL Multi-Zone Heat Pump Condenser serves as the powerhouse, allowing for up to 11 zones of climate control when paired with the included MSZ-FX09NL, MSZ-FX12NL, and MSZ-FX15NL wall-mounted air handlers. Each air handler features advanced filtration and smart technology for optimal comfort and air quality. The PAC-LMA50BC branch box ensures seamless refrigerant flow management, making this bundle perfect for multi-zone applications.

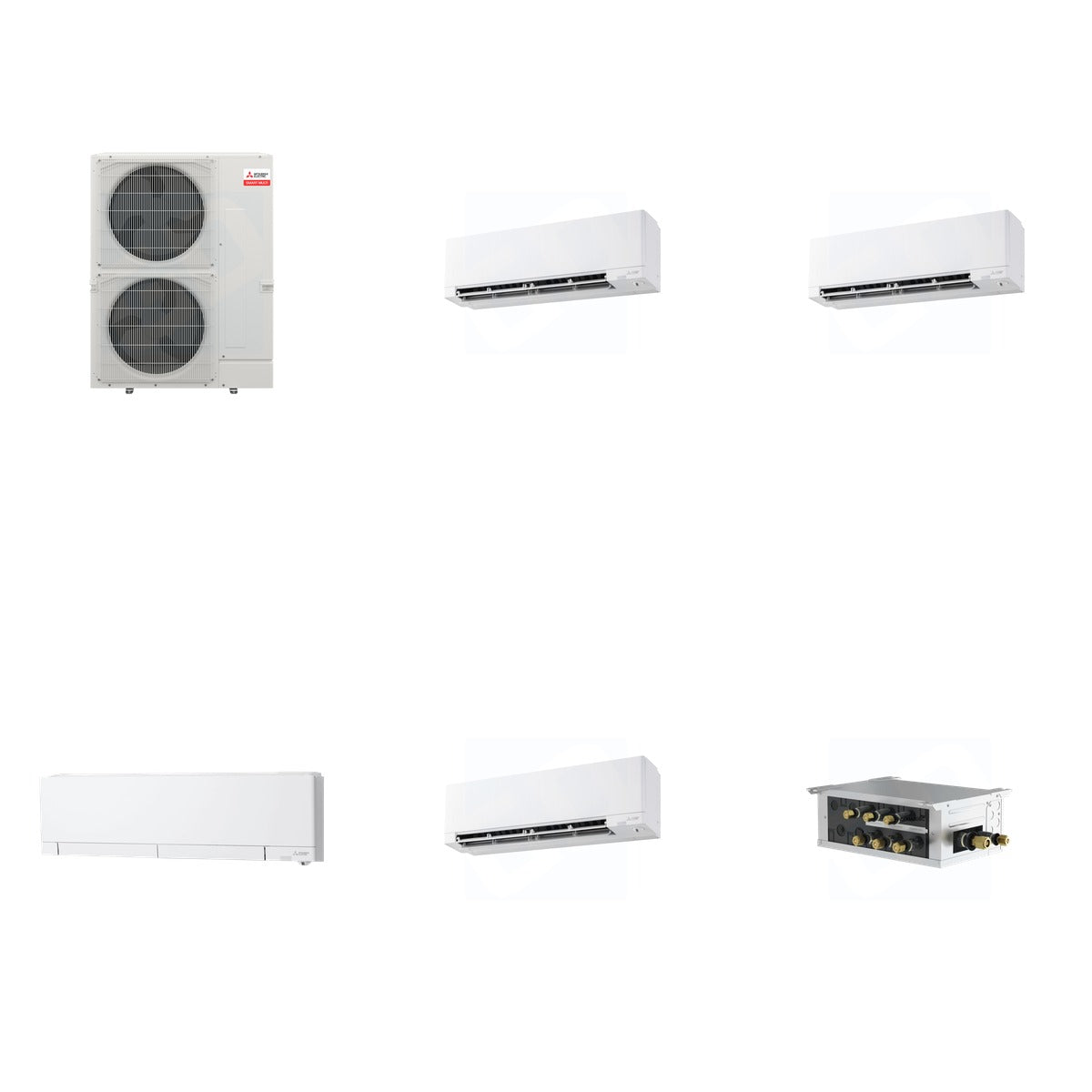

What's Included

• MITSUBISHI ELECTRIC MXZ-SM36NL - Multi-Zone Heat Pump Condenser (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX09NL - FX-Series Wall Mounted Unit 9k BTU (Qty x2)
• MITSUBISHI ELECTRIC MSZ-FX12NL - FX-Series Wall Mounted Unit 12k BTU (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX15NL - FX-Series Wall Mounted Unit 15k BTU (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - 5-Port Branch Box (Qty x1)

Key Details

• Weight of Bundle: 313.6 lb (Mitsubishi 161 lb + Mitsubishi 72.8 lb + Mitsubishi 36.4 lb + Mitsubishi 36.4 lb + Mitsubishi 7 lb)
• Cooling Capacity: 36,000 BTU (MXZ-SM36NL)
• Heating Capacity: 41,000 BTU (MXZ-SM36NL)
• SEER2 Rating: Up to 35 (MSZ-FX12NL)
• HSPF2 Rating: Up to 13.3 (MSZ-FX12NL)
• Voltage: 208/230 Volts
• Refrigerant Type: R-454B
• Dimensions (MXZ-SM36NL): 41-11/32 W x 13 D x 52-11/16 H
• Dimensions (MSZ-FX09NL): 39.27 W x 9.75 D x 12 H
• Dimensions (MSZ-FX12NL): 39.27 W x 9.75 D x 12 H
• Dimensions (MSZ-FX15NL): 39-9/32 W x 9-3/4 D x 12 H
• Branch Box Ports: 5 (PAC-LMA50BC)

Use & Compatibility

This bundle is designed for residential and commercial applications requiring efficient heating and cooling across multiple zones. The MXZ-SM36NL condenser is compatible with M-, P-Series, and CITY MULTI indoor units, while the included wall-mounted units provide flexible installation options and smart features for enhanced comfort.
